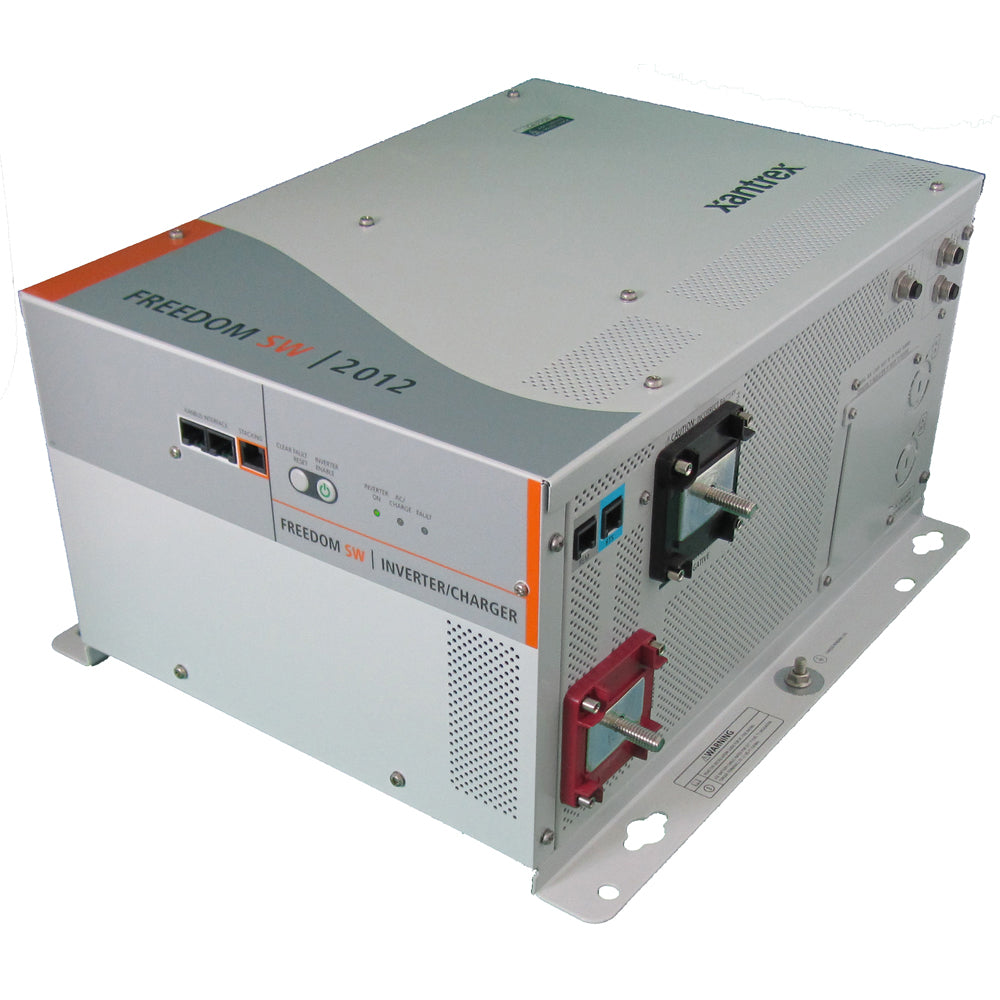

Xantrex Freedom SW2012 12V 2000W Inverter/Charger [815-2012]

Xantrex Freedon SW2012 Inverter/Charger815-201212V, 2000W - 120 Vac / 60 HzPowerful. Configurable. Versatile... The Freedom SW series represents highly sophisticated and advanced inverter/ chargers available in 3000 W with 150 A charger and 2000 W with 100 A charger models. Product DescriptionThe second generation 2000 watt model has been completely redesigned to include many of the same great features found in its high power counterpart.A key feature enhancement is 'Generator Support Mode' which enables the Freedom SW to supplement a generator when AC loads exceed the generator's capacity. The new generation models also feature improved AC transfer/AC input detection time, providing the ability to transfer AC loads to batteries in less than 10 milliseconds when the incoming grid or generator power is lost. Connected loads are almost unable to feel the power transition due to this quick transfer time. Both models are approved to UL458 with marine supplement, CSA, ABYC and FCC, Class B requirements.PARALLEL AND SERIES STACKINGParallel stacking enables the Freedom SW inverter/chargers to double the AC output in inverter mode. Series stacking enables the Freedom SW inverter/chargers to generate 120/240 V split phase output2 2 AC source must be split phase, requires Stacking Cable (part# 808-9005)ApplicationDesigned for a variety of mobile applications such as commercial, emergency and recreational vehicles, marine vessels, construction and military equipment.Product Features Pure sine wave output to operate sensitive electronics Advanced configuration options for customized applications Parallel and series stacking capability Built-in transfer switch automatically transfers between inverter power and incoming AC power Power factor corrected, multi-stage charger for fast, efficient charging Temperature compensated charging for a vareity of climate conditions Ignition lockout feature helps prevent unnecessary battery drain when the alternator is not providing power3 Wide operating temperature range: -4°F to 140°F (-20°C to 60°C) Conformal coated circuit boards for humid environments Dual input / Dual output AC interface for 3000 W model Ability to charge batteries drained to extremely low voltage Compatible with the Xantrex Automatic Generator Start4 (Part# 809-0915) 3When used with the remote panel4Sold separatelyProtection Features Battery over-voltage and under-voltage protection Over-temperature shutdown Automatic overload protection Short-circuit protection Integrated, resettable AC breakers WARNING: This product can expose you to chemicals including Diisononyl Phthalate (DINP) which is known to the State of California to cause cancer, and Di-isodecyl Phthalate (DIDP) which is known to the State of California to cause reproductive harm. For more information go to P65Warnings.ca.gov.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Specifications: Charger Output - Amps: 75a Charger Output Voltage: 12v Charging Banks: 1 Outlet Qty: Optional Inverter Output Voltage: 120v Inverter Input Voltage: 12v Charger Input - Voltage: 120v Inverter Cont. Output Wattage: 2000w Box Dimensions: 13"H x 18"W x 21"L WT: 61.7 lbs UPC: 715535897154 Quick Guide (pdf)Owner's Manual (pdf)
