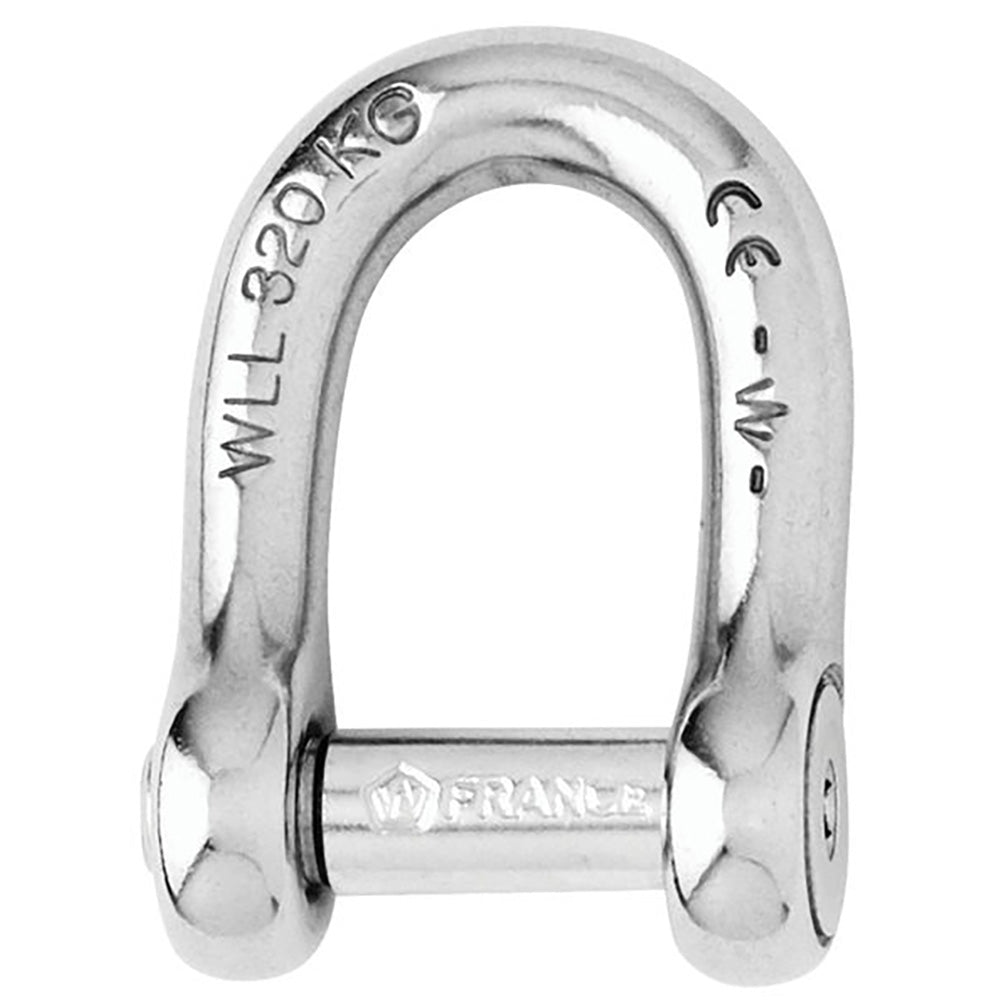

Wichard Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32" [01305]

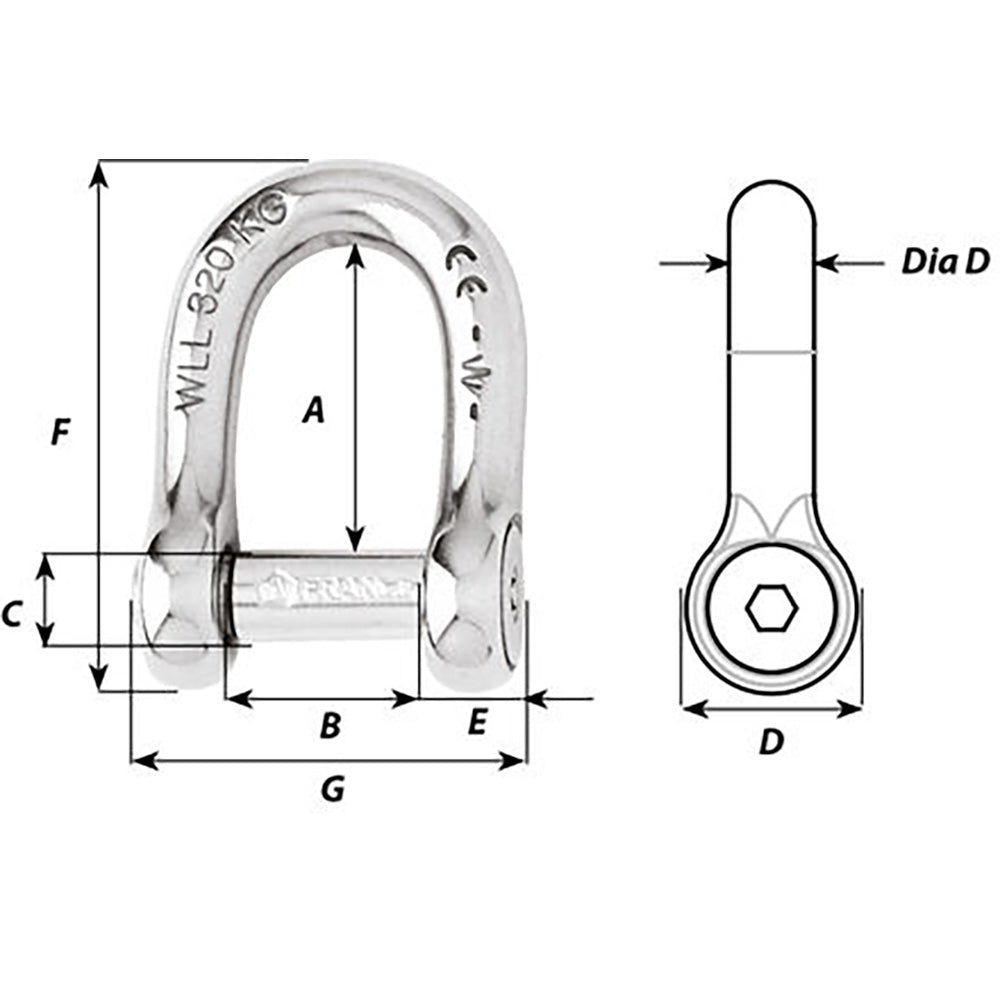

Self-Locking Allen Head Pin D Shackle - 10mm Diameter - 13/32"Features: Self-locking shackle with allen head pin D forged in grade 316L stainless steel The pin is locked into one of the indentations The head of the pin does not stick out from the shackle body and thus eliminates any risk of snagging No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Applications: Ideal for linking chains and anchor On the halyard, avoids damaging the sails To be used when the clutter is reduced Specifications: Materials: 316 stainless steel grade Working load: (lb) 3170 / (kg) 1440  WLL: (lb) 1890 / (kg) 860  Breaking load: (lb) 9470 / (kg) 4300  Weight: (lb) 0.218 / (g) 99  Dimensions: A: (inch) 1 19/64" / (mm) 33  B: (inch) 25/32" / (mm) 20  C: (inch) 25/64" / (mm) 10  D: (inch) 3/4" / (mm) 19  D diameter: (inch) 25/64" / (mm) 10  E: (inch) 23/64" / (mm) 9  F: (inch) 2 1/4" / (mm) 57  G: (inch) 1 39/64" / (mm) 41  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
