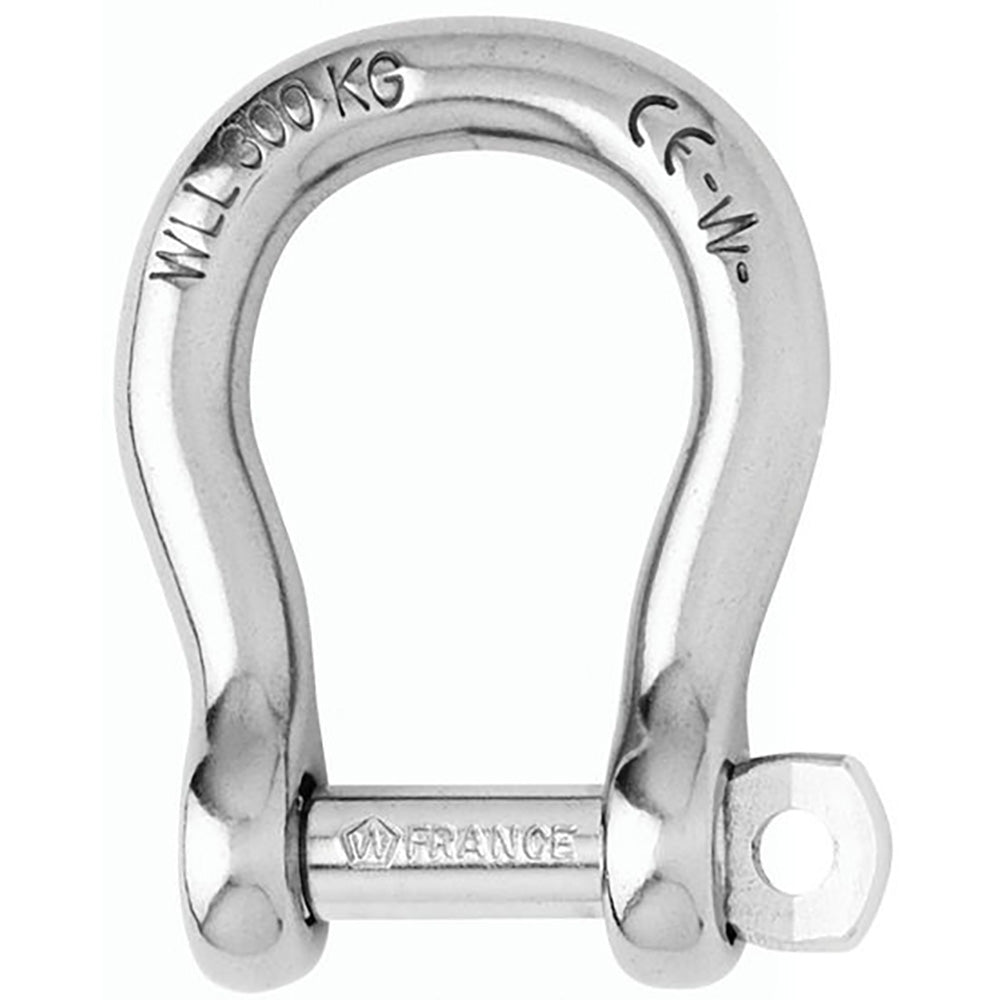

Wichard Not Self-Locking Bow Shackle - 16mm Diameter - 5/8" [01247]

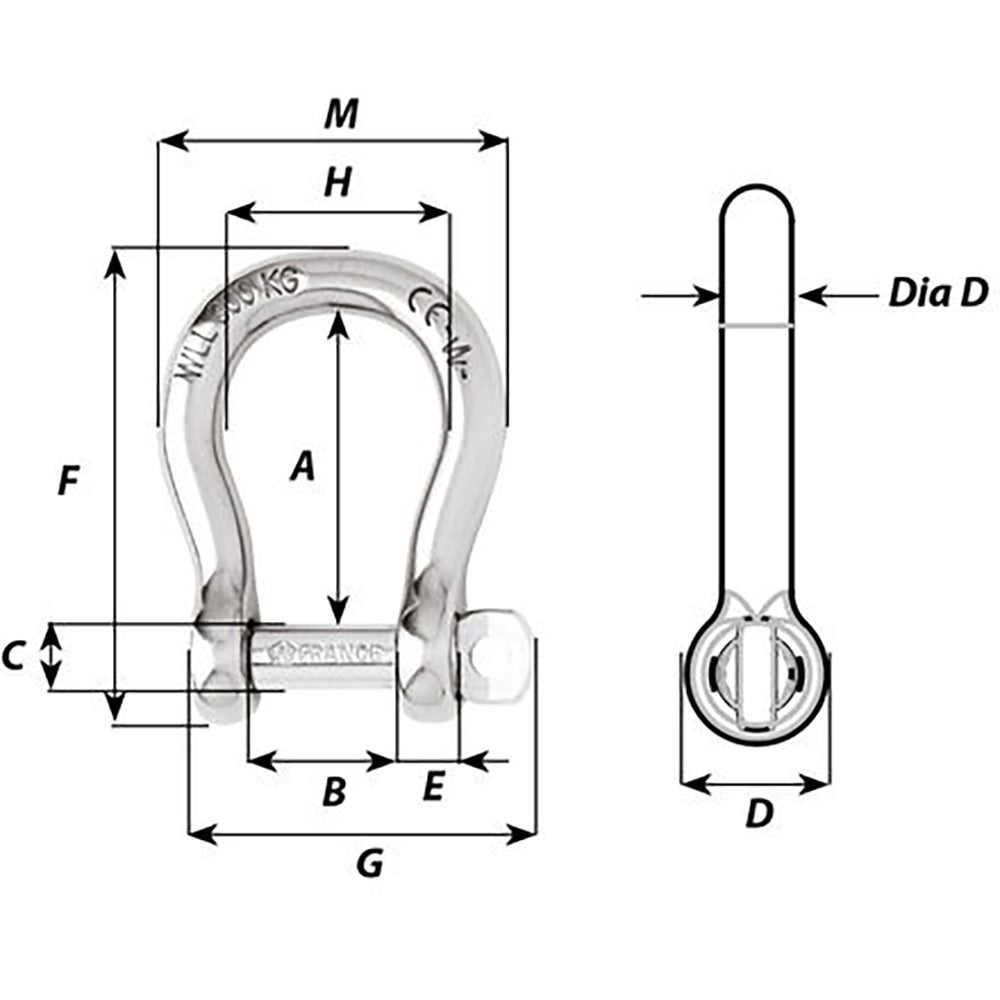

Not Self-Locking Bow Shackle - 16mm Diameter - 5/8"Features:  Bow shackle forged in grade 316L stainless steel The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads WLL: only for industrial applications (lifting i.e…) CE marking Part # 01247 is not self-locking   Applications:  To be used when ample room is required Possibility to attach several lines or cables Specifications:   Materials: 316 stainless steel grade Working load: (lb) 7050 / (kg) 3200  WLL: (lb) 4400 / (kg) 2000  Breaking load: (lb) 22040 / (kg) 10000  Weight: (lb) 1.19 / (g) 540 Dimensions:   A: (inch) 2 3/4" / (mm) 70  B: (inch) 1 17/64" / (mm) 32  C: (inch) 35/64" / (mm) 14  D: (inch) 1 17/64" / (mm) 14  D diameter: (inch) 5/8" / (mm) 16  E: (inch) 19/32" / (mm) 15  M: (inch) 3 11/32" / (mm) 85  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load.WLL = Breaking load / 5 *Sold as an Individual Quick Guide (pdf)
