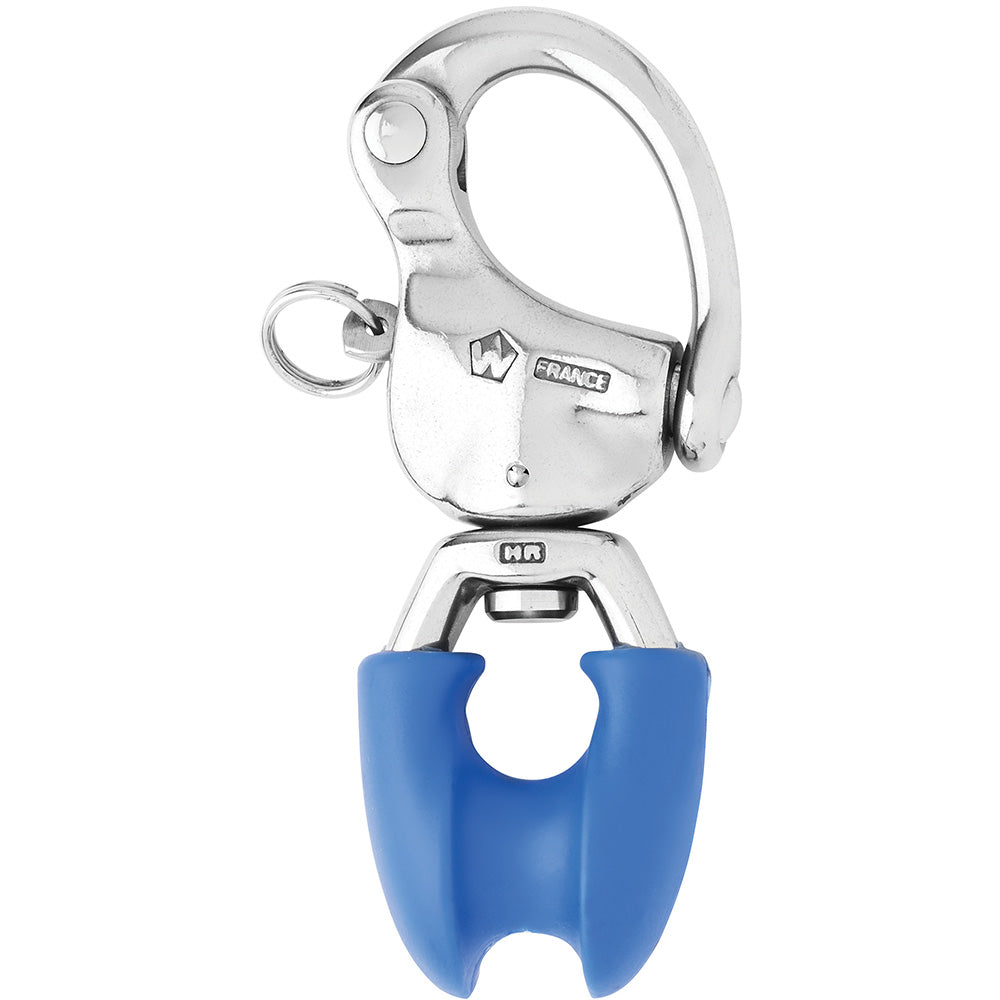

Wichard HR Snap Shackle w/Thimble Eye - Length 3-3/4" [02493]

HR Snap Shackle with Thimble Eye - Length 3-3/4"Features: HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye Allows to splice the halyard directly onto the snap shackle (without using a thimble) Avoids the wear of the ropes Free rotation of the snap shackle thanks to the swivel eye The plunger pin is set captive into the hook and cannot become detached Excellent working and breaking loads > Easy to open by pulling the plunger pin (possibility to attach a lanyard) Applications: Snap shackle applications Allows to splice the halyard Applications requiring a free rotation of the snap shackle (for a better sail orientation) Specifications: Materials HR 17.4 PH stainless steel grade Length (inch) 3 3/4" Working load (lb) 2110 Breaking load (lb) 4400 Weight (lb) 0.168 A (inch) 5/8" B (inch) 15/32"
SKU: PM-94390
Availability: 3 In Stock
$101.19
$136.91
$101.19
Subtotal: $101.19
10 customers are viewing this product
Wichard HR Snap Shackle w/Thimble Eye - Length 3-3/4" [02493]

Wichard HR Snap Shackle w/Thimble Eye - Length 3-3/4" [02493]

$136.91 $101.19

Wichard HR Snap Shackle w/Thimble Eye - Length 3-3/4" [02493]

$136.91 $101.19

HR Snap Shackle with Thimble Eye - Length 3-3/4"

Features:

  • HR Forged snap shackle (Grade 17.4 PH stainless steel) with thimble eye
  • Allows to splice the halyard directly onto the snap shackle (without using a thimble)
  • Avoids the wear of the ropes
  • Free rotation of the snap shackle thanks to the swivel eye
  • The plunger pin is set captive into the hook and cannot become detached
  • Excellent working and breaking loads > Easy to open by pulling the plunger pin (possibility to attach a lanyard)

Applications:

  • Snap shackle applications
  • Allows to splice the halyard
  • Applications requiring a free rotation of the snap shackle (for a better sail orientation)

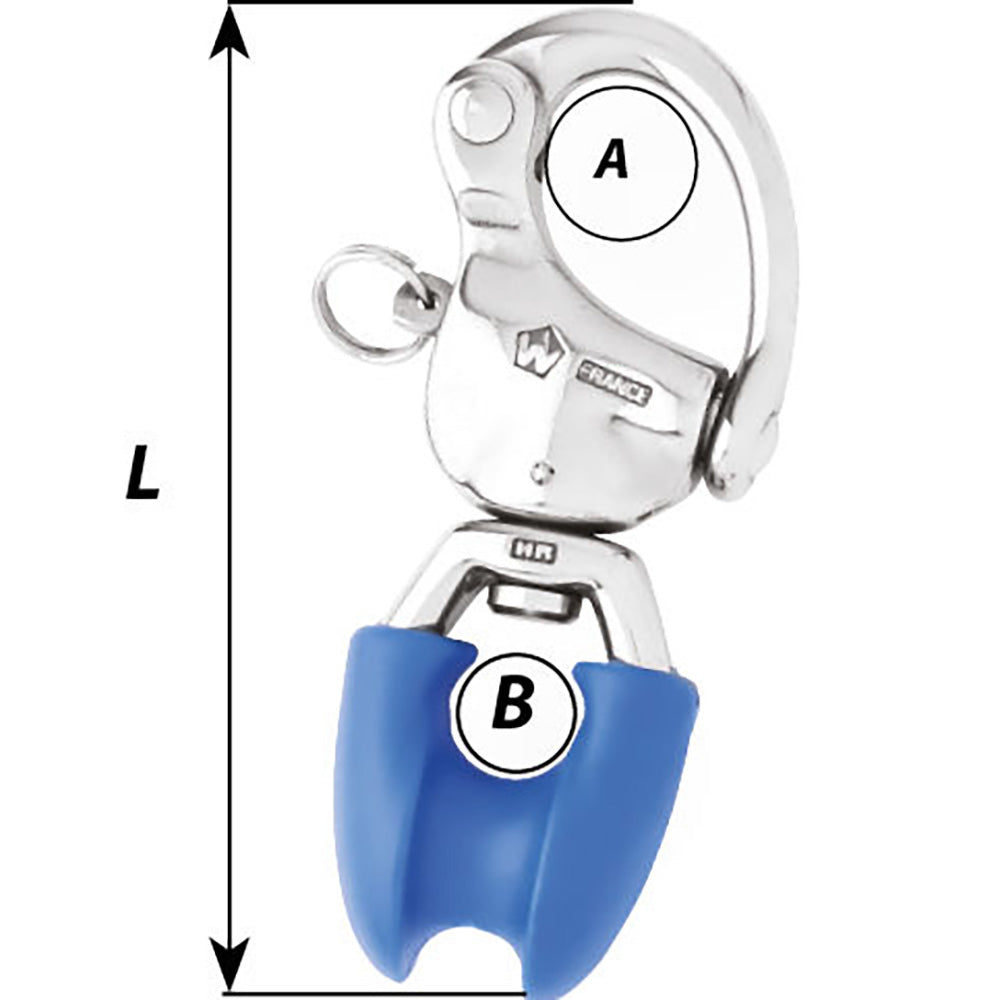

Specifications:

  • Materials HR 17.4 PH stainless steel grade
  • Length (inch) 3 3/4"
  • Working load (lb) 2110
  • Breaking load (lb) 4400
  • Weight (lb) 0.168
  • A (inch) 5/8"
  • B (inch) 15/32"
