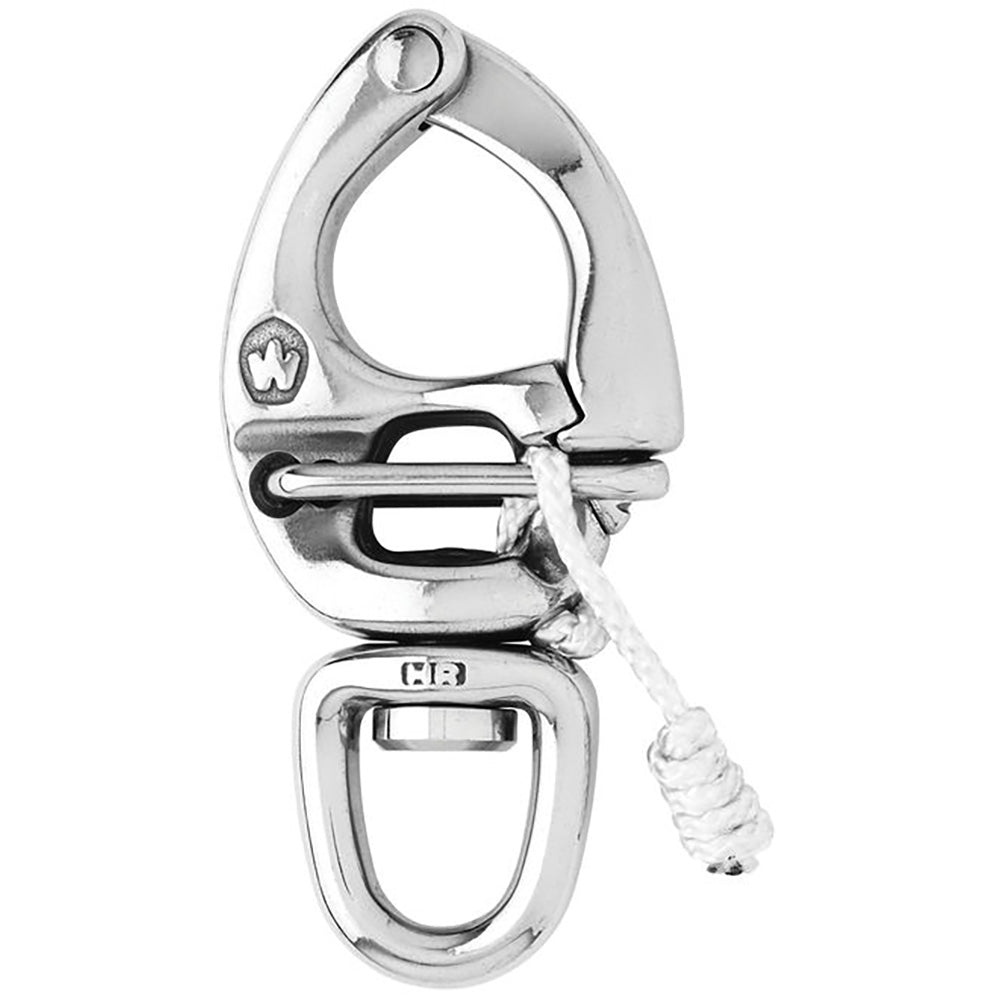

Wichard HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8" [02677]

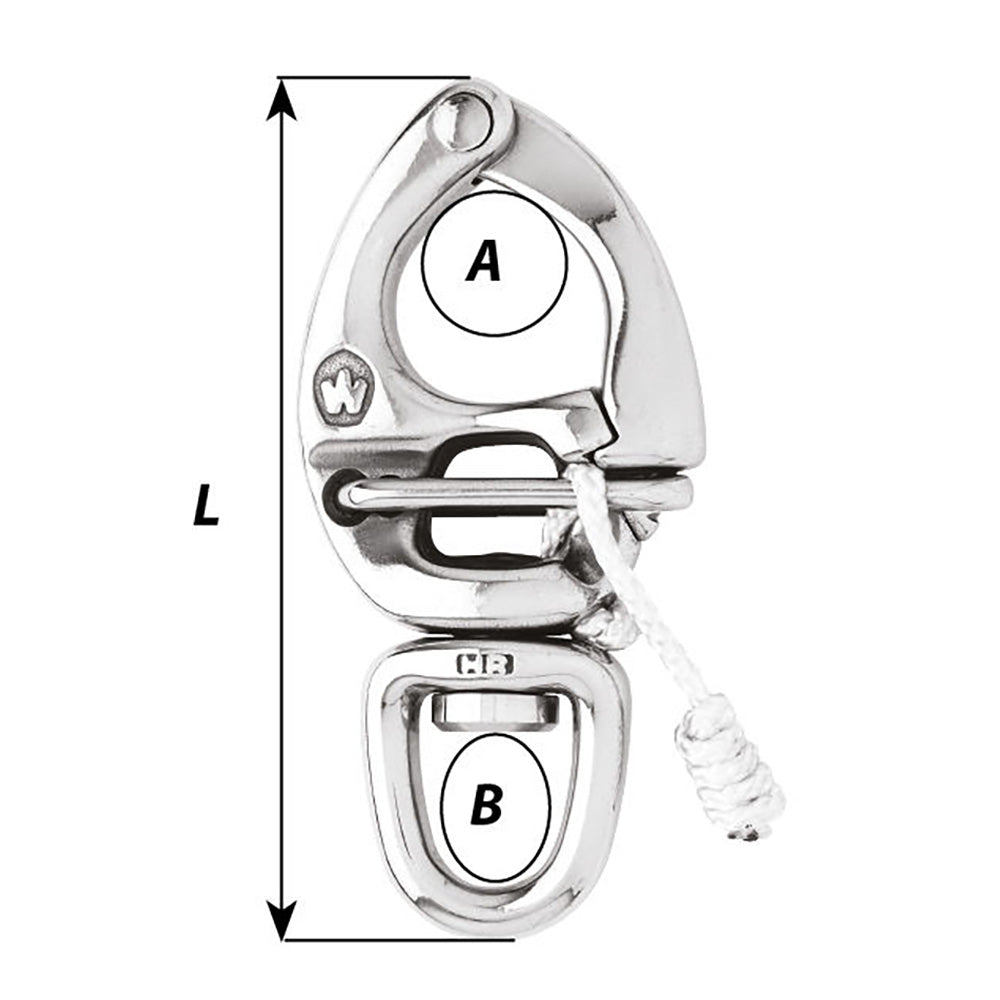

HR Quick Release Snap Shackle With Swivel Eye - 130mm Length - 5-1/8"Features: HR forged (17.4 PH) quick-release snap shackle with swivel eye The opening is made by pulling the lanyard Perfect to attach one sheet or halyard Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect for spinnaker sheets and halyards Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 7050 / (kg) 3200  Breaking load: (lb) 13880 / (kg) 6300  Weight: (lb) 0.818 / (g) 371  Dimensions: A: (inch) 1 3/16" / (mm) 30  B: (inch) 25/32" / (mm) 20  Length: (inch) 5 1/8" / (mm) 130  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
