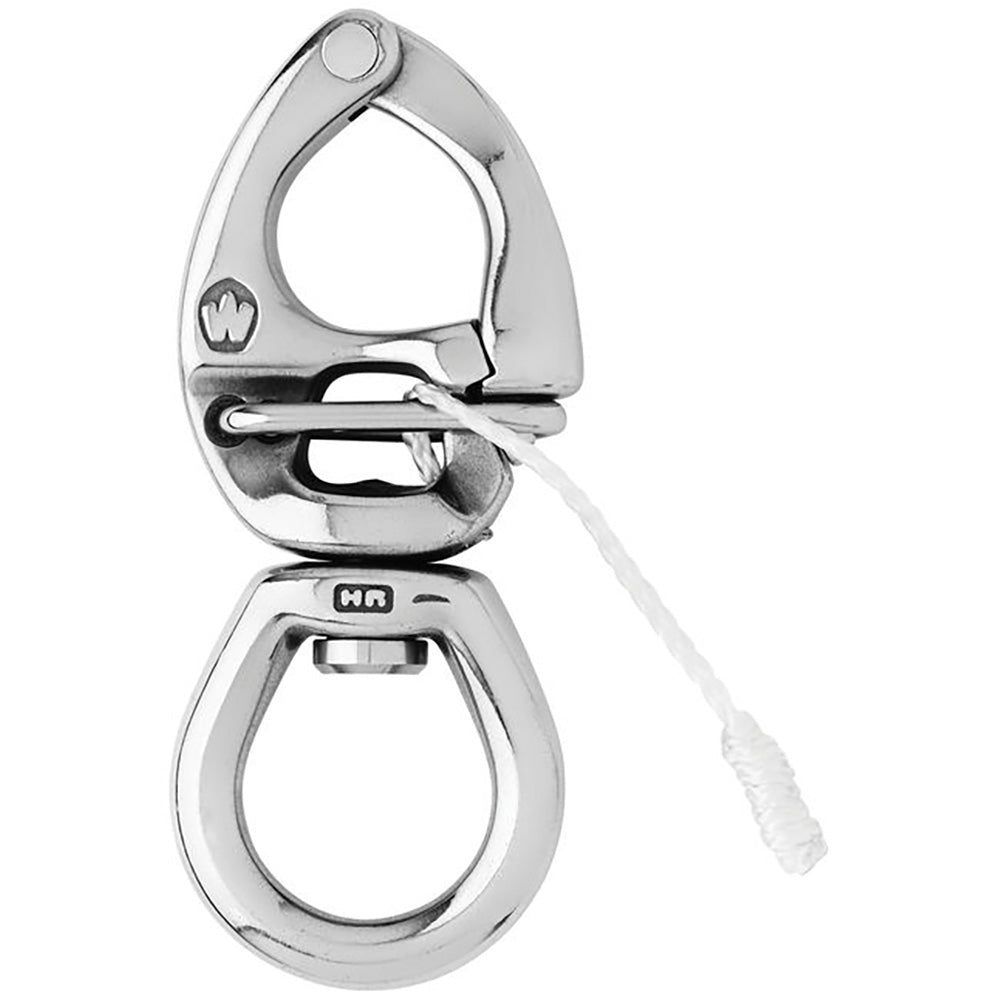

Wichard HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64" [02777]

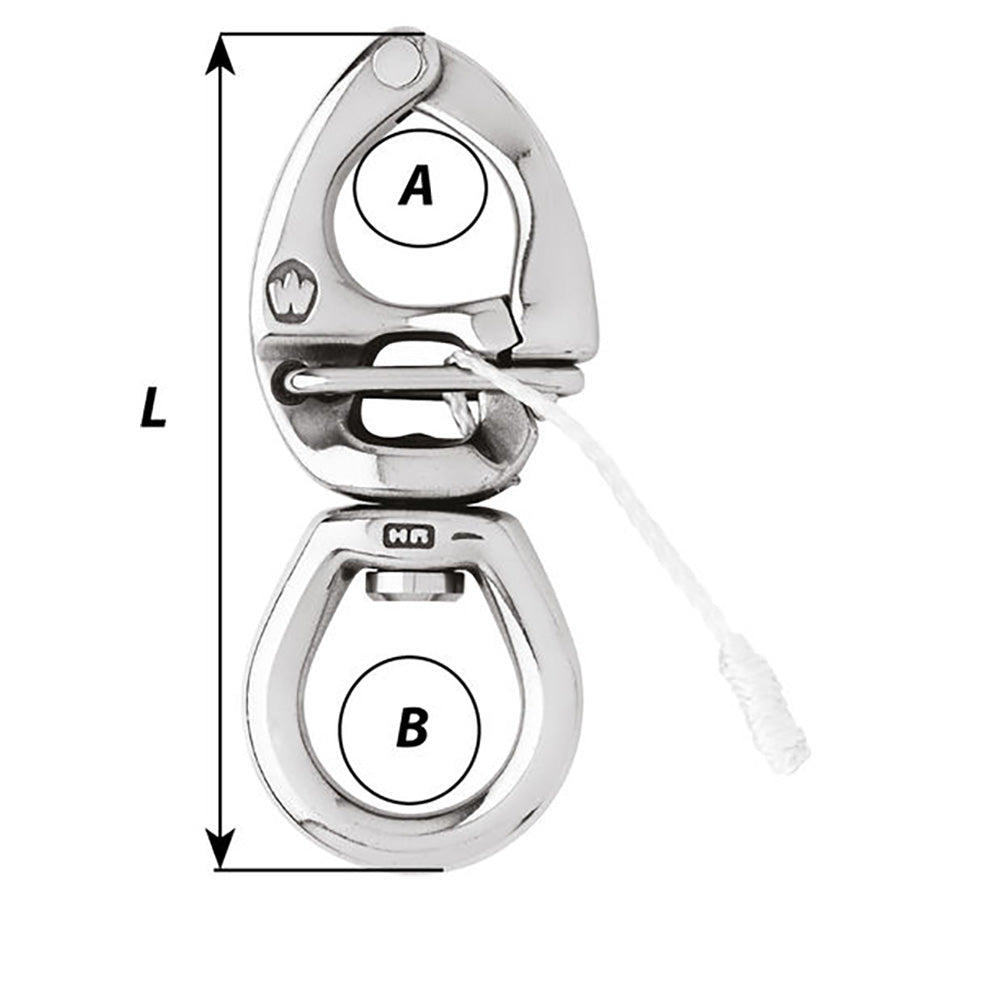

HR Quick Release Snap Shackle With Large Bail -145mm Length - 5-45/64"Features: HR forged (17.4 PH) quick-release snap shackle with large bail The opening is made by pulling the lanyard Perfect to attach several lines (spinnaker sheets...) Outstanding working and breaking loads Free rotation of the snap shackle thanks to the swivel Applications: For spinnaker operations Perfect to attach several lines: spinnaker sheets... Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 6170 / (kg) 2800  Breaking load: (lb) 13880 / (kg) 6300  Weight: (lb) 0.873 / (g) 396  Dimensions: A: (inch) 1 3/16" / (mm) 30  B: (inch) 1 25/64" / (mm) 35.5  Length: (inch) 5 45/64" / (mm) 145  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
