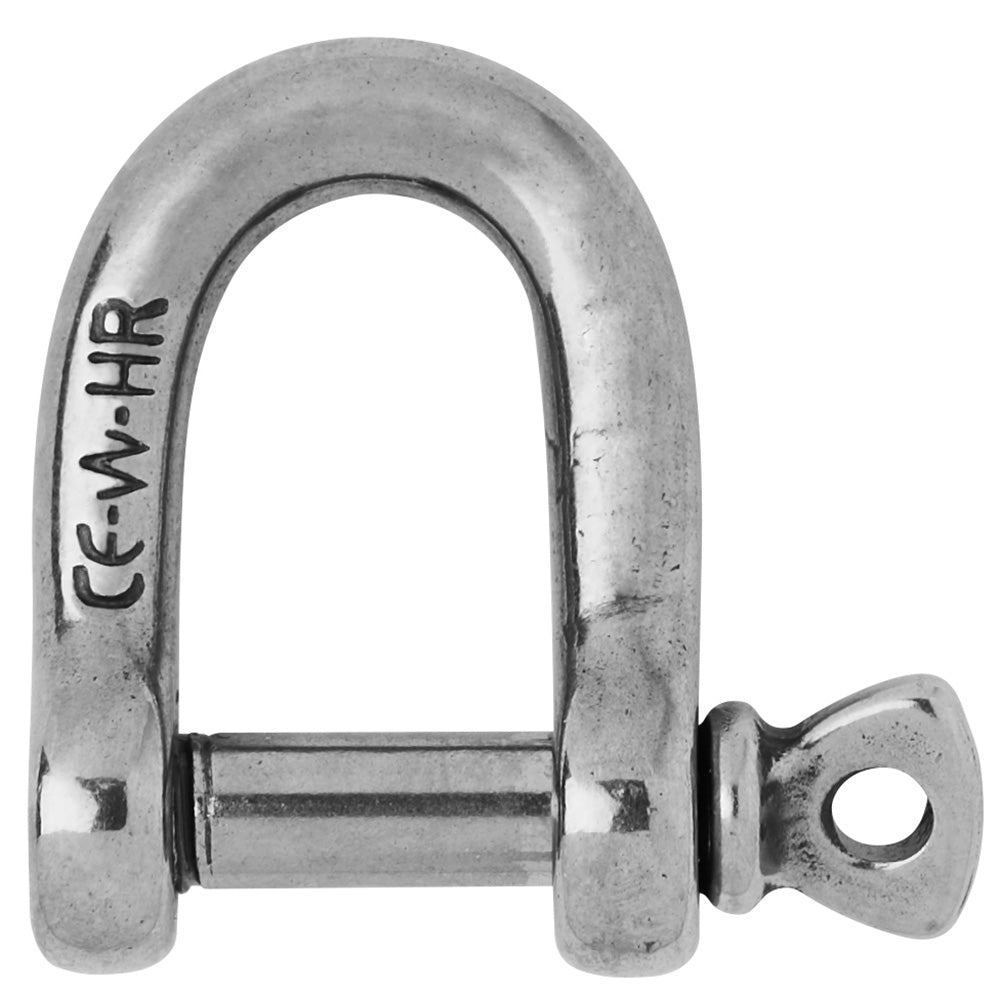

Wichard HR D Shackle - Diameter 15/64" [11203]

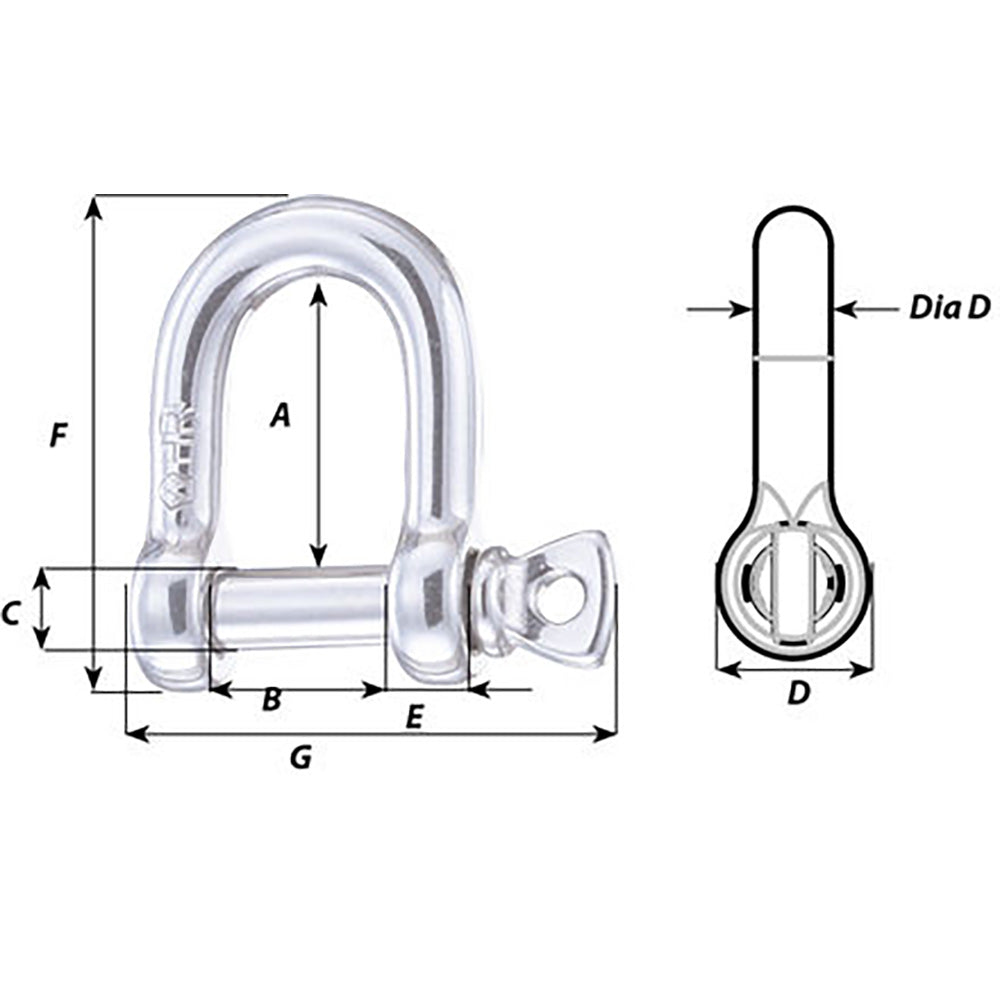

HR D Shackle - Diameter 15/64"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking and batch number Applications Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head Do not use it for mooring applications Specifications: Materials HR 17.4 PH stainless steel grade Working load (lb) 2290 WLL (lb) 1010 Breaking load (lb) 5070 Weight (lb) 0.053 A (inch) 25/32" B (inch) 15/32" C (inch) 15/64" D (inch) 5/8" D diameter (inch) 15/64" E (inch) 9/32" F (inch) 1 13/16" G (inch) 1 13/16"
