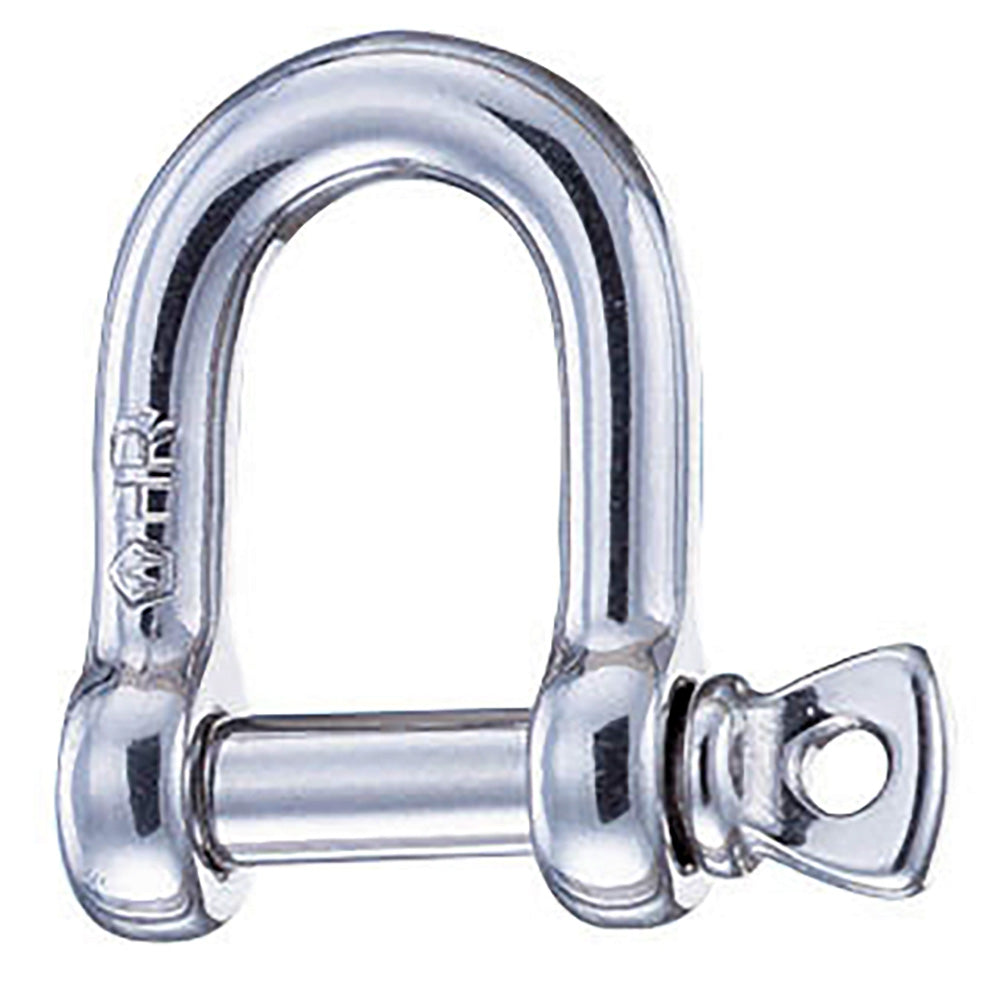

Wichard HR D Shackle - 20mm Diameter - 25/32" [11209]

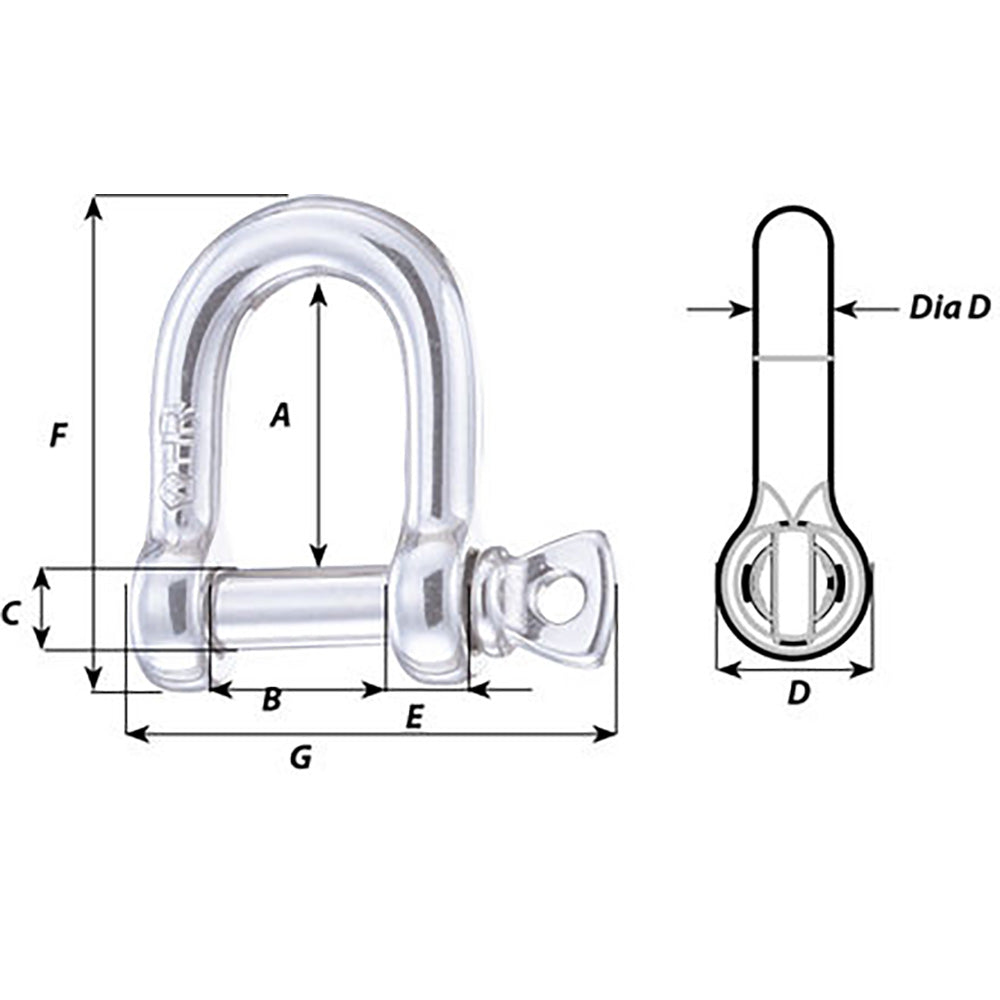

HR D Shackle - 20mm Diameter - 25/32"Features: Forged D shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads Standard applications of the shackle Attachment applications: blocks, head … Do not use it for mooring applications Specifications: Materials: HR 17.4 PH stainless steel grade Working load: (lb) 19400 / (kg) 8800  WLL: (lb) 12340 / (kg) 5600  Breaking load: (lb) 61720 / (kg) 28000  Weight: (lb) 1.896 / (g) 860  Dimensions: A: (inch) 2 3/4" / (mm) 70  B: (inch) 1 37/64" / (mm) 40  D diameter: (inch) 25/32" / (mm) 20  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) *Sold as an Individual Quick Guide (pdf)
