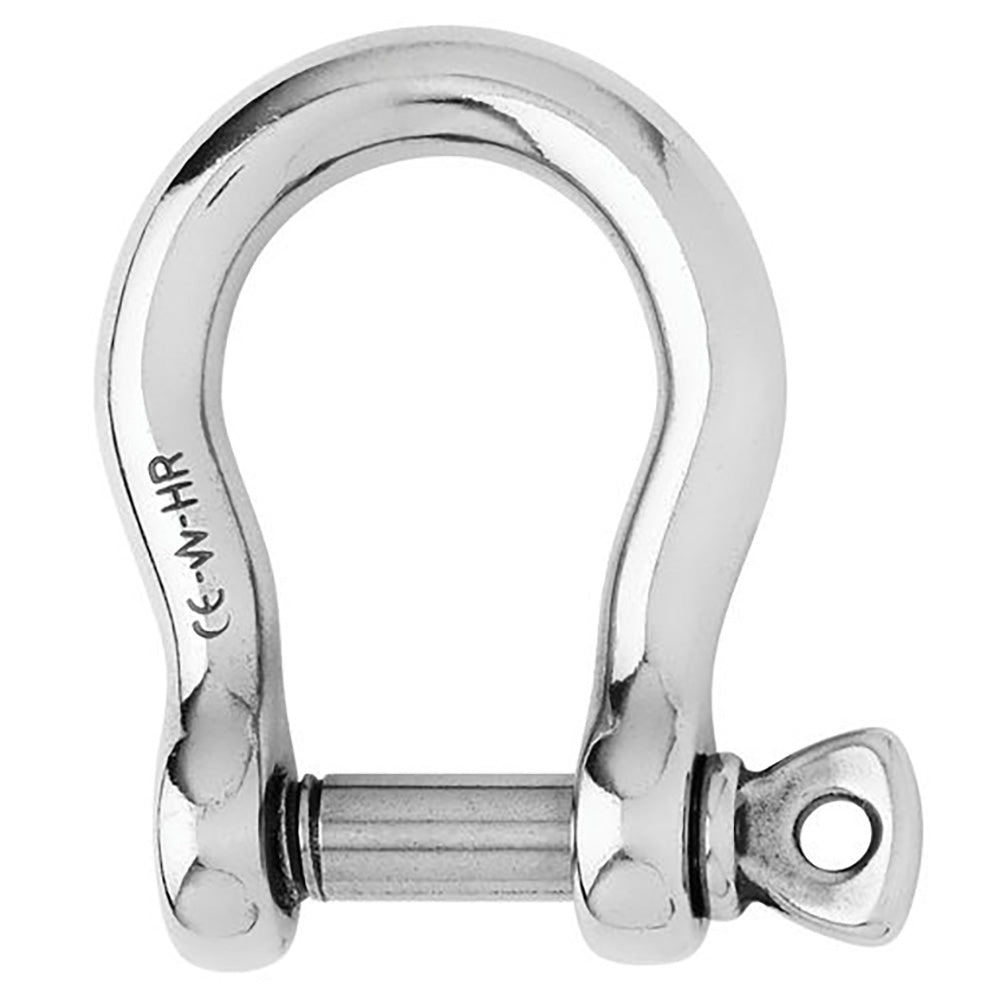

Wichard HR Bow Shackle - 12mm Pin Diameter [11246]

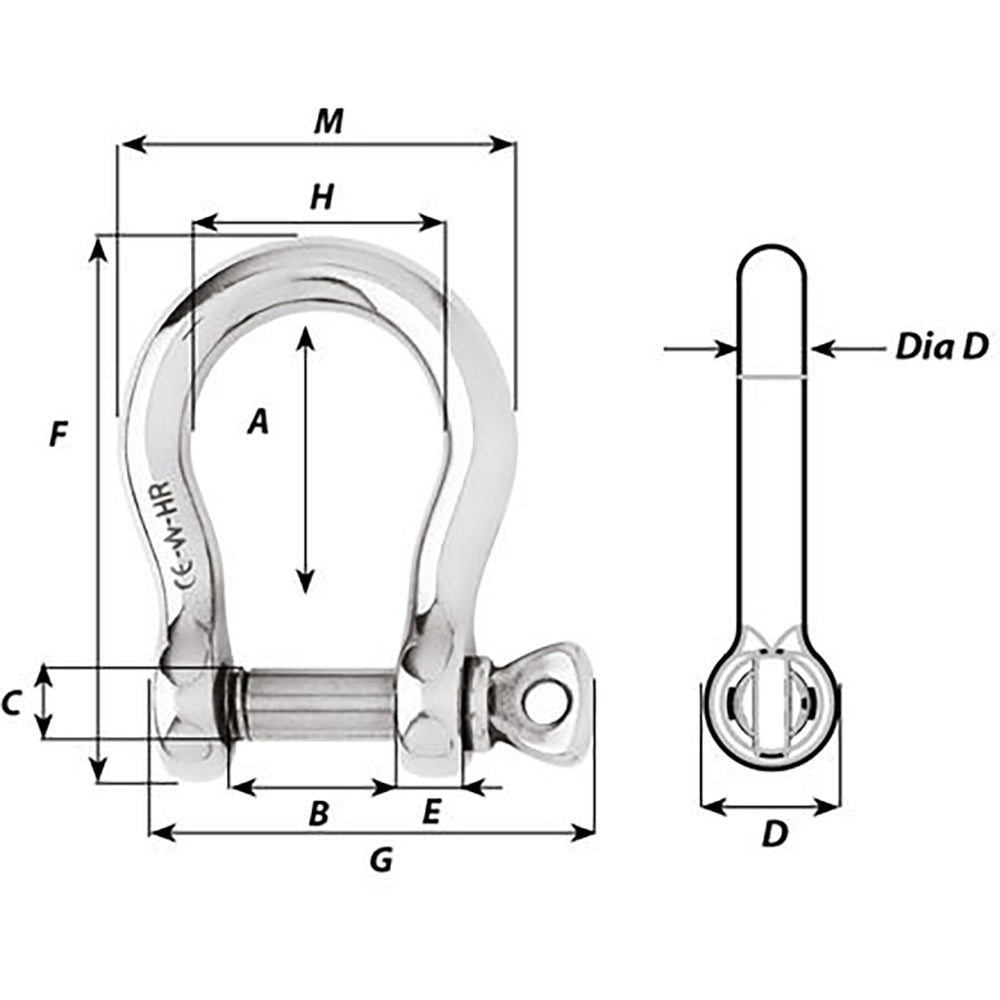

HR Bow Shackle - 12mm Pin DiameterFeatures:  Forged bow shackle in HR stainless steel grade (17,4 PH) Outstanding working and breaking load A HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel WLL: only for industrial applications (lifting i.e…) CE marking Applications: Applications requesting high loads To be used when ample room is required Possibility to attach several lines or cables Do not use for mooring applications Specifications:  Materials: HR 17.4 PH stainless steel grade Working load: (lb) 7930 / (kg) 3600  WLL: (lb) 4400 / (kg) 2000  Breaking load: (lb) 22040 / (kg) 10000  Weight: (lb) 0.494 / (g) 224  Dimensions: A: (inch) 2 11/64" / (mm) 55  B: (inch) 15/16" / (mm) 24  C: (inch) 15/32" / (mm) 12  D: (inch) 15/16" / (mm) 24  D diameter: (inch) 35/64" / (mm) 14  E: (inch) 25/64" / (mm) 10  M: (inch) 2 31/64" / (mm) 63  Caption: Working Load (WL): For nautical applications Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5 High Resistance (HR) Quick Guide (pdf)
