Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16" [01444]
Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16" [01444]

Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16" [01444]

Captive Pin Bow Shackle - Diameter 8mm - 5/16"Features: Captive pin bow shackle forged in grade 316L stainless steel The pin is connected to the body at all times even when opened The pin is locked into one of the indentations No risks of loosening due to vibrations Outstanding working and breaking loads Single handed operation for more safety WLL: only for industrial applications (lifting i.eā€¦) CE marking and batch number Applications: To be used when ample room is required Possibility to attach several lines or cables Specifications: Materials 316 stainless steel grade Working load (lb) 2200 WLL (lb) 1630 Breaking load (lb) 8150 Weight (lb) 0.165 Dimensions (see 2nd image): A (inch) 1-29/64" B (inch) 5/8" C (inch) 23/64" D (inch) 45/64" D diameter (inch) 5/16" E (inch) 5/16" M (inch) 1-21/32"
SKU: PM-93129
Availability: 3 In Stock
$48.28
$56.80
$48.28
Subtotal: $48.28
10 customers are viewing this product
Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16" [01444]

Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16" [01444]

$56.80 $48.28
Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16" [01444]
Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16" [01444]

Wichard Captive Pin Bow Shackle - Diameter 8mm - 5/16" [01444]

$56.80 $48.28
Description

Captive Pin Bow Shackle - Diameter 8mm - 5/16"

Features:

  • Captive pin bow shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • Single handed operation for more safety
  • WLL: only for industrial applications (lifting i.eā€¦)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 2200
  • WLL (lb) 1630
  • Breaking load (lb) 8150
  • Weight (lb) 0.165

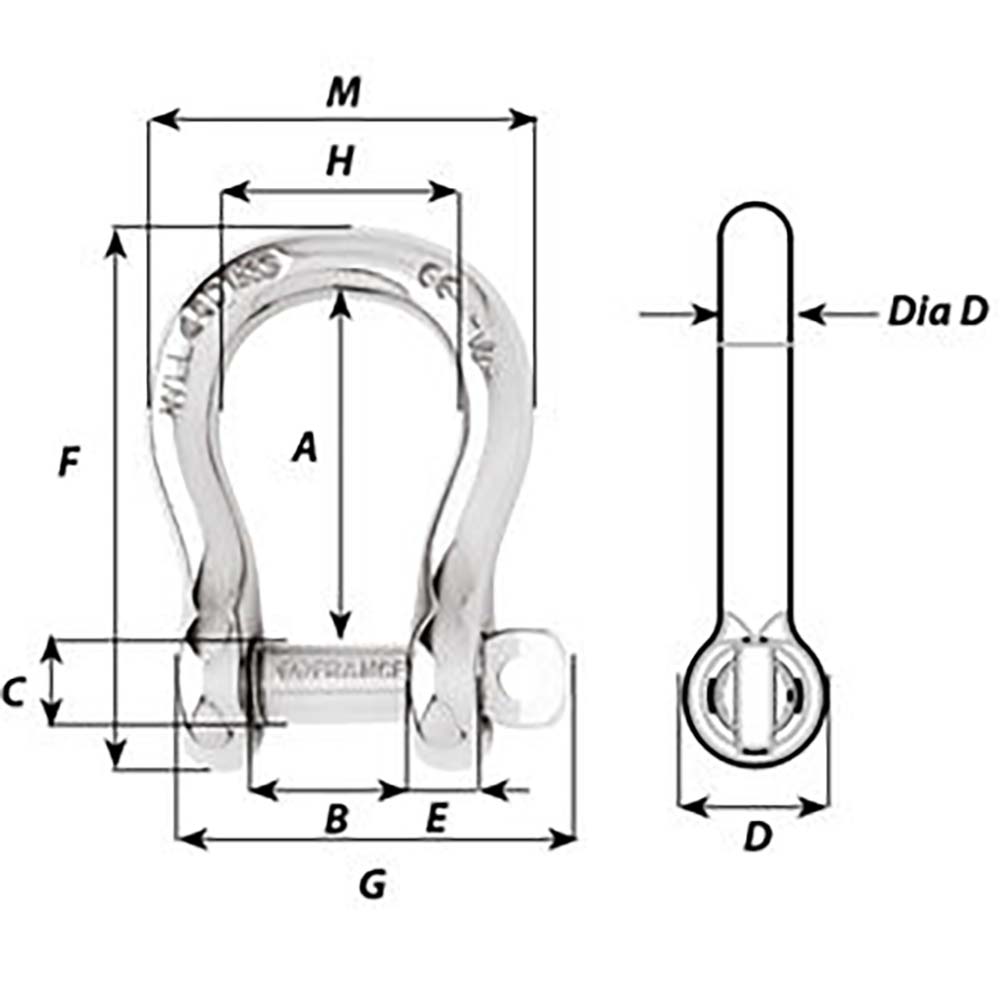

Dimensions (see 2nd image):

  • A (inch) 1-29/64"
  • B (inch) 5/8"
  • C (inch) 23/64"
  • D (inch) 45/64"
  • D diameter (inch) 5/16"
  • E (inch) 5/16"
  • M (inch) 1-21/32"
