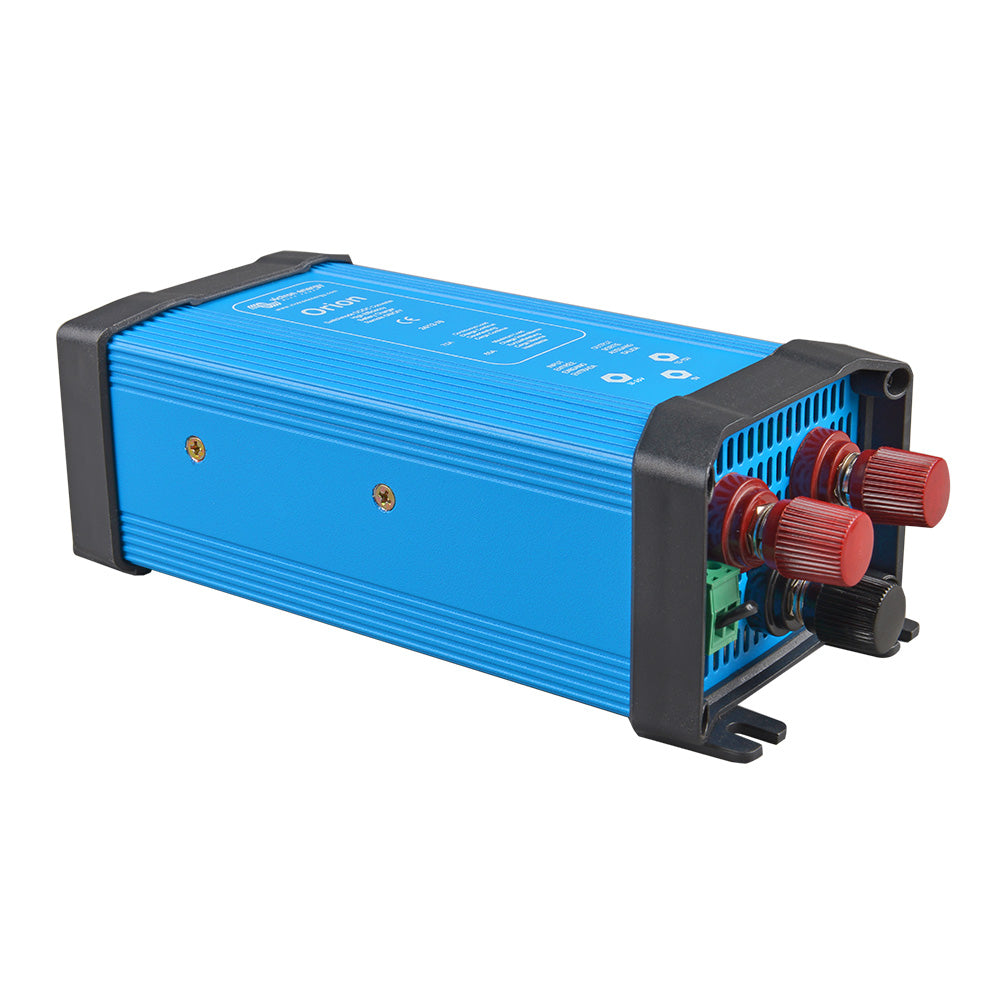

Victron Orion 24/12-70A DC-DC Converter w/Binding Posts - IP20 [ORI241270030]

Orion 24/12-70A DC-DC Converter with Binding Posts - IP20Remote On-Off ConnectorThe remote on-off eliminates the need for a high-current switch in the input wiring. The remote on-off can be.operated with a low-power switch or by the engine run/stop switch (see manual).All Models with Adjustable Output Can Also Be Used as a Battery ChargerFor example, charge a 12 Volt starter or accessory battery in an otherwise 24V system.All Models with Adjustable Output Can Be Paralleled to Increase Output CurrentUp to five units can be connected in parallel.Easy to InstallDelivery includes four Insulated Fastons Female Crimp 6.3mm.Specifications: Input Voltage Range (V): 18-35 Under Voltage Shutdown (V): 14 Under Voltage Restart (V): 18 Output Voltage Adjustable with Potentiometer: Yes Output Voltage (V): Adjustable, 10–15V, F set 13,2V Efficiency (%): 92 Suitable to Buffer-Charge a Battery: Yes Can Be Connected in Parallel: Yes Continuous Output Current (A): 70 Max. Output Current (A): 85 Fan-Assisted Cooling (Temp. Controlled): Yes Galvanic Isolation: No Off Load Current: < 20mA Remote On-off: Yes  Operating Temperature Range (Derate 3% Per °C above 40°C): -20 to +55°C DC Connection: M6 bolts Weight: 0,9 kg / 2.0 lbs Dimensions (H x W x D): (mm) 65 x 88 x 195 / (inch) 2.6” x 3.5” x 7.7”  Safety Standards: EN 60950  Emission Standards: EN 61000-6-3, EN 55014-1  Immunity Standards: EN 61000-6-2, EN 61000-6-1, EN 55014-2  Automotive Directive Standards: ECE R10-4 Please contact your dealer for any returns, repairs or support issues related to this product. Quick Guide (pdf)
