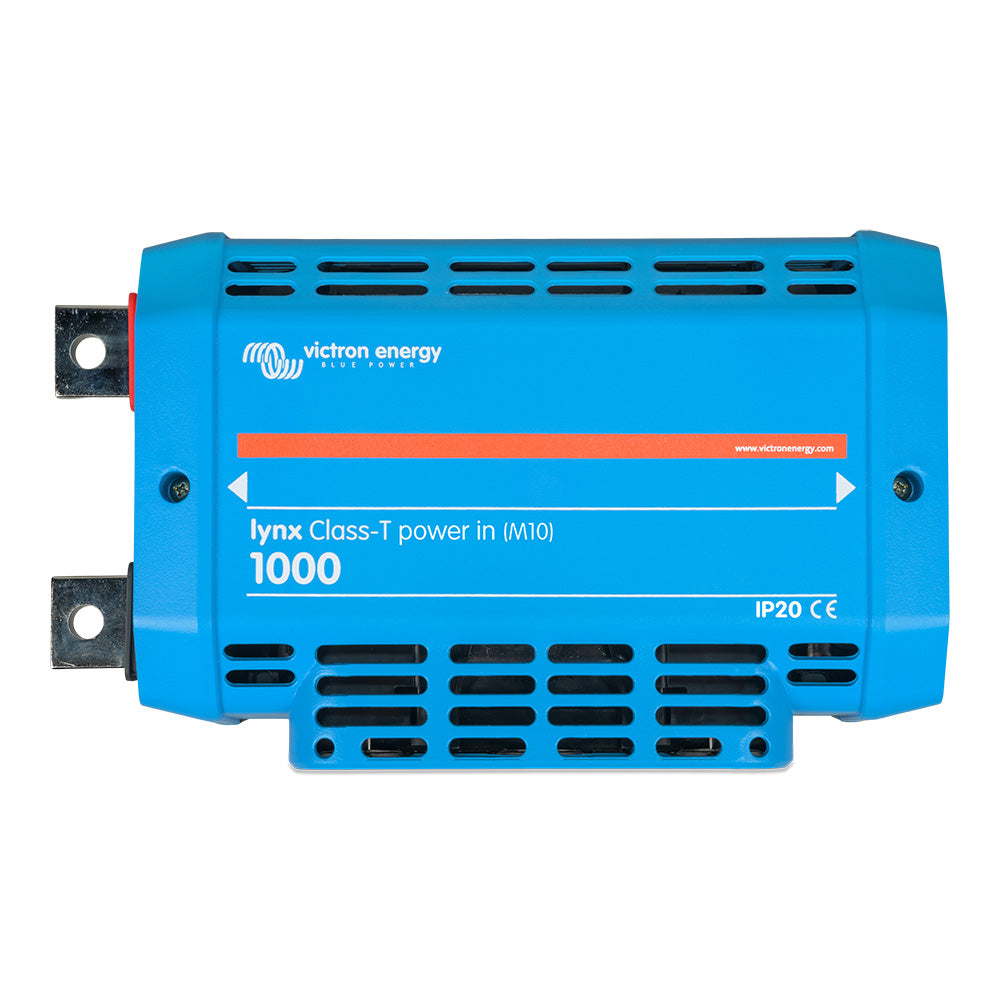

Victron Lynx Power-In Class-T M10 Terminals [LYN060404010]

Lynx Power-In Class-T M10 TerminalsThe Lynx Class-T Power In connects and fuses up to two strings of lithium batteries. It features a positive and negative busbar, connections for two Class-T fuses, and a connection to ground the DC system. The Class T-fuses, are available in 225A, 250A, 350A, and 400A (must be purchased separately).For installations using three or more strings of lithium batteries, use multiple Lynx Class-T modules. As a core component of the Lynx Distribution system, the Lynx Class-T seamlessly integrates with all other M10 Lynx products.The Lynx Distribution SystemThe Lynx Distribution System is a modular busbar system that incorporates DC connections, distribution, fusing, and battery monitoring and/or lithium battery management. The Lynx Distribution System Consists of the Following PartsLynx Power InA positive and negative busbar with four batteries or DC equipment connections.Lynx DistributorA positive and negative busbar with four fused connections for batteries or DC equipment and fuse monitoring is available in two versions.Lynx Shunt VE.CanA positive busbar with a space for a main system fuse and a negative busbar with a shunt for battery monitoring. It has VE.Can communication for monitoring and setup with a GX device.Lynx Smart BMSFor use together with Victron Energy Smart Lithium batteries. It contains a positive busbar with a contactor driven by a battery management system (BMS) and a negative busbar with a shunt for battery monitoring.It has Bluetooth communication for monitoring and setup via the VictronConnect App and VE.Can communication for monitoring with a GX device and the VRM portal. Available as a 1000A model with M10 busbars.SpecificationsPower: Voltage Range: 9 - 60Vdc Current Rating: 1000Adc continuous  Connections: M10 Busbar: 3/8” Physical: Enclosure Material: ABS Enclosure Dimensions (H x W x D): 279 x 169 x 97mm Unit Weight: 2.1 kg Busbar Material: Tinned copper Busbar Dimensions (H x W): 8 x 30mm Environmental: Operating Temperature Range: -40°C to +60° Storage Temperature Range: -40°C to +60° Humidity: Max. 95% (non-condensing) Protection Class: IP20 Please contact your dealer for any returns, repairs or support issues related to this product. Specifications: Fuse Type: Class T Box Dimensions: 5"H x 7"W x 16"L WT: 6.6 lbs UPC: 8719076062967 Quick Guide (pdf)Owner's Manual (pdf)
