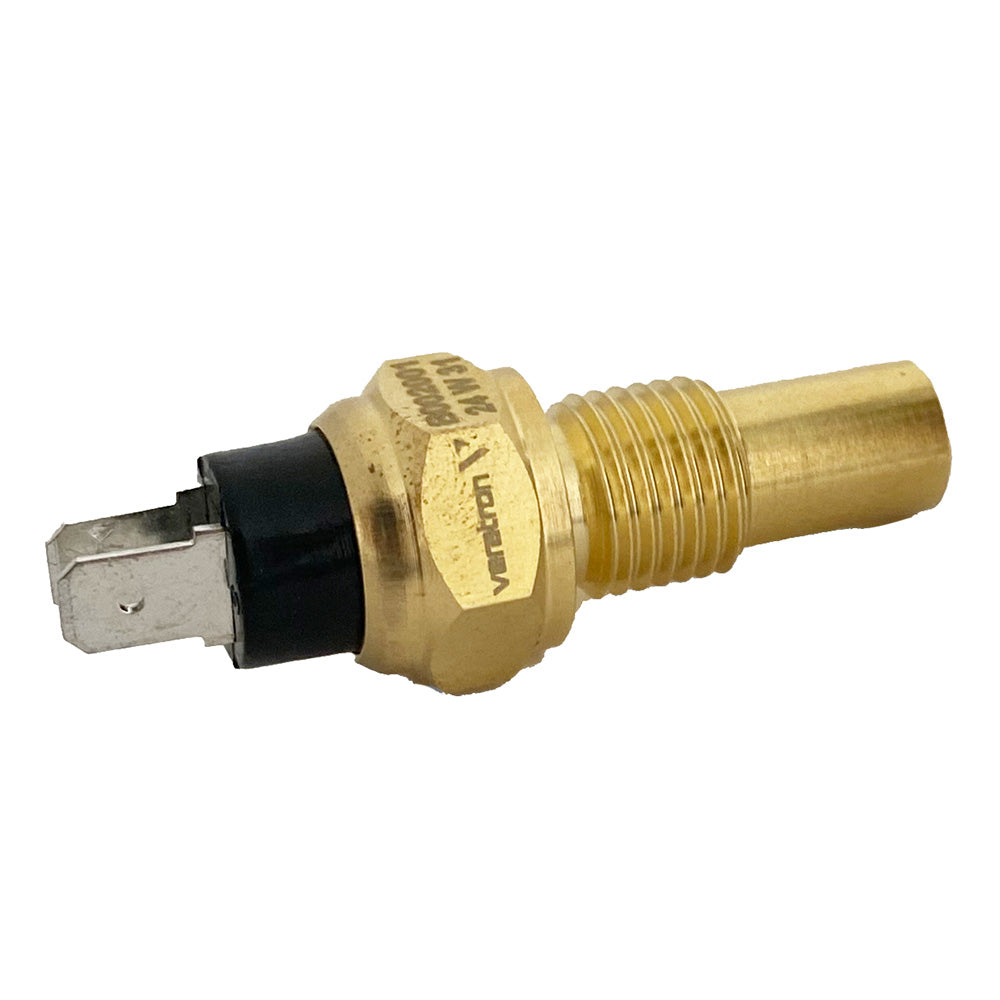

Veratron Water Temperature Sensor - 1/4"-18NPT Thread - 120C Temp Range [B002000]

Veratron Water Temperature Sensor - 1/4"-18NPT Thread - 120C Temp Range [B002000]

Water Temperature Sensor - 1/4"-18NPT Thread - 120°C Temp Range These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.Features: Function - Oil temperature, coolant temperature Length - 28.5mm (1-1/8") Thread - 1/4"-18NPT Calibration - 120°C Measurement Range - 120°C Output Signals - Resistive IP67 Insulated ground pin
SKU: PM-106071
Availability: 1 In Stock
$22.41
$24.90
$22.41
Subtotal: $22.41
10 customers are viewing this product
Veratron Water Temperature Sensor - 1/4"-18NPT Thread - 120C Temp Range [B002000]

Veratron Water Temperature Sensor - 1/4"-18NPT Thread - 120C Temp Range [B002000]

$24.90 $22.41
Veratron Water Temperature Sensor - 1/4"-18NPT Thread - 120C Temp Range [B002000]

Veratron Water Temperature Sensor - 1/4"-18NPT Thread - 120C Temp Range [B002000]

$24.90 $22.41
Description

Water Temperature Sensor - 1/4"-18NPT Thread - 120°C Temp Range

These resistive temperature sensors are built in a housing of brass. All sensors come with a sensor output and an insulated ground pin. The two connections are interfaced through the metal plate connectors. The sensors can be applied in a wide field of applications.

Features:

  • Function - Oil temperature, coolant temperature
  • Length - 28.5mm (1-1/8")
  • Thread - 1/4"-18NPT
  • Calibration - 120°C
  • Measurement Range - 120°C
  • Output Signals - Resistive
  • IP67
  • Insulated ground pin
