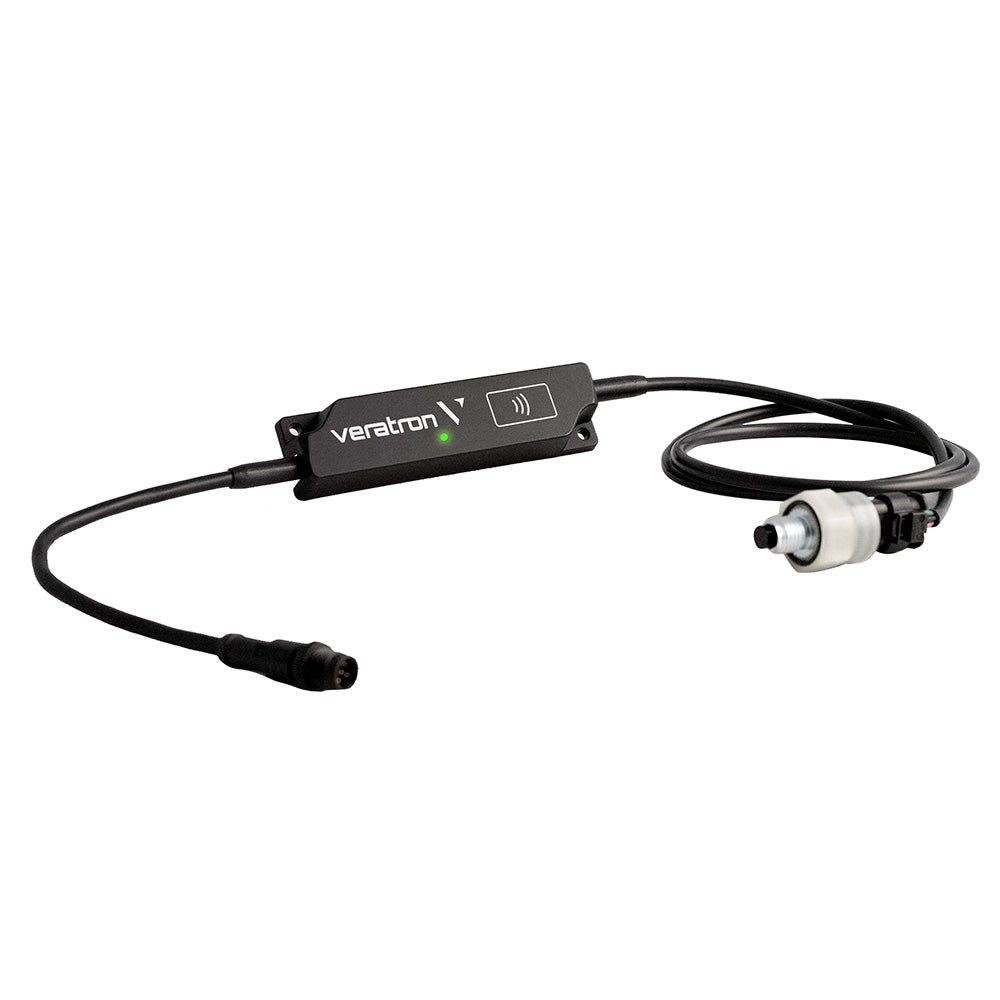

Veratron LinkUp Intelligent Temperature Pressure [B00070501]

LinkUp Intelligent Temperature & PressureThis Sensor measures simultaneously the engine oil's temperature and pressure while providing the data to the LinkUp, which translates it to the NMEA 2000® standard.Features: Interface to the new electronic 2-in-1 sensor Oil Temperature and Pressure in a single sensor Rugged and reliable design derived from the automotive field ASIC-controlled sensor PWM (Pulse Width Modulated) output to transmit both pressure and temperature Technical Specifications: M12 mounting thread IP 69/K protection class 5V power feed provided by the LinkUp Temperature accuracy ± 1°K in the 135 °C – 160 °C range Pressure accuracy ± 0.2 bar (range 0.5 –3 bar), ± 0.1 bar below and ± 0.3 bar above Temperature range: -40 °C + 160 °C Pressure range: 0.5 to 10.5 bar 1M cable length This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Owner's Manual (pdf)Brochure (pdf)
