Description

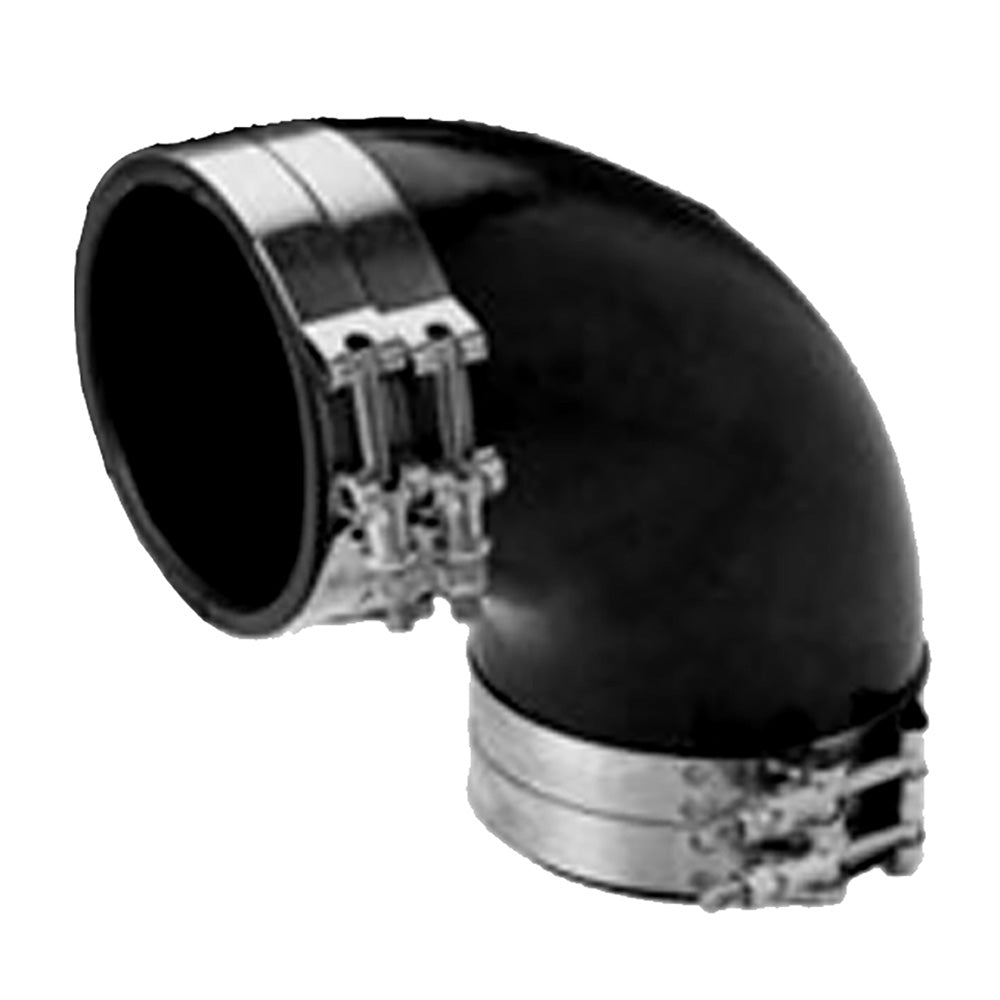

6" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt Clamps

Trident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.

Features:

  • Four stainless steel clamps are included
  • This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging
  • Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards)
  • Black high-temp EDPM rubber

Construction:

  • Color: Black
  • Reinforcement: Reinforcing ribs on 6” I.D. and above
  • Temperature Range: up to 250°F (121°C)

Specifications:

  • Inner Diameter: (inch) 6” / (mm) 152.4
  • A: (inch) 7" / (mm) 178
  • B: (inch) 7” / (mm) 178
  • C: (inch) 2.25” / (mm) 57
  • D: (inch) 2.25” / (mm) 57
  • R: (inch) 1.75” / (mm) 44.4
  • W: (inch) 0.25” / (mm) 6.4
  • Elbow Degree: 90 degrees

Quick Guide (pdf)
