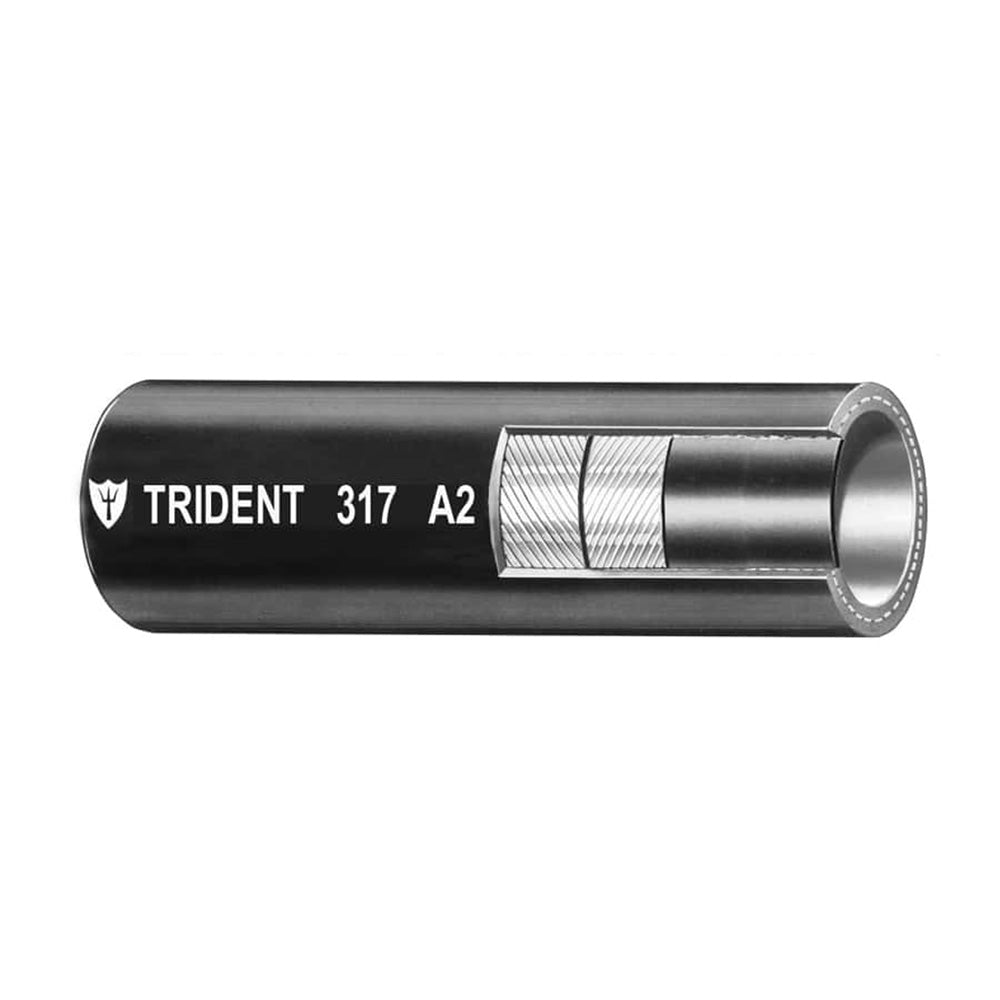

Trident Marine 5/8" x 50 Boxed Type A2 Fuel Vent Line Hose - Black [317-0586]

5/8" x 50' Boxed Type A2 Fuel & Vent Line Hose - BlackTrident 5/8” A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.Features: Provides extraordinary resistance to aging, fire, heat, cold, and the ozone  Also provides excellent bend-ability NMMA Type Accepted & CE certified Application: Fuel Hose for vent and diesel distribution  For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel Construction: Tube: Nylon Internal Barrier, NBR  Cover: NBR/PVC Blend  Reinforcement: Polyester 2 spiral  Temperature Range: -20°F to 212°F (-28ºC to 100ºC)  Length: 50 ft. (15 m) Boxed Specifications: Inner Diameter: (inch) 5/8" / (mm) 15.9 Outer Diameter: (inch) 0.960 / (mm) 24.4 Burst Pressure: (psi) 200 / (mpa) 1.38 Working Pressure: (psi) 50 / (mpa) 0.34 Bend Radius: (inch) 3" / (mm) 76.2 Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72 *The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2 Quick Guide (pdf)
