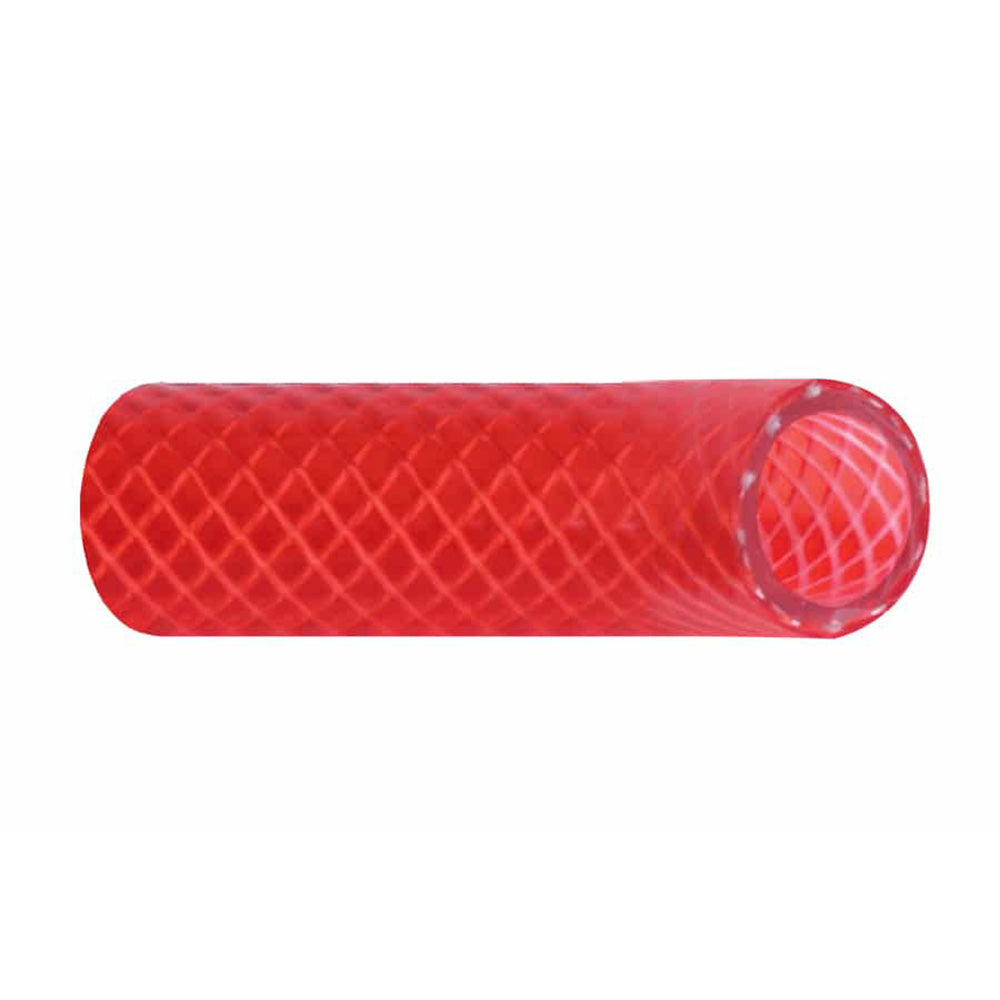

Trident Marine 5/8" x 50 Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent Red [166-0586]

5/8" x 50' Boxed Reinforced PVC (FDA) Hot Water Feed Line Hose - Drinking Water Safe - Translucent RedTrident 166 Series Red - polyester reinforced PVC hose for "Hot Water" feed lines. The FDA-grade tube is non-toxic, odorless, and tasteless. Suitable for use in harsh operating conditions with temperatures of up to 149ºF (65ºC) and can handle pressures to a maximum of 250 psi (varies based on i.d size). Features:  The Red cover allows for easy identification of "Hot Water" lines on your boat Made of 3-ply polyester for excellent abrasion resistance and sustained flexibility This hose is safe for use with drinking water Application:Perfect for hot, pressurized applications, hot water feed, drains, and vent linesConstruction: Tube & Cover: Clear FDA tube  Color: Red Transparent  Reinforcement: Polyester Temperature Range: -18°F to 149°F (-28°C to 65°C) Length: 50’ (15.24m) Specifications: Inner Diameter: (inch) 5/8" / (mm) 15.9 Outer Diameter: (inch) .866 / (mm) 22.5 Working Pressure: (PSI Vac In./Hg) 230 / (bar) 16 Bend Radius: (inch) 1.26" / (mm) 32 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 5/8" Box Dimensions: 5"H x 18"W x 18"L WT: 9.4 lbs UPC: 704917024042 Quick Guide (pdf)
