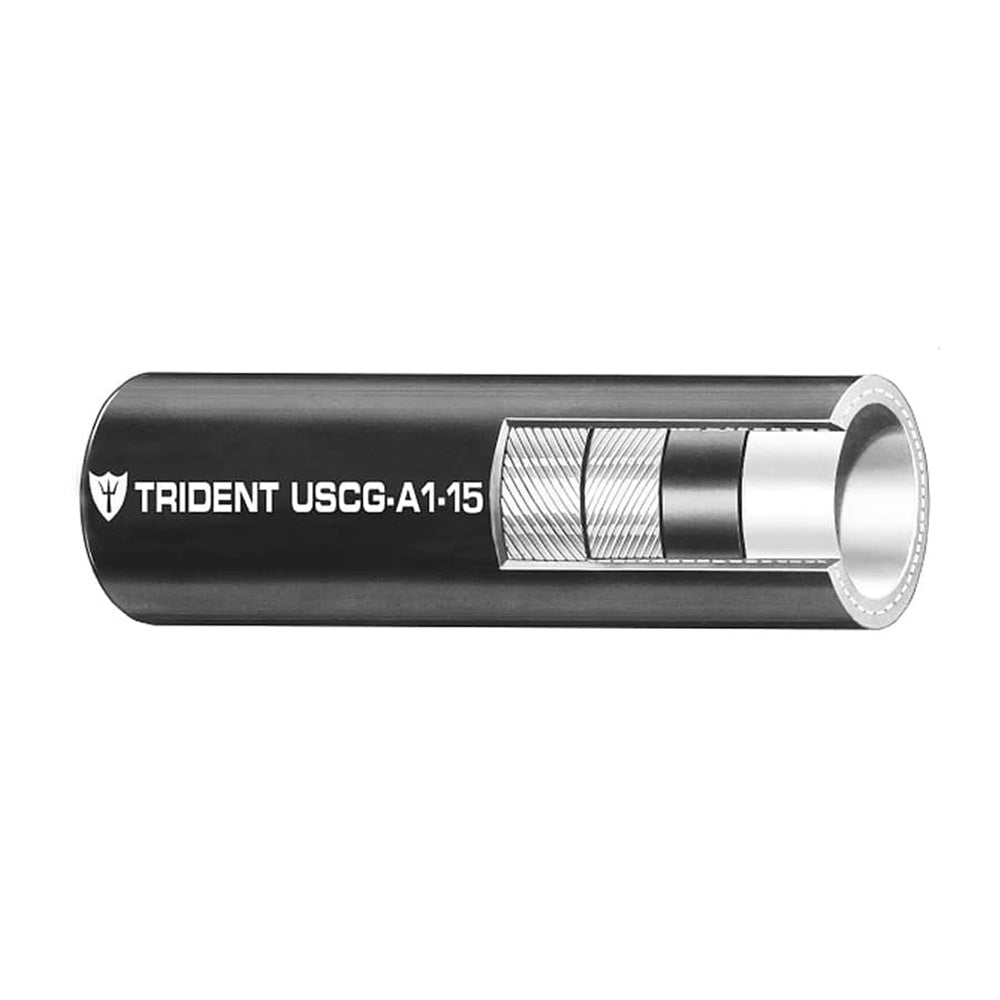

Trident Marine 5/16" x 50 Boxed Low Permeation Type A1-15 Fuel Line Hose - Black [365-0566]

5/16" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - BlackTrident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.Features:  Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone  Also provides excellent bend-ability NMMA Type Accepted & CE certified Application: Marine Fuel Hose (distribution, return, vent and transfer) For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel Construction: Tube: Nylon Internal Barrier, NBR  Cover: NBR/PVC Blend  Reinforcement: Polyester 2 spiral  Temperature Range: -20°F to 212°F (-28ºC to 100ºC)  Length: 50 ft. (15 m) Boxed Specifications: Inner Diameter: (inch) 5/16" / (mm) 7.92 Outer Diameter: (inch) 0.611 / (mm) 15.5 Burst Pressure: (psi) 400 / (mpa) 2.76 Working Pressure: (psi) 100 / (mpa) 0.69 Bend Radius: (inch) 1.75" / (mm) 44.5 Weight: (lb/100 ft.) 13.3 / (kg/m) 0.198 Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10) *The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10 Quick Guide (pdf)
