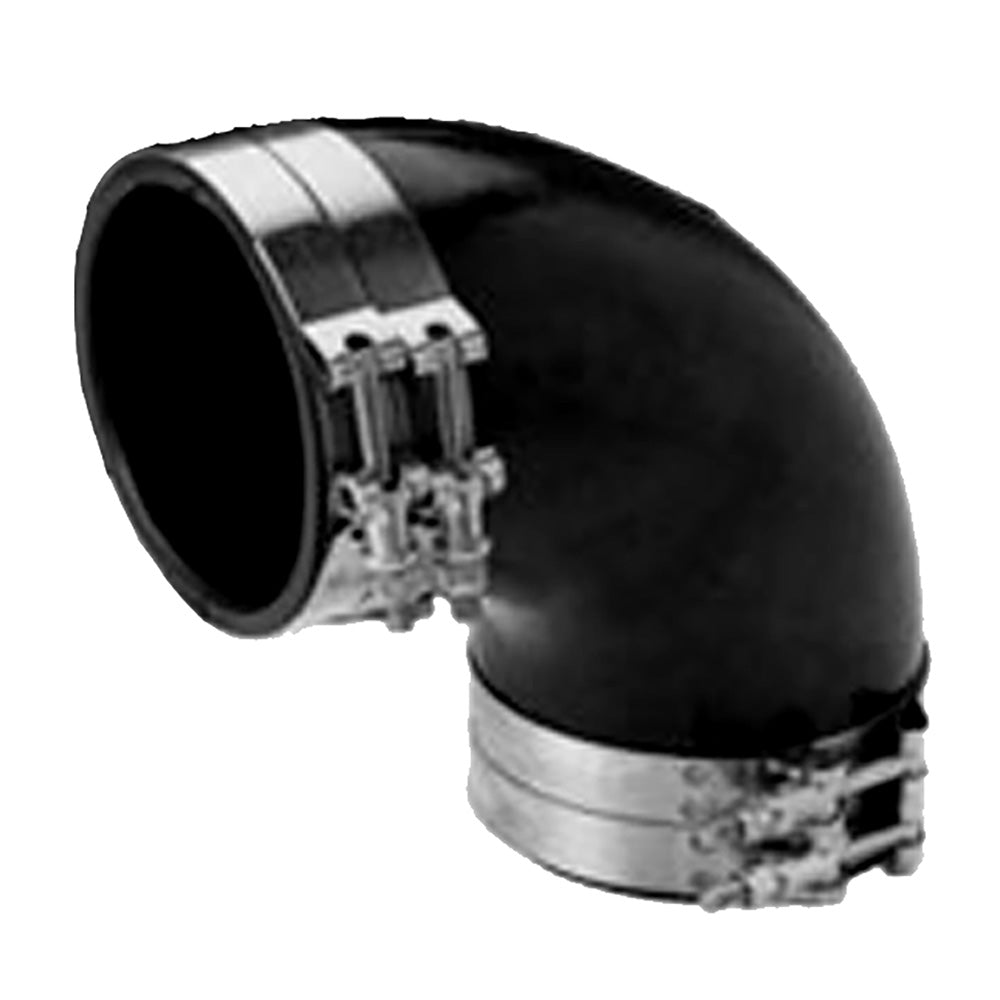

Trident Marine 4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow w/4 T-Bolt Clamps [TRL-490-S/S]

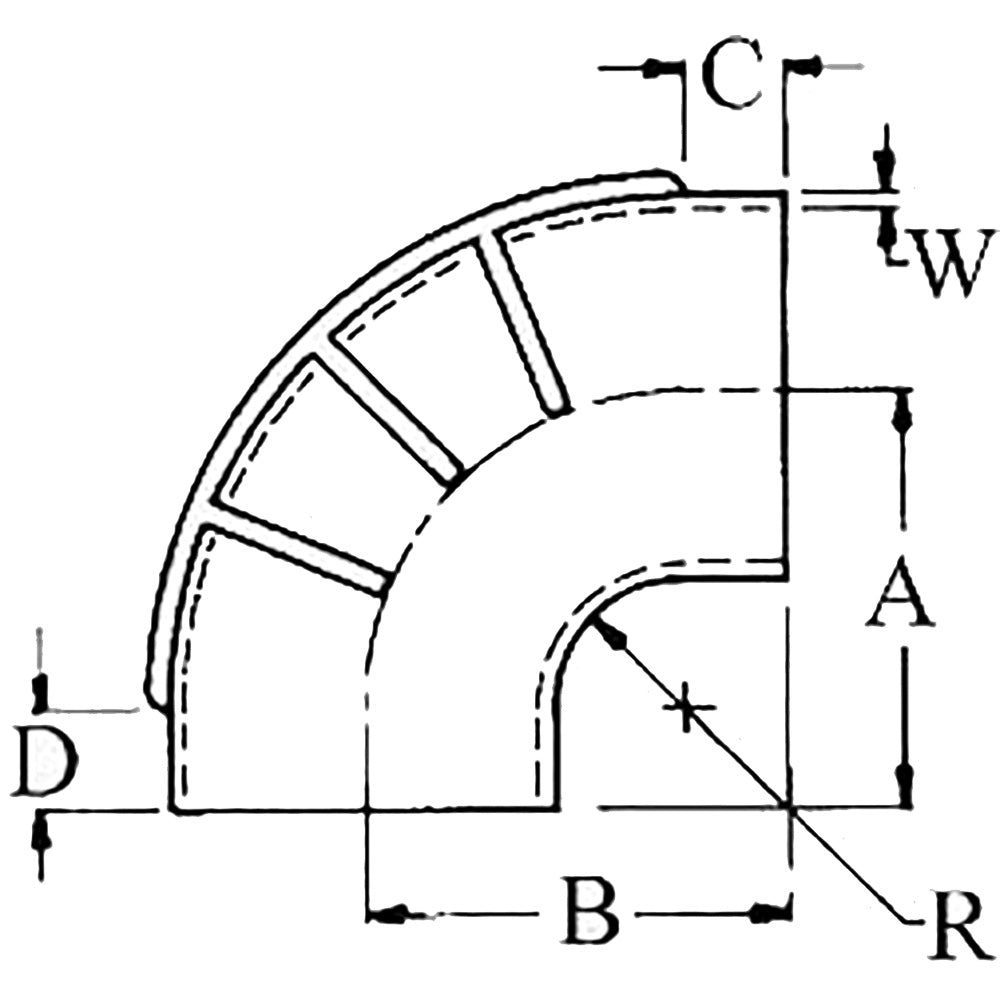

4" ID 90-Degree EPDM Black Rubber Molded Wet Exhaust Elbow with 4 T-Bolt ClampsTrident EPDM marine wet exhaust connections are molded of high-temperature black EPDM rubber with a smooth bore and cover; except elbows of 6” I.D. or bigger have molded reinforcing ribs on the outside.Features: Four stainless steel clamps are included This elbow has excellent resistance to ozone, salt water, diesel fumes and splashes, cold, heat, and aging Exceeds (SAE J2006-R1, and ABYC & NMMA P-1 exhaust standards) Black high-temp EDPM rubber Construction: Color: Black Reinforcement: Reinforcing ribs on 6” I.D. and above Temperature Range: up to 250°F (121°C) Specifications: Inner Diameter: (inch) 4” / (mm) 101.6 A: (inch) 5.75" / (mm) 146 B: (inch) 5.75” / (mm) 146 C: (inch) 1.75” / (mm) 44.4 D: (inch) 1.75” / (mm) 44.4 R: (inch) 2” / (mm) 50.8 W: (inch) 0.25” / (mm) 6.4 Elbow Degree: 90 degrees Specifications: ID Diameter (inches): 4" Box Dimensions: 7"H x 7"W x 8"L WT: 2.6 lbs UPC: 704917000411 Quick Guide (pdf)
