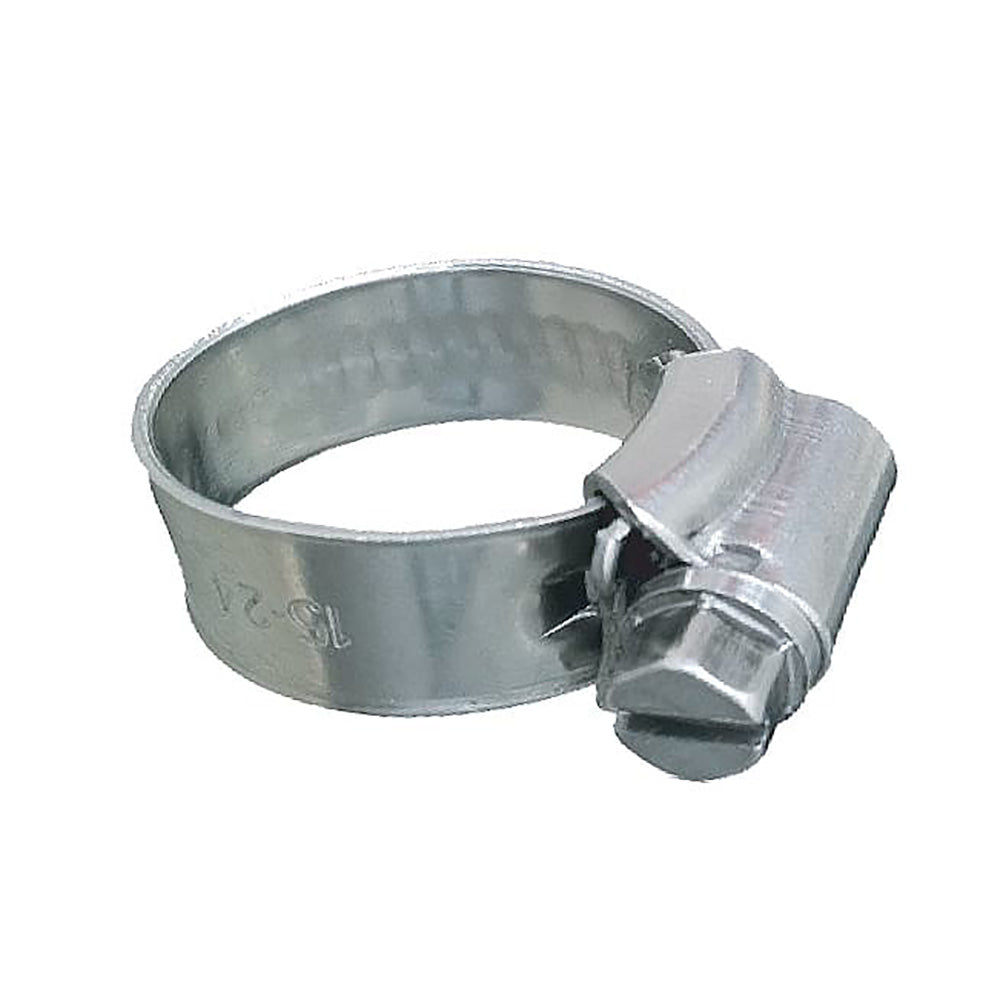

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (1-1/16" 1-1/2") Clamping Range - 10-Pack - SAE Size 16 [705-1001]

316 SS Non-Perforated Worm Gear Hose Clamp - 3/8" Band - (1-1/16" – 1-1/2") Clamping Range - 10-Pack - SAE Size 16Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel Compact “HD NON-PERF” Worm Gear Hose Clamp. The 9.7 mm (0.382”) wide band is Non-Perforated and smooth on the inside with rolled edges. This eliminates hose damage with increased clamping force. The high strength, compact, one-piece 14mm (0.55”) wide housing provides one of the highest clamping force ratings of any worm gear style clamp.Features: The screw head is 7mm Long service life and safety for most general-purpose hose applications and connections Recommendations: Measure hose O.D. before selecting clamp size for proper fit Double clamp on each hose end for critical applications Construction: Band & Housing: 316 Stainless Steel 9.7 mm wide band – 0.8mm thick Screw Drive: 316 Stainless Steel 7.0 mm screw head Specifications: SAE Size: 16 Hose Inner Diameter: (inch) 7/8" – 1" Clamping Range: (inch) (1-1/16") – (1-1/2") / (mm) 26-38 Recommended Torque Inch lbs: 35-45 Quick Guide (pdf)
