Trident Marine 1-1/8" x 50 Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear w/Black Helix [147-1186]

Trident Marine 1-1/8" x 50 Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear w/Black Helix [147-1186]

1-1/8" x 50' Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear with Black HelixTrident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required. Features:Flexible, but the 147 series is less flexible than the 149 series of hosesApplication:Bilge and live well hoseSpecifications: Tube & Cover: Clear vinyl reinforced with black helix  Color: Clear with black helix Reinforcement: PVC Helix Temperature Range: 10°F-120°F (-12°C-49°C)  Boxed: 50ft. / (15.24m) Inner Diameter: (inch) 1-1/8" / (mm) 28.6 Outer Diameter: (inch) 1.39" / (mm) 35.4 Working Pressure: (Psi Vac In./Hg) 28 Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.45 Bend Radius: (inch) 3.5" / (mm) 8.9 *Burst Pressure is 4 x Working Pressure Specifications: Length (Feet): 50' ID Diameter (inches): 1-1/8" Box Dimensions: 8"H x 23"W x 23"L WT: 14.2 lbs UPC: 704917006192 Quick Guide (pdf)
SKU: PM-98795
Availability: 5 In Stock
$132.00
$184.90
$132.00
Subtotal: $132.00
10 customers are viewing this product
Trident Marine 1-1/8" x 50 Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear w/Black Helix [147-1186]

Trident Marine 1-1/8" x 50 Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear w/Black Helix [147-1186]

$184.90 $132.00
Trident Marine 1-1/8" x 50 Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear w/Black Helix [147-1186]

Trident Marine 1-1/8" x 50 Heavy Duty PVC Bilge Livewell Hose (FDA) - Clear w/Black Helix [147-1186]

$184.90 $132.00
Description

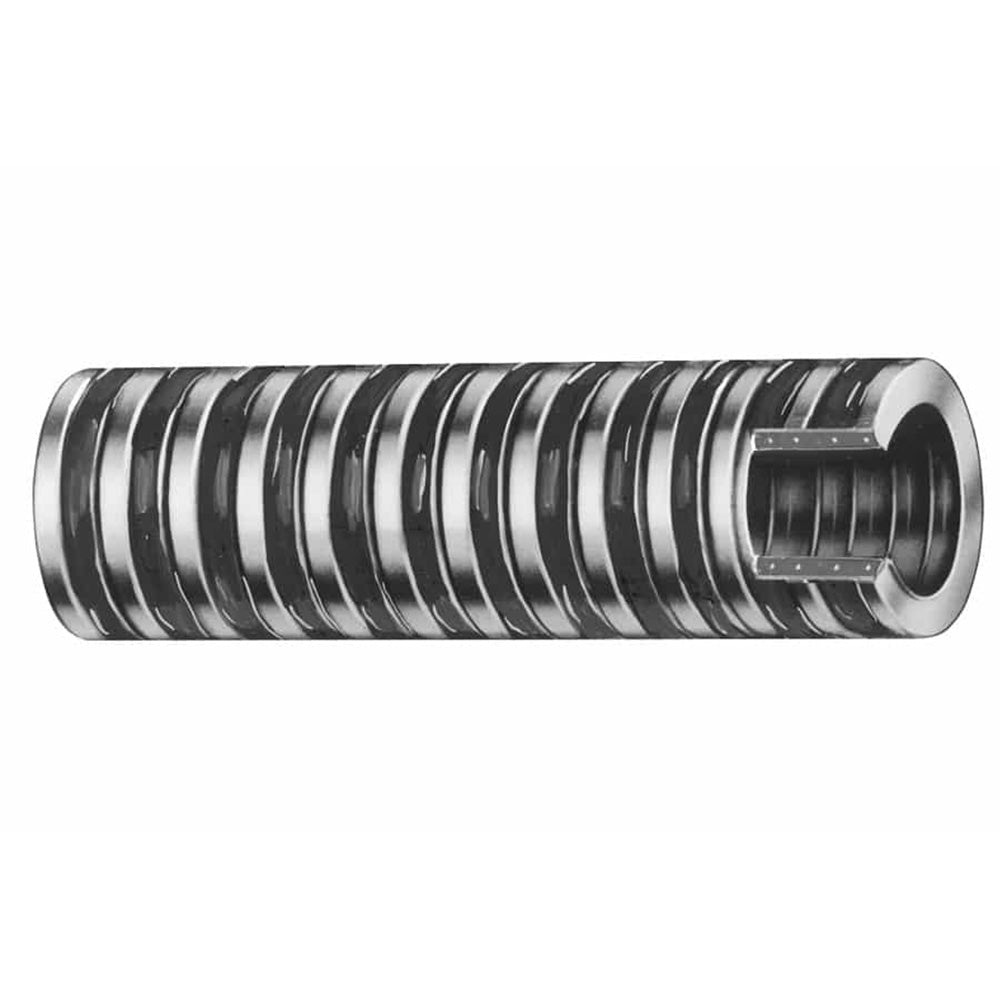

1-1/8" x 50' Heavy Duty PVC Bilge & Livewell Hose (FDA) - Clear with Black Helix

Trident Smooth extra heavy wall vinyl (FDA) well hose. All clear (see thru) with black helix. Excellent durability, flexibility & bend radius for XHD bilge, live well, drain, scupper lines, etc. No cuffs are required.

Features:

  • Flexible, but the 147 series is less flexible than the 149 series of hoses

Application:

  • Bilge and live well hose

Specifications:

  • Tube & Cover: Clear vinyl reinforced with black helix
  • Color: Clear with black helix
  • Reinforcement: PVC Helix
  • Temperature Range: 10°F-120°F (-12°C-49°C)
  • Boxed: 50ft. / (15.24m)
  • Inner Diameter: (inch) 1-1/8" / (mm) 28.6
  • Outer Diameter: (inch) 1.39" / (mm) 35.4
  • Working Pressure: (Psi Vac In./Hg) 28
  • Weight: (Lb./ 50 ft.) 15 / (Kg/m) 0.45
  • Bend Radius: (inch) 3.5" / (mm) 8.9

*Burst Pressure is 4 x Working Pressure

Specifications:

  • Length (Feet): 50'
  • ID Diameter (inches): 1-1/8"
  • Box Dimensions: 8"H x 23"W x 23"L WT: 14.2 lbs
  • UPC: 704917006192

Quick Guide (pdf)
