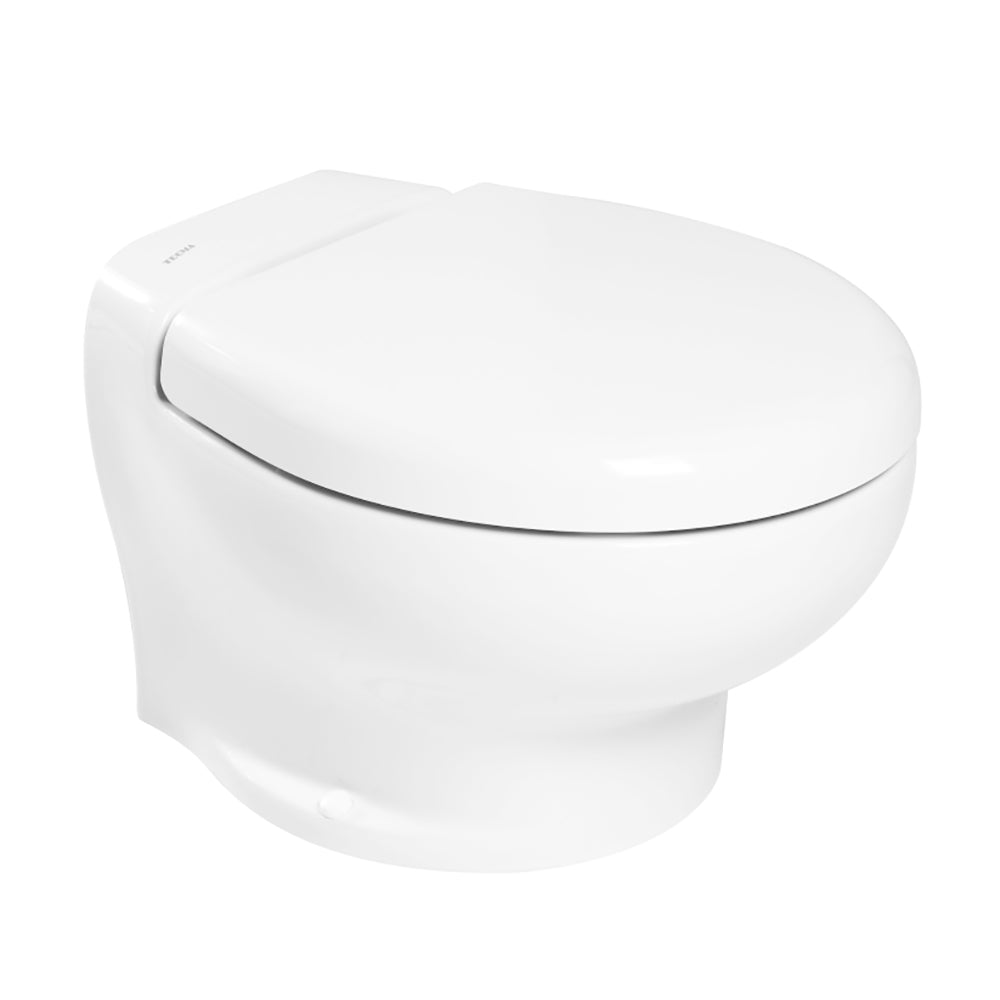

Nano Touch Compact Toilet - 12VThe Tiny Turbo Toilet!From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable to offer the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). Thetford Marine product development team has created a design that is extremely elegant, but also very flexible to install, thanks to its compact size.Features:
Uses 2 check valves and this combined with a water trap ensures there are no odor issues
Incredibly quiet operation
Can use both raw water and pressure water flush
Leaves a clean, dry bowl after every powerful flush
Optional User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features (sold separately)
Technical Specifications:
Material - Italian ceramic
Flush Rate - 0.1-0.7 gallons per flush
Outlet pump recommended fuse - 30A
Outlet pump performance - 13.1ft vertical suction, 131.2ft horizontal suction
Inlet solenoid (freshwater) power consumption - 9.5W
Inlet pump (raw water) fuse - 8A
Inlet pump (raw water) pressure - 45 PSI
In the Box:
1 - 12v Tecma Nano toilet
1 - Wall switch and controller
1 - Black wall switch bezel
1 - Bone wall switch bezel
2 - 1/4 10 x 2.5” stainless steel lag screws
2 - 1/4” stainless steel washer
2 - Plastic washers
2 - Bolt caps
2 - Hose clamps – 1 1/4”- 2”, Stainless
1 - Full tank sensor
1 - Lower Discharge Check Valve (with straight and elbow fittings)
1 - Installation/Owner's Manual
Specifications:
Color: White
Gallons Per Minute: 3 GPM
Inlet Size: 1/2"
Operation Method: Electric
Outlet Size: 1.5"
Rinse Water: Raw/Fresh
Size: Compact Size
Suction Lift (ft.): 13'
Type: Toilet
Volts: 12v
Box Dimensions: 17"H x 18"W x 21"L WT: 46 lbs
UPC: 028985002864
From the experts in macerating toilets, Nano toilet utilizes Turbine Technology to produce a powerful, clog-resistant flush. This model is the ultimate combination of a highly efficient marine toilet and the smallest design capable to offer the same comfort as bigger units. It’s the result of a strong relationship with the market and fulfills new requirements for vessels below 50′ (45m). Thetford Marine product development team has created a design that is extremely elegant, but also very flexible to install, thanks to its compact size.
Features:
Uses 2 check valves and this combined with a water trap ensures there are no odor issues
Incredibly quiet operation
Can use both raw water and pressure water flush
Leaves a clean, dry bowl after every powerful flush
Optional User-friendly Eco rocker switch (to reduce energy and water consumption) or a smart flush controller with high-end flush and tank control features (sold separately)
