Simrad NAC-3 High Current Course Computer [000-13250-001]

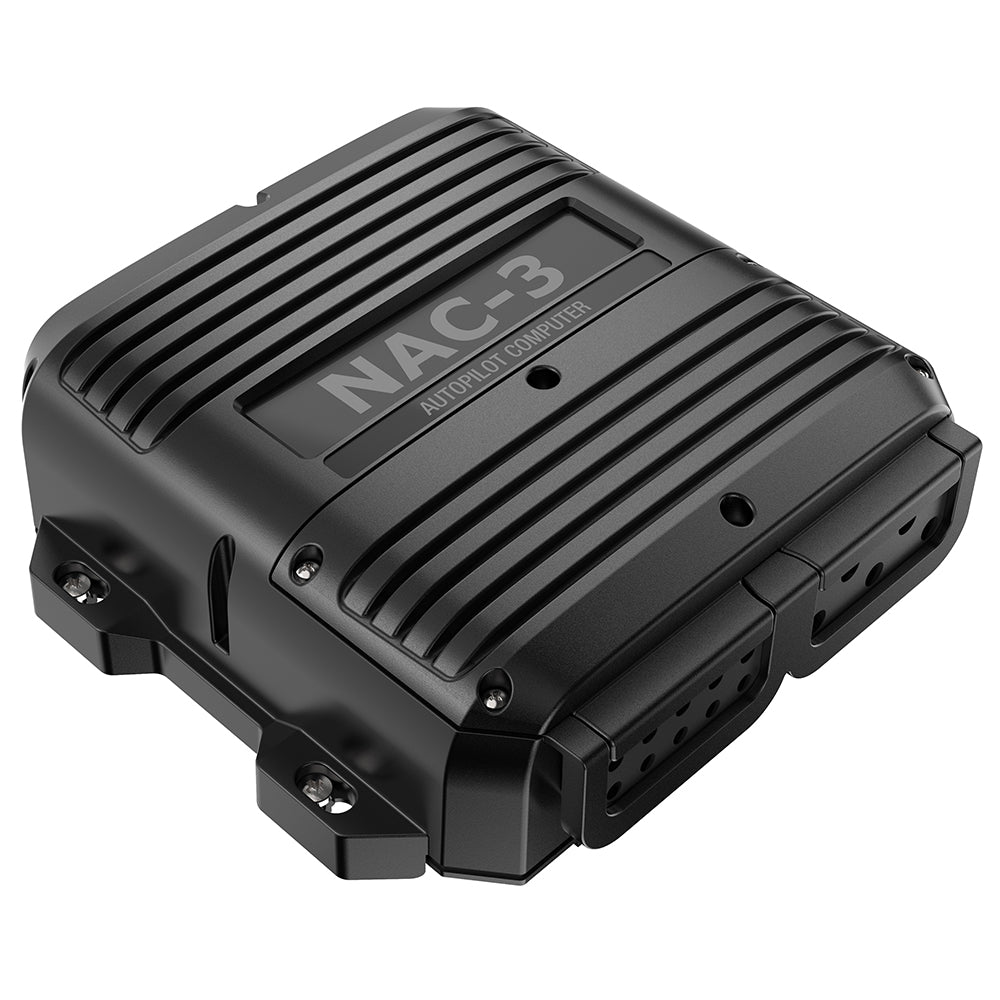

NAC-3 High Current Course ComputerThe NAC-3 Autopilot Computer is the brains behind your Simrad autopilot system. It contains the electronics needed to operate a hydraulic steering pump or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. The NAC-3 was designed for boats 10M (33') or greater in length and is rated to operate high-current pumps, mechanical drive units, and solenoid valves (30 Amps continuous/50 Amps peak).Features: Reliable autopilot performance based on Simrad Continuum™ steering technology Recommended for boats above 10M (33') in length High-current output of 30 Amps continuous, 50 Amps peak Clutch output (3 Amps maximum) Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats Supports Simrad RF25 and RF300 rudder feedback units NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays NMEA 0183® input Specifications: Type: Parts Box Dimensions: 5"H x 9"W x 10"L WT: 3.2 lbs UPC: 9420024154397
