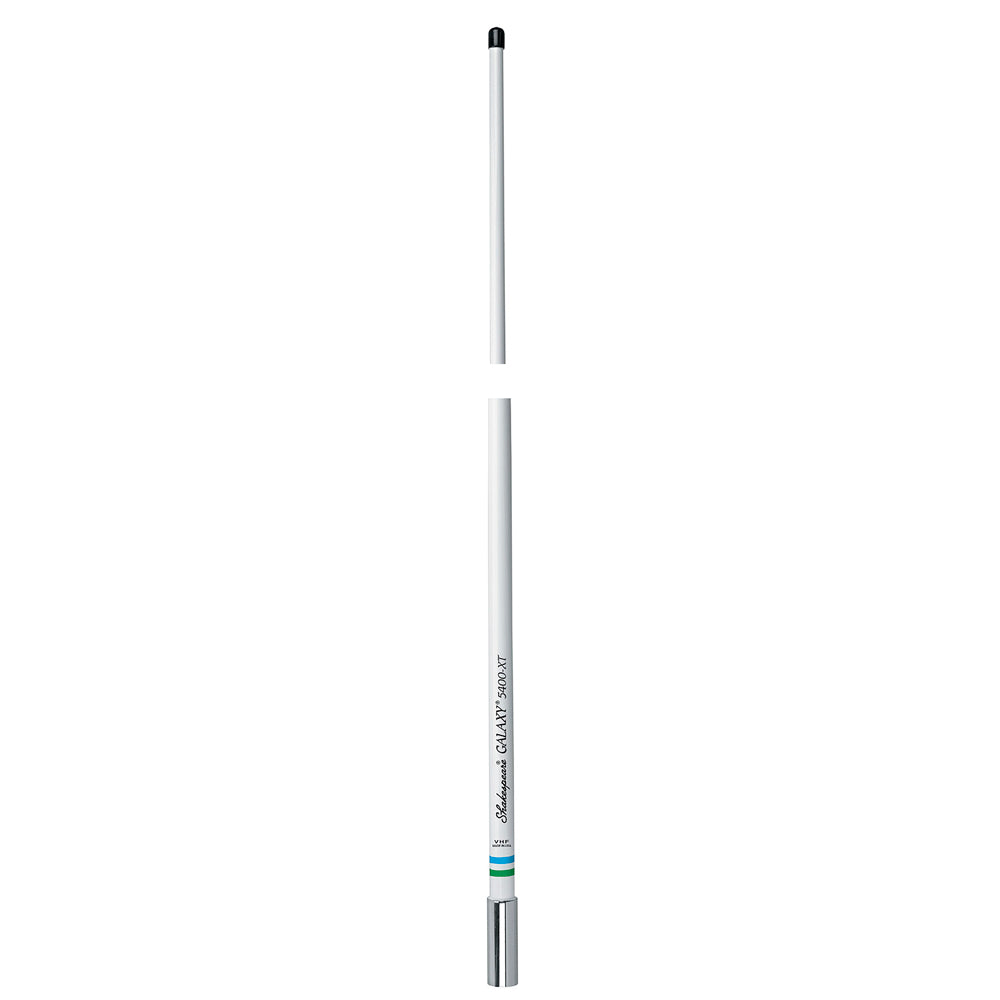

Shakespeare 5400-XT Galaxy 4' VHF Antenna - 3dB Gain [5400-XT]

5400-XT Galaxy 4' VHF Antenna - 3dB GainThe compact Galaxy® 5400-XT is an outstanding, general purpose 4' antenna of heavy duty construction for general purpose communications. Its at home on T-tops, hard-tops, and other positions aloft, where its small size can deliver maximum range.Features: Center-fed 1/2 wave coaxial sleeve Brass and copper elements for maximum range Stainless steel ferrule with standard 1"-14 thread Includes 20' RG-8/X cable and a PL-259 connector Suggested mount: Shakespeare Style 4187 Ratchet Mount One section Shakespeare Limited Warranty: 5 years Includes FME Cables Technical Specifications: Frequency: VHF Marine Band Bandwidth: 5 MHz within 2.0:1 VSWR SWR: Nominally 1.5:1 at 156.8 MHz Gain: 3 dB Max Input (Watts): 50 watts Height (feet): 4 Specifications: Antenna Band: VHF Color: White Construction: Fiberglass Ferrule Type: Stainless Steel Length (Inches): 48" Box Dimensions: 3"H x 3"W x 52"L WT: 2.5 lbs UPC: 719441100605 Quick Guide (pdf)
