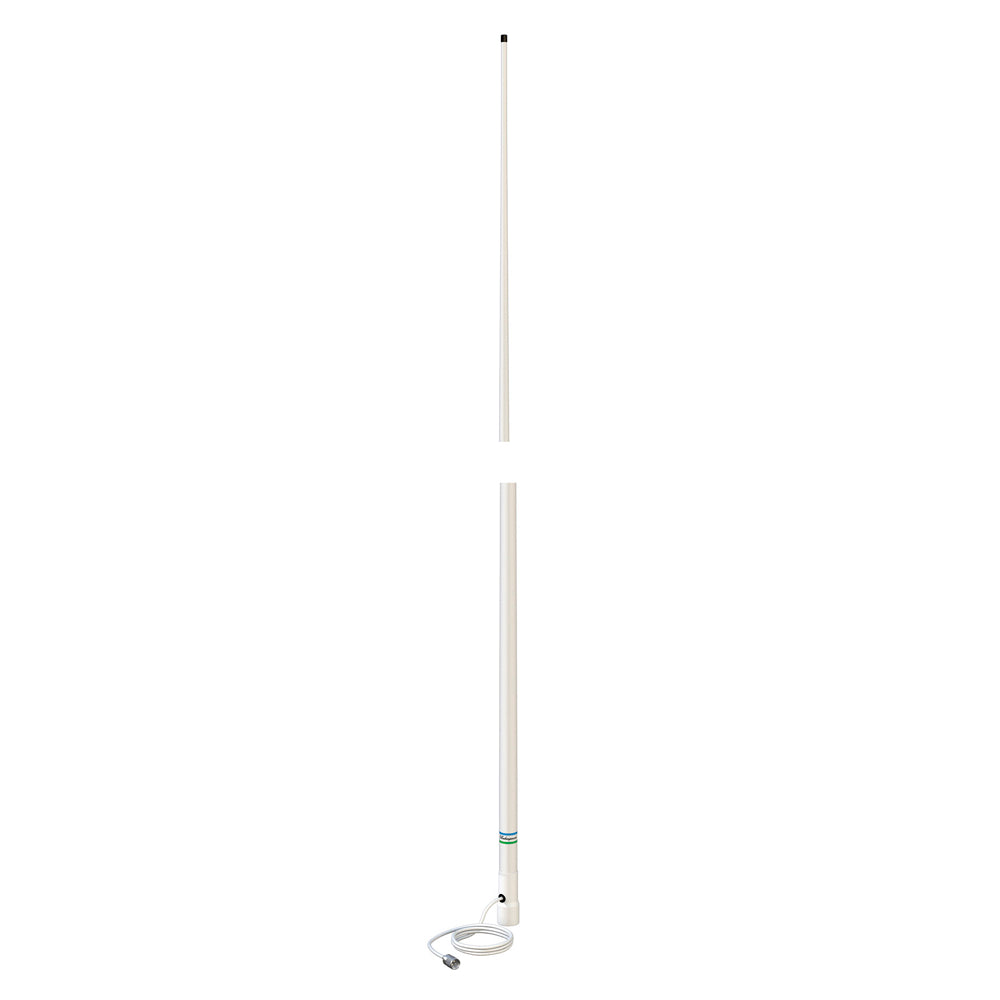

Shakespeare 5206-N 8' VHF Antenna [5206-N]

Shakespeare Style 5206-N VHF Marine - Reduced Length Version8' LENGTH 6dBEND-FED WITH MATCHING STUBSame as the Style 5206-C, but the 5206-N has a nylon ferrule.An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor. Quality copper cable elements for good range and efficiency Nylon ferrule with standard 1"-14 thread Includes 15' RG-58 cable and a PL-259 connector Suggested mount: Shakespeare Style 495 Lift-n-Lay Mount or Style 4186 Ratchet Mount Twin to: Shakespeare Styles 5205 and 5207 CB Marine antennas One section Shakespeare Limited Warranty: 2 years Technical Specifications: Frequency: VHF Marine band Bandwidth: 3 MHz SWR: 1.5:1 @156.8 MHz Impedance: (Ohms): 50 Gain: 6 dB Max Input (Watts): 50 DC Ground: NO - the antenna will read "open circuit" when checked with an ohm meter or continuity tester. Termination: RG-58 Height (feet): 8 Polarization: Vertical Radiation pattern: Omni-directional Specifications: Antenna Band: VHF Color: White Construction: Fiberglass Ferrule Type: Nylon Length (Inches): 96" Box Dimensions: 3"H x 3"W x 95"L WT: 2.4 lbs UPC: 719441100186 Quick Guide (pdf)
