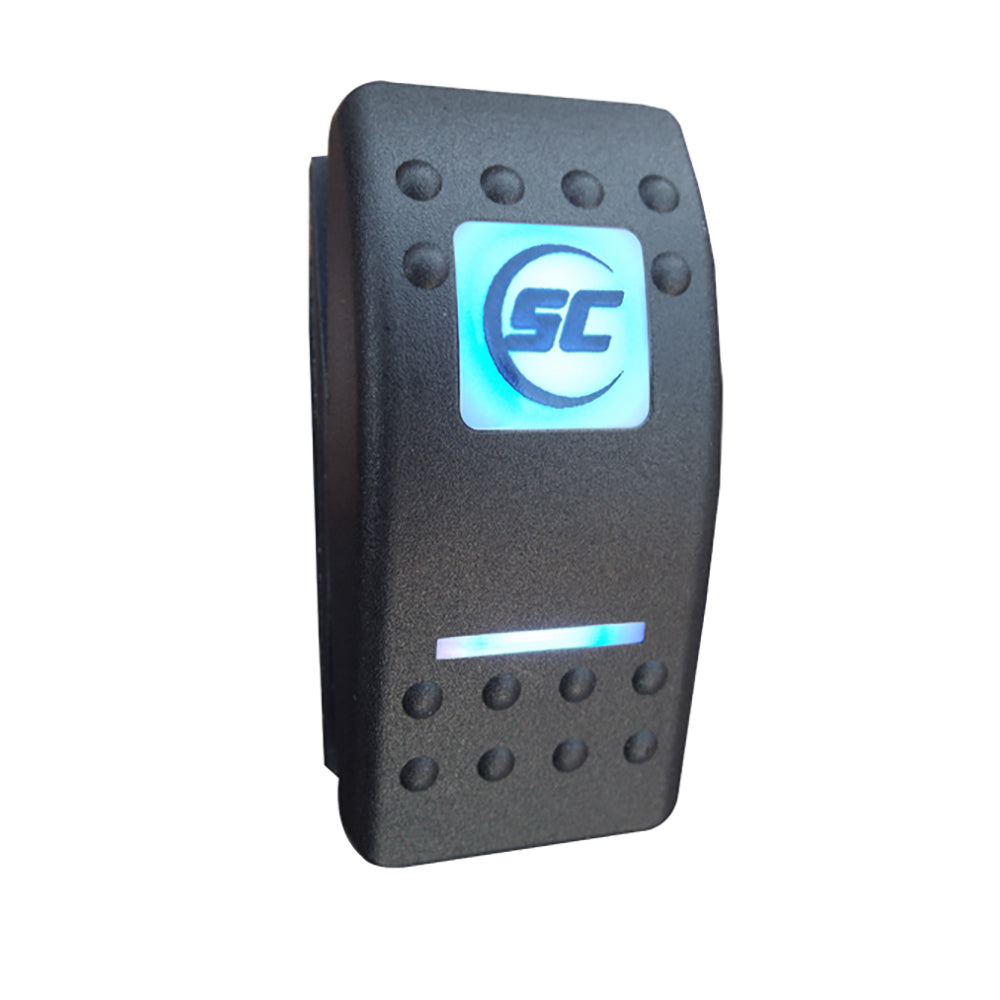

Shadow-Caster 3-Position On/Off/Momentary Marine LED Lighting Switch [SCM-SWITCH-O/O/M]

3-Position On/Off/Momentary Marine LED Lighting SwitchOn / Off / Momentary Marine LED Lighting Switch for two-color and multi-color lighting – simply toggle power to set color choice. For use with fishing boats, pontoon boats, sports boats, and yachts.Features: Power On/Off Color change Multiple fade mode changes Specifications: Off/On/Momentary LED Voltage Rating: 12V (Add 600ohm resistor between pin 7 and ground for 24V operation) LED Color: Blue x 2 Terminals: Brass or copper/silver plate 1/4” (6.3mm) quick connect Sealing IP66/68, for above-panel components of actual switch only Operating Temp. -40°C to +85°C Contact Rating: 20 amps, 4-14VDC and 15 amps, 15-28VDC Switch and actuator color: Black Note: Use with SCM-SNLC single-zone lighting controller to access full ShadowNET® lighting control functionality.
