Schaefer Stand-Up Swivel w/Aluminum Cheeks [504-62]

Schaefer Stand-Up Swivel w/Aluminum Cheeks [504-62]

Stand-Up Swivel with Aluminum CheeksDelrin™ sheave ensures smooth operation and high safe working load. Specifications: Sheave Dia. 2" (51 mm) Max Line 7/16" (11 mm) Diameter includes urethane base 2-7/8" (73 mm) Height 4-1/32" (103 mm) H2 2-3/32" (54 mm) Fastener Size (4), #10 RH (5 mm) C/C 1-12/31" (36 mm) SWL 1750 lbs. (790 kg) Weight Alum. 7.0 oz. (198 g) #97-48 BACKING PLATE SOLD SEPARATELY
SKU: PM-74717
Availability: 3 In Stock
$173.00
$212.90
$173.00
Subtotal: $173.00
10 customers are viewing this product
Schaefer Stand-Up Swivel w/Aluminum Cheeks [504-62]

Schaefer Stand-Up Swivel w/Aluminum Cheeks [504-62]

$212.90 $173.00
Schaefer Stand-Up Swivel w/Aluminum Cheeks [504-62]

Schaefer Stand-Up Swivel w/Aluminum Cheeks [504-62]

$212.90 $173.00
Description

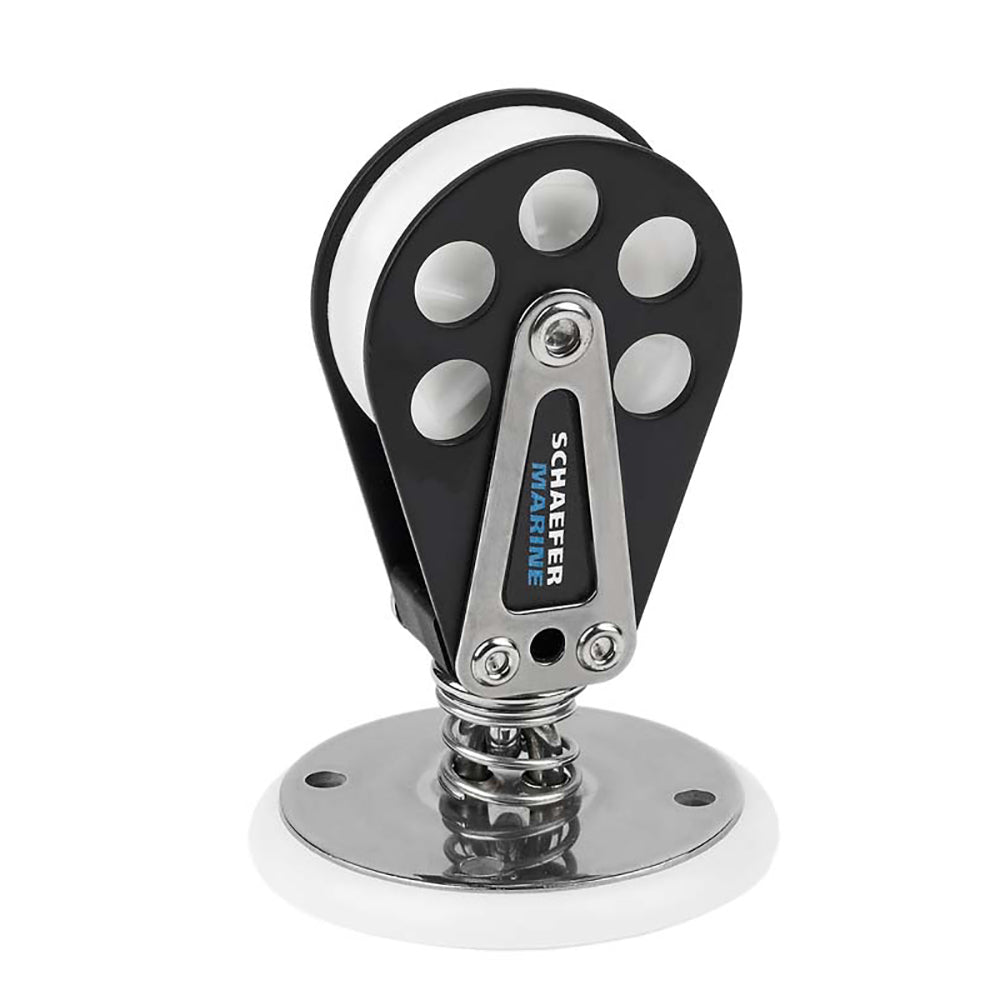

Stand-Up Swivel with Aluminum Cheeks

Delrin™ sheave ensures smooth operation and high safe working load.

Specifications:

  • Sheave Dia. 2" (51 mm)
  • Max Line 7/16" (11 mm)
  • Diameter includes urethane base 2-7/8" (73 mm)
  • Height 4-1/32" (103 mm)
  • H2 2-3/32" (54 mm)
  • Fastener Size (4), #10 RH (5 mm)
  • C/C 1-12/31" (36 mm)
  • SWL 1750 lbs. (790 kg)
  • Weight Alum. 7.0 oz. (198 g)
  • #97-48 BACKING PLATE SOLD SEPARATELY
