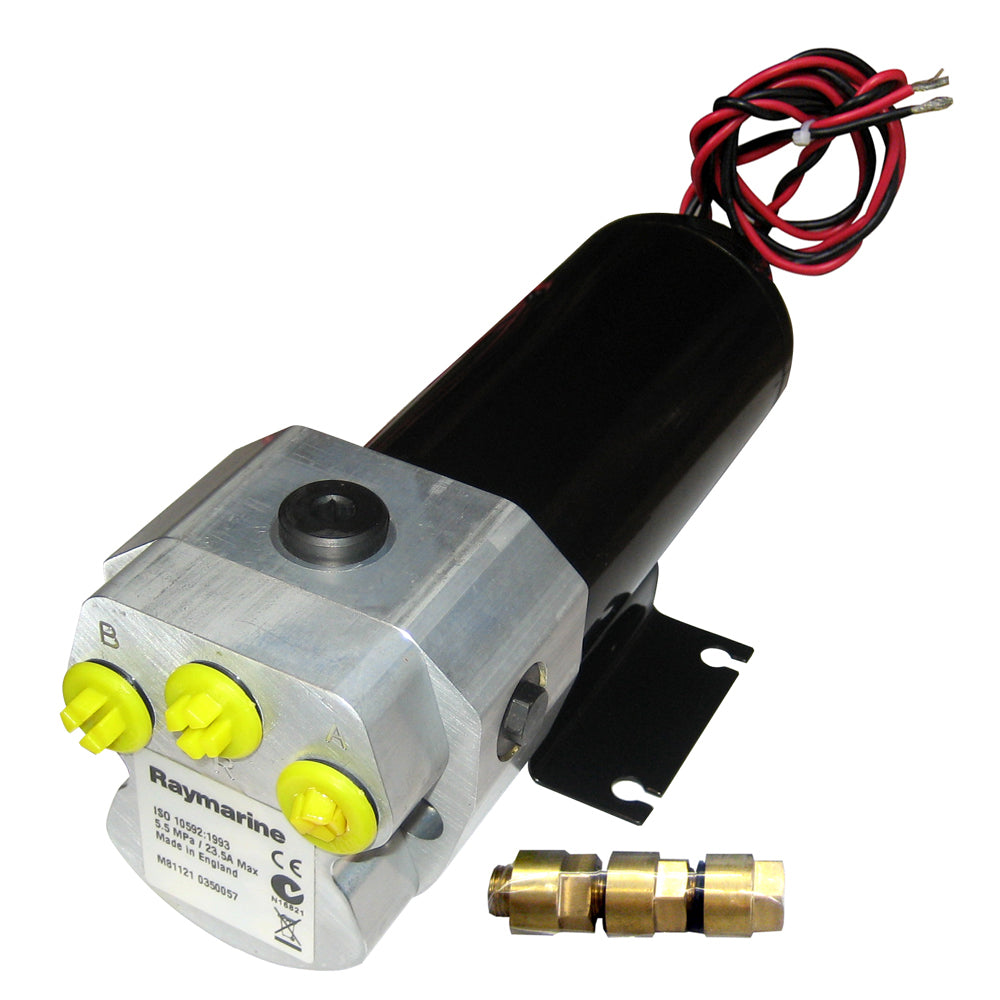

Raymarine Type 1 Pump 12V [M81120]

Type 1 Pump 12voltReversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams. The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepackCorepack Used S1 or S1GRam Capacity 4.9in - 10.5in (80CC-172CC)Maximum Stall Pressure at 12V 750psi (50bar) (no load) 67in/min (1000cc/min)Corepack Used S2 or S2GRam Capacity 4.9in - 14in (80cc - 230cc)Maximum StallPressure at 12V 750psi (50bar)Peak Flow Rate(no load) 67in/min (1000CC/min) Specifications: Type: Pumps/Drives Box Dimensions: 4"H x 5"W x 10"L WT: 5.6 lbs UPC: 023193811208 Owner's Manual (pdf)
