Raymarine EV-200 Sail Evolution Autopilot [T70155]

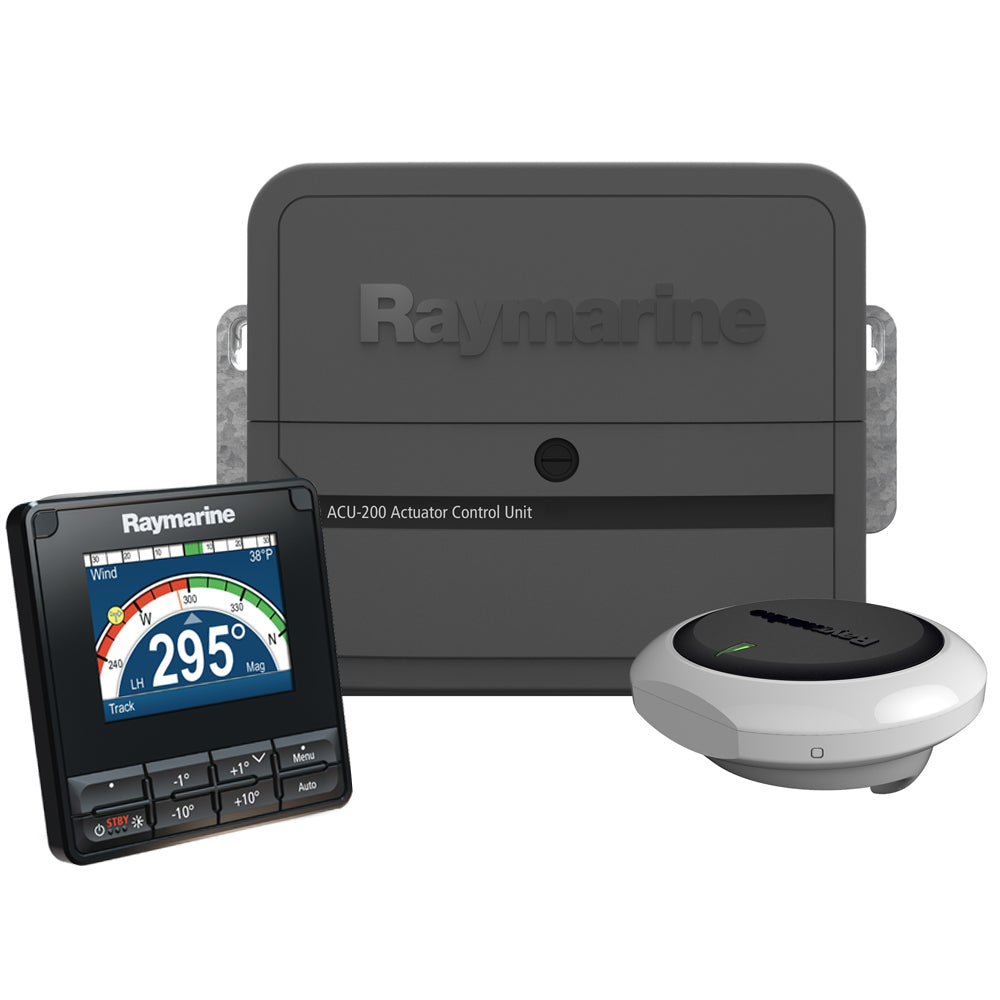

EV-200 Sail Evolution AutopilotFeatures: Evolution Ai for superior performance No calibration required Use with any Type 1 Linear or Rotary Drive Unit (sold separately) 12V or 24V DC operation SeaTalkng Network Compatible ACU-200 auxiliary power to SeaTalkng network Includes p70s Autopilot Controller Includes: EV-1 Sensor Core p70s Autopilot Control Head ACU-200 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference) Evolution Cabling Kit EV Unit O-Ring Pack (set of 2) Wall Mounting Bracket The EV Sensor CoreAt the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing.Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards.The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalkng networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalkng and NMEA2000 networks.Features: Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change Flexible installation options Mount above or below deck Simple SeaTalkng connectivity to the control head and ACU Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays p70s Autopilot Control HeadThe p70s is a push-button operation controller designed primarily for sailboats.Superior ViewingAdvanced LED backlighting offers low power consumption and delivers vibrant color and contrast. Wide horizontal and vertical viewing angles ensure the display can be seen clearly from acute positions.Features: LightHouse user interface is simple and quick to use Wide 160° viewing angles Start up wizard helps you configure the pilot quickly and easily Anti-reflective coating for improved visibility in bright sunlight Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer Simple system and group dimming/illumination Support for multiple data sources SeaTalkng/NMEA2000 and SeaTalk1 connectivity (no bridging required) ACU-200 Autopilot Control Unit (ACU)The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.Supported Drive UnitsType 1 Linear or Rotary Drive Units (sold separately)Evolution Cabling Kit 1 x SeaTalkng Power Cable (0.4m) 1 x SeaTalkng Backbone Cable (5m) 1 x SeaTalkng Spur Cable (0.4m) 1 x SeaTalkng 5-way Connector Block 2 x SeaTalkng T-piece Connector 2 x SeaTalkng Terminator Specifications: Type: Parts Box Dimensions: 8"H x 17"W x 21"L WT: 13.1 lbs UPC: 723193774298 Quick Guide (pdf)Brochure (pdf)
