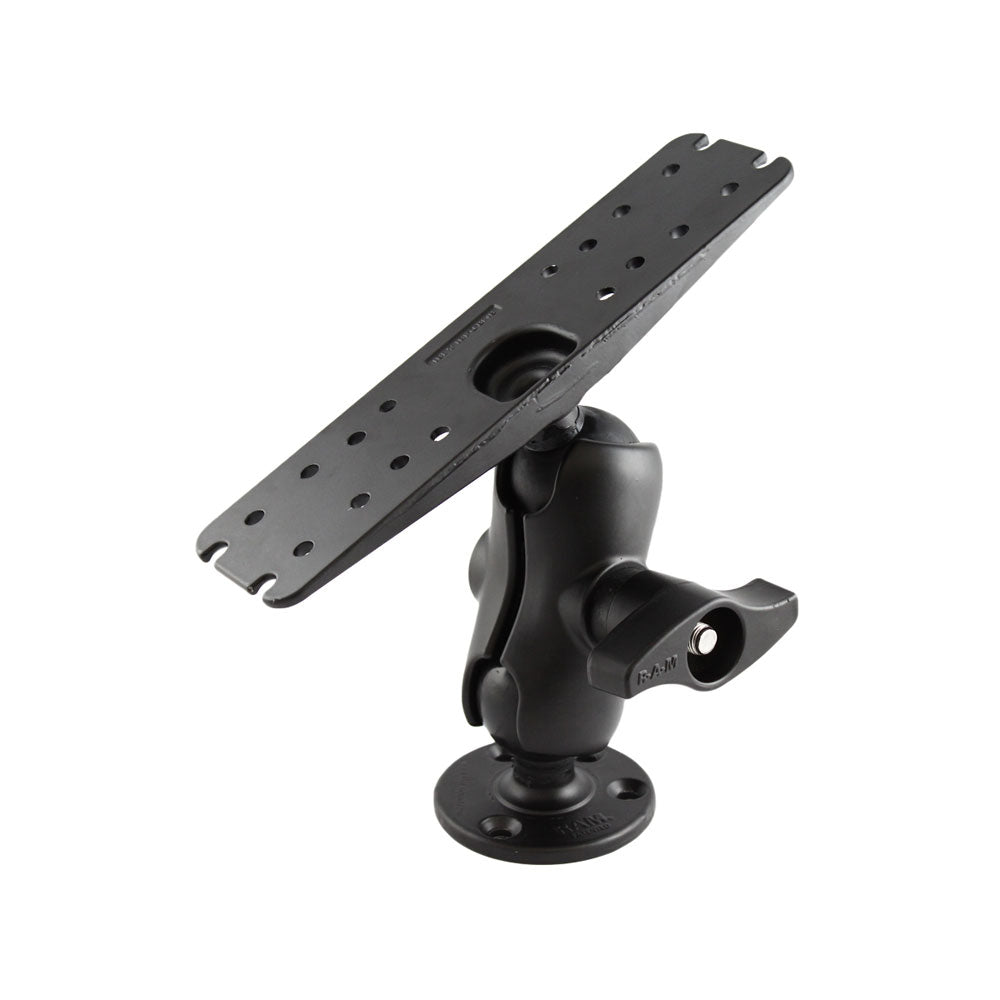

RAM Mount Marine Electronics Mount - Gimbal Bracket Under 15lbs. [RAM-D-111U-C]

RAM 2.25" Diameter Ball Mount with 11" X 3" Rectangle Base, & 3.68" Round BaseThe RAM-D-111U-C consists of a short double socket arm, 3.68" diameter round base and 11" x 3" rectangular base. The round base contains pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more. The RAM-D-111U-C is Compatible With:Garmin Fishfinders and GPS ChartplottersHumminbird Fishfinders and GPS ChartplottersLowrance Fishfinders and GPS ChartplottersRaymarine Fishfinders and GPS Chartplotters Overall Height:8.125" Weight Capacity: Up to 15 lbs. Weight: 3.45 lbs. Material: Powder Coated Marine Grade Aluminum Ball Size: 2.25" Rubber "D" Ball Size Note: The "U" in the part number reflects product packaged in poly bag. The 11" x 3" rectangle base is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
