Pacer 12-10 AWG Heat Shrink Spade Terminal - #8 Stud Size - 100 Pack [TE10-8SLF-100]

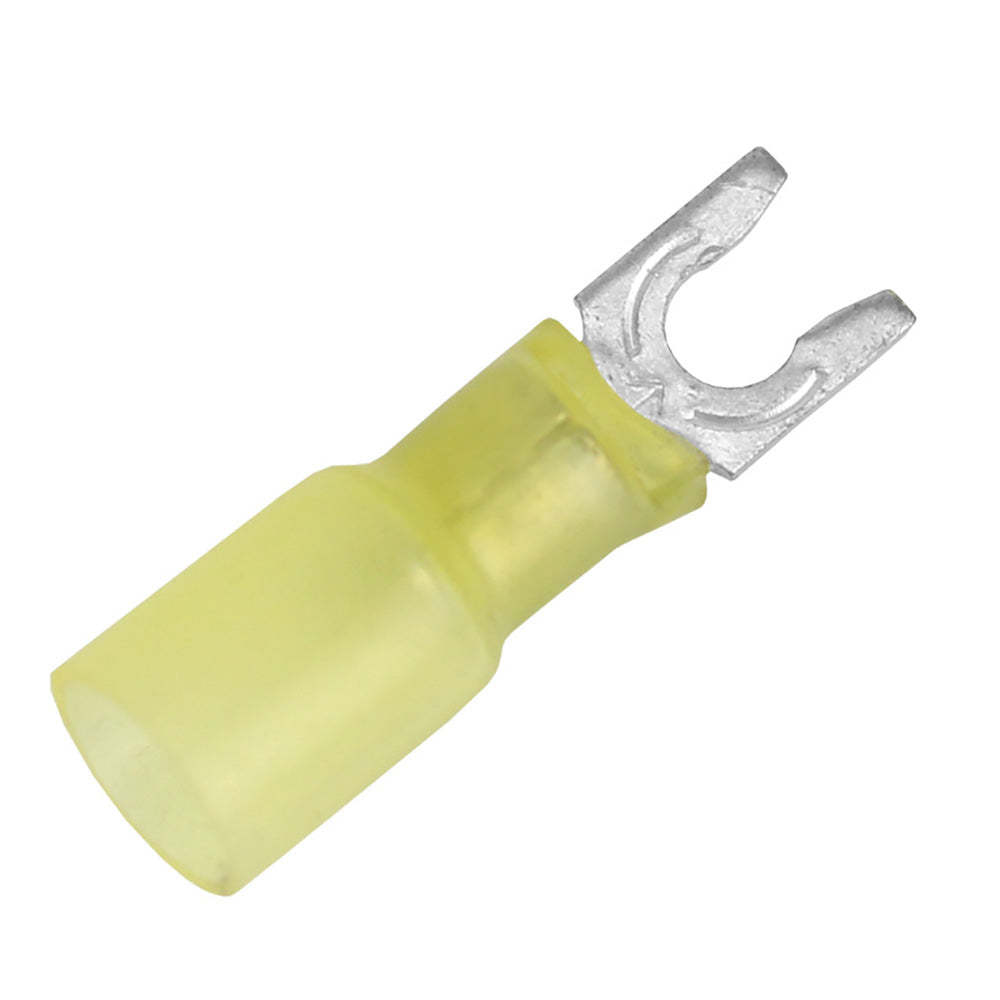

12-10 AWG Heat Shrink Spade Terminal - #8 Stud Size - 100 PackFork terminals connect wires to a stud, bus bar, or another part of an electrical system. Fork terminals help prevent frayed wires and offer a high level of protection. In an electrical environment, vibration is often a factor. Standard lock terminals will disconnect should the holding screw loosen. Locking fork terminals have a projection inside the forks, causing the terminals to snap onto the screw. Flanged fork terminals have the ends of the forks turned up. These designs will keep the terminal fastened even if the holding screw loosens.Features: High-quality tinned copper for corrosion resistance Efficient installation Creates solid connections Meets multiple compliances Benefits: Environmentally sealed Easy to Install Built for durability Long-lasting Specifications: Color: Yellow Wire AWG: 12-10 AWG Stud Size: #8 Terminal Pad Width (inch): 0.39” Package Size: One-hundred included Specifications: Gauge: 12-10 AWG Heat Shrink: Yes Package Qty: 100 Post Size: #8 Type: Spade connectors Box Dimensions: 2"H x 3"W x 8"L WT: 0.4 lbs UPC: 840248206488 Quick Guide (pdf)
