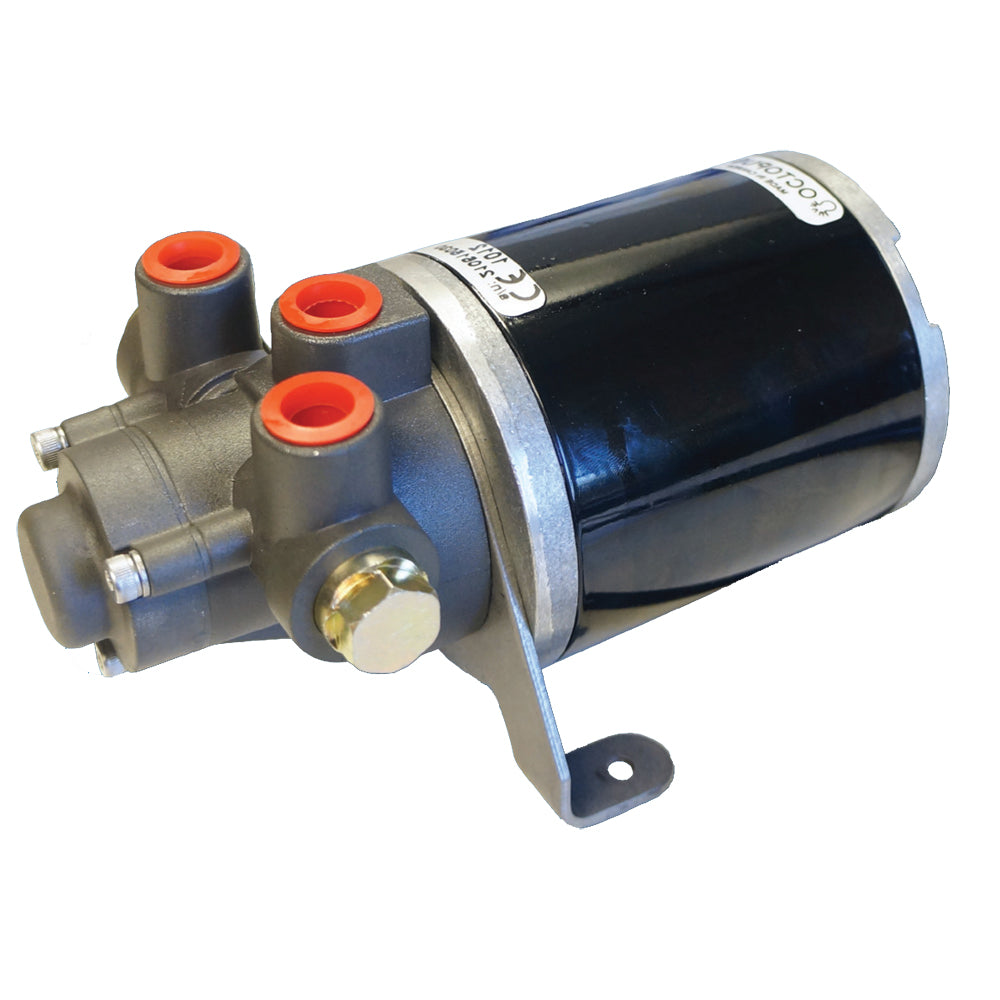

Octopus Hydraulic Gear Pump 12V 16-24CI Cylinder [OCTAFG1612]

Hydraulic Gear Pump 12V 16-24CI CylinderFrom the design team that brought you the legendary Octopus hydraulicdrives, our new gear pump offers industry leading reliability andperformance in a smaller, lighter, quieter package.Features: Industry leading efficiency - lower power consumption, particularlyunder demanding conditions requiring higher flow rates equates to a majoradvantage over competing units. Cost saving - the increased efficiency and performance means the pumpscan be used with smaller autopilot course computers than equivalent driveunits. The smaller footprint of the compact gear pump increases installationflexibility. Lower noise and vibration make the gear pump particularly suitable forsailboat installations. Suitable for balanced or unbalanced cylinders. All models available for both 12v and 24v systems. Specifications: Flow Rate: 1600CC/min Voltage: 12 Volt Cylinder Range: 16-24ci CYLINDER Average Current Draw: 6.6A Operating Temperature: -15 to +75'C (5 - 167'F) Waterproofing: IP55 Ignition Protection: ISO 8846 & SAEJ1171 EMC Compliance: EN60945-9-2002 Specifications: Type: Pumps/Drives Box Dimensions: 4"H x 4"W x 10"L WT: 5.1 lbs UPC: 628309201616 Quick Guide (pdf)
