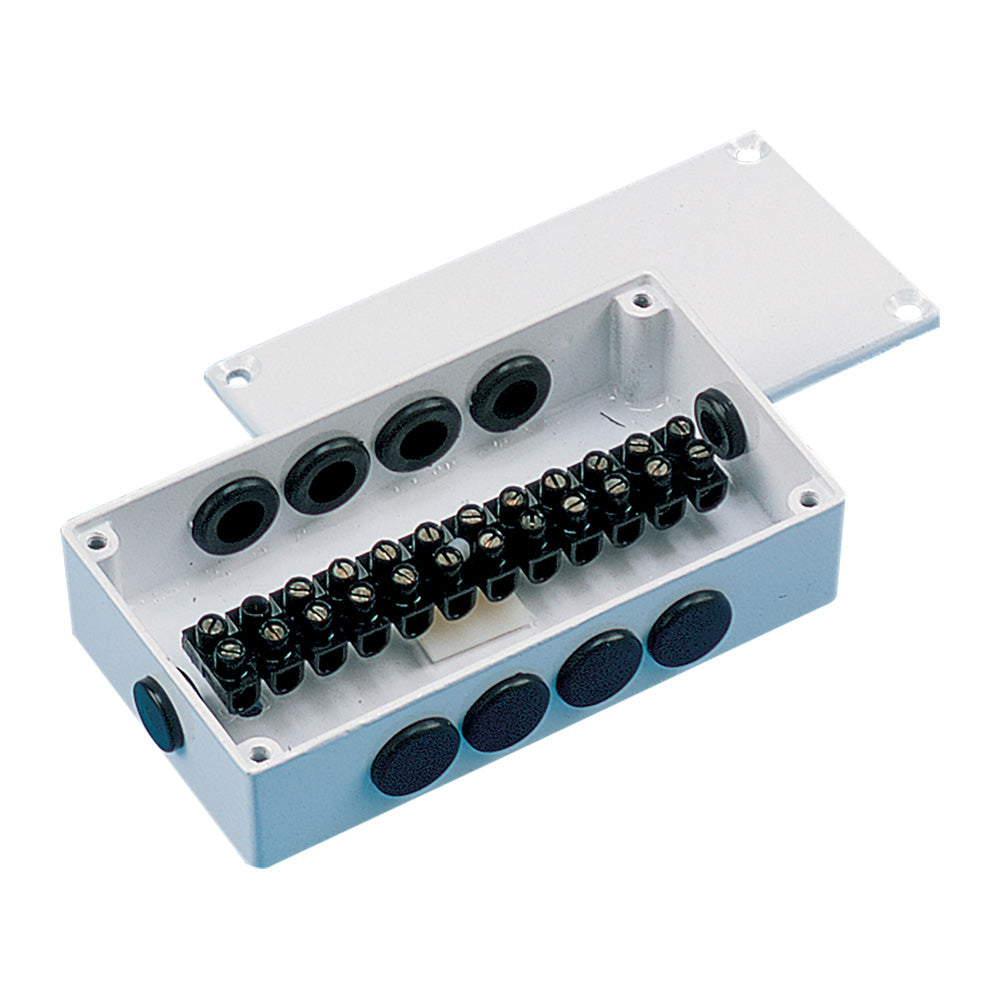

Newmar BX-2 Junction Box [BX-2]

BX-2 Junction BoxThis BX Series splashproof box provides secure, protected wiring connections in wheelhouses or below decks and engine rooms. Features: IP rating 54 – “Splashproof” Rugged cast aluminum box with white enamel finish Metal box reduces electrical interference Easy wiring access through multiple grommeted cable entries Supplied with high-quality connector strips – secure wires with compression fittings – no terminals required – see matrix below for connector strips specifications per box Specifications: Number of Connector Strips: 1 Positions per Strip: 12 Max Wire Gauge: 16 Max Amps (per position): 6  Cable Entries: 8 Cable Diameter: 0.37 in. Box Size: 4.4 x 2.4 x 1.2 in. Box Size: 11.2 x 6.1 x 3.1 cm Specifications: Type: Junction Box Box Dimensions: 2"H x 4"W x 8"L WT: 0.45 lbs
