Navico xSonic TM275LH-W TM CHIRP Transducer Wide Angle [000-13770-001]

Navico xSonic TM275LH-W TM CHIRP Transducer Wide Angle [000-13770-001]

xSonic TM275LH-W TM CHIRP Transducer Wide AngleThe TM275LH-W is a urethane, transom-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25x beam width for the best resolution and coverage in the upper water column and in shallower depths.Features: 42-65 kHz Low CHIRP with 25-16x beam width 150-250 kHz High CHIRP with wide 25° beam for excellent fish targets Up to 1200 m (4000 ft) range with Low CHIRP 8 internal broadband ceramics Transom-mounted with urethane housing and stainless steel mounting bracket (can retrofit to existing TM258 & TM260 brackets) Suitable for fiberglass, wood and metal hulls Ideal for sportfishing and commercial vessels 8 m (25 ft) and up Recommended for use with the BSM-3 broadband sounder module Specifications: Mounting Style: Transom Box Dimensions: 8"H x 11"W x 12"L WT: 11.4 lbs UPC: 9420024161814
SKU: PM-65165
Availability: 1 In Stock
$2,062.00
$2,159.00
$2,062.00
Subtotal: $2,062.00
10 customers are viewing this product
Navico xSonic TM275LH-W TM CHIRP Transducer Wide Angle [000-13770-001]

Navico xSonic TM275LH-W TM CHIRP Transducer Wide Angle [000-13770-001]

$2,159.00 $2,062.00
Navico xSonic TM275LH-W TM CHIRP Transducer Wide Angle [000-13770-001]

Navico xSonic TM275LH-W TM CHIRP Transducer Wide Angle [000-13770-001]

$2,159.00 $2,062.00
Description

xSonic TM275LH-W TM CHIRP Transducer Wide Angle

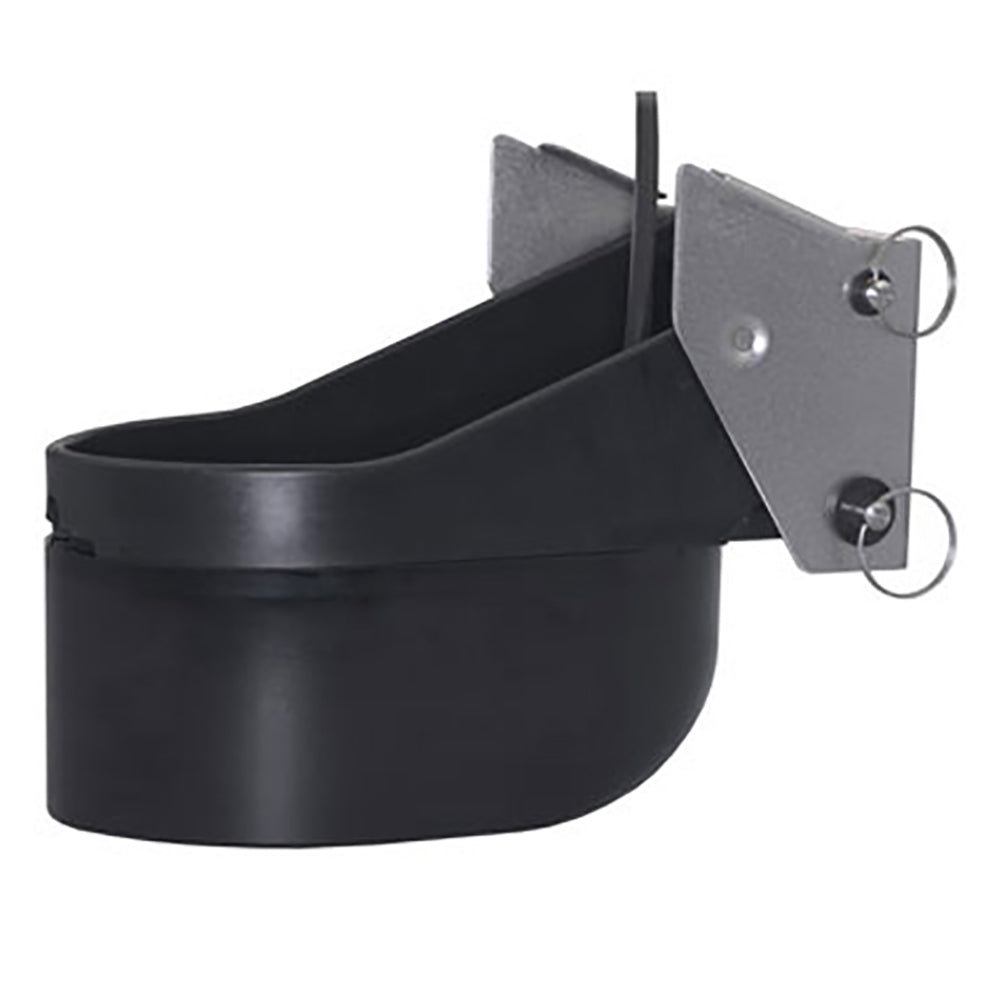

The TM275LH-W is a urethane, transom-mounted CHIRP transducer, ideal for sportfishing and commercial vessels 8 m (25 ft) and up. This dual-channel transducer combines Low CHIRP frequencies to accurately track the bottom in deep water, with High CHIRP at a constant 25x beam width for the best resolution and coverage in the upper water column and in shallower depths.

Features:

  • 42-65 kHz Low CHIRP with 25-16x beam width
  • 150-250 kHz High CHIRP with wide 25° beam for excellent fish targets
  • Up to 1200 m (4000 ft) range with Low CHIRP
  • 8 internal broadband ceramics
  • Transom-mounted with urethane housing and stainless steel mounting bracket (can retrofit to existing TM258 & TM260 brackets)
  • Suitable for fiberglass, wood and metal hulls
  • Ideal for sportfishing and commercial vessels 8 m (25 ft) and up
  • Recommended for use with the BSM-3 broadband sounder module

Specifications:

  • Mounting Style: Transom
  • Box Dimensions: 8"H x 11"W x 12"L WT: 11.4 lbs
  • UPC: 9420024161814
