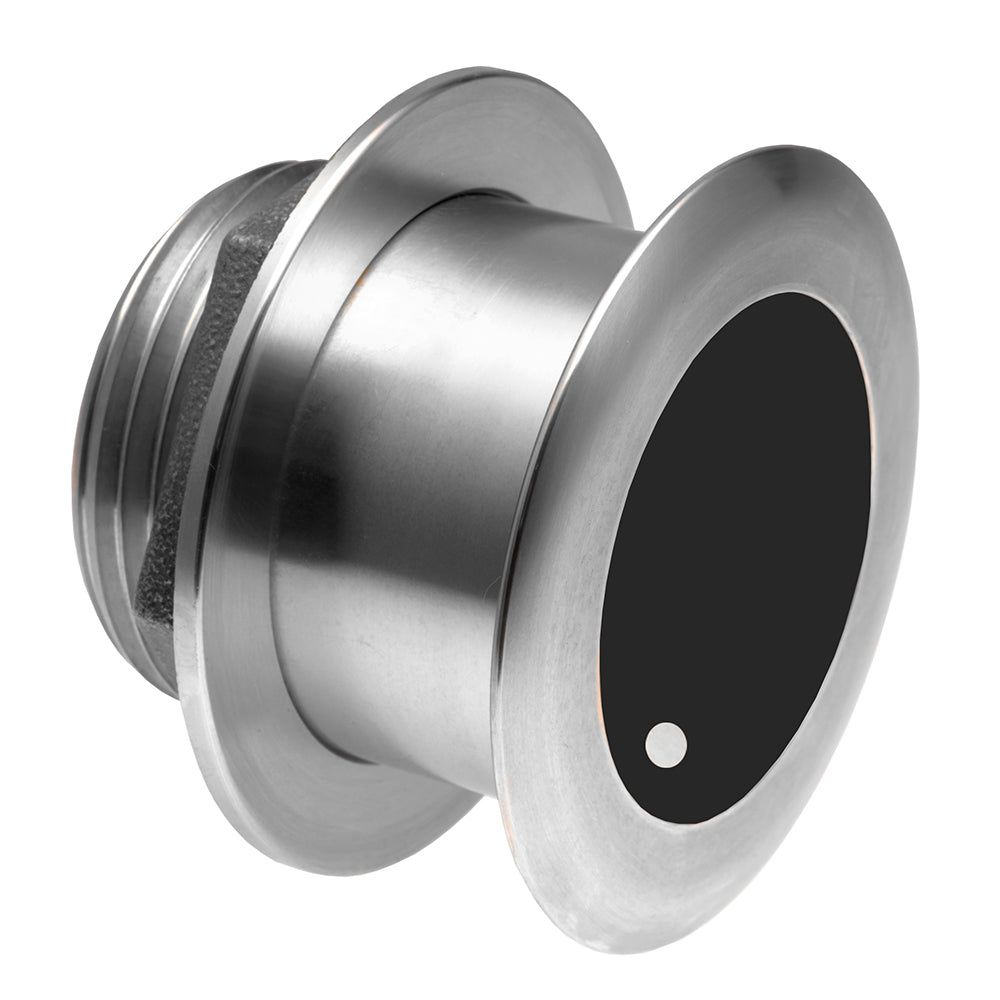

Navico xSonic SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin [000-13782-001]

Navico xSonic SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin [000-13782-001]

xSonic SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin ConnectorSS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.*This Transducer is designed for smaller boats up to 36 feet (11 m).Features Frequencies: 130-210 kHz @ 25° constant beamwidth 16° - 25° Deadrise 300m+ Usable Depth 6m+ or large Boat size with Steel or Aluminum hulls Depth & Temperature CHIRP Technology High-Performance Stainless Steel Exclusive Transducer ID 9-Pin Connector, 10M Cable Specifications: Temperature: Yes Speed Included: No Mounting Style: Thru-Hull Cable Length (Feet): 10m Pins: 9 Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs UPC: 9420024161937
SKU: PM-65017
Availability: Out Of Stock
$1,584.00
$1,659.00
$1,584.00
Subtotal: $1,584.00
10 customers are viewing this product
Navico xSonic SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin [000-13782-001]

Navico xSonic SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin [000-13782-001]

$1,659.00 $1,584.00
Navico xSonic SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin [000-13782-001]

Navico xSonic SS175H-W/20 Stainless Steel 1KW 20 Tilted Element Transducer - 9 Pin [000-13782-001]

$1,659.00 $1,584.00
Description

xSonic SS175H-W/20 Stainless Steel Chirp Transducer - 20° 1KW Tilted Element - 9 Pin Connector

SS175H-W/20 CHIRP Transducers enable bottom detection down to 300m+ with 5 to 10 times greater detail and Resolution so precise it's possible to distinguish between individual bait Fish, game Fish, and underwater structures.

*This Transducer is designed for smaller boats up to 36 feet (11 m).

Features

  • Frequencies: 130-210 kHz @ 25° constant beamwidth
  • 16° - 25° Deadrise
  • 300m+ Usable Depth
  • 6m+ or large Boat size with Steel or Aluminum hulls
  • Depth & Temperature
  • CHIRP Technology
  • High-Performance
  • Stainless Steel
  • Exclusive Transducer ID
  • 9-Pin Connector, 10M Cable

Specifications:

  • Temperature: Yes
  • Speed Included: No
  • Mounting Style: Thru-Hull
  • Cable Length (Feet): 10m
  • Pins: 9
  • Box Dimensions: 8"H x 11"W x 12"L WT: 10.5 lbs
  • UPC: 9420024161937
