Navico xSonic Bronze 20 HDI Transducer Thru Hull 9 Pin Connector 10M Cable [000-13907-001]

Navico xSonic Bronze 20 HDI Transducer Thru Hull 9 Pin Connector 10M Cable [000-13907-001]

xSonic Bronze 20° HDI Transducer Thru Hull 50/200 455/800 with 9 pin connector and 10M CableBronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducer Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature 20 degree tilt 10M Cable Beam Width: 50kHz @ 45°, 200kHz @ 11° 455kHz- Fore to aft 2.8°, Port to starboard 56°, 800kHz Fore to aft 1.6° Port to starboard 32° Specifications: Speed Included: No Pins: 9 Mounting Style: Thru-Hull Temperature: Yes Cable Length (Feet): 10m Box Dimensions: 4"H x 8"W x 10"L WT: 4.7 lbs UPC: 9420024162620
SKU: PM-64603
Availability: Out Of Stock
$516.00
$540.00
$516.00
Subtotal: $516.00
10 customers are viewing this product
Navico xSonic Bronze 20 HDI Transducer Thru Hull 9 Pin Connector 10M Cable [000-13907-001]

Navico xSonic Bronze 20 HDI Transducer Thru Hull 9 Pin Connector 10M Cable [000-13907-001]

$540.00 $516.00
Navico xSonic Bronze 20 HDI Transducer Thru Hull 9 Pin Connector 10M Cable [000-13907-001]

Navico xSonic Bronze 20 HDI Transducer Thru Hull 9 Pin Connector 10M Cable [000-13907-001]

$540.00 $516.00
Description

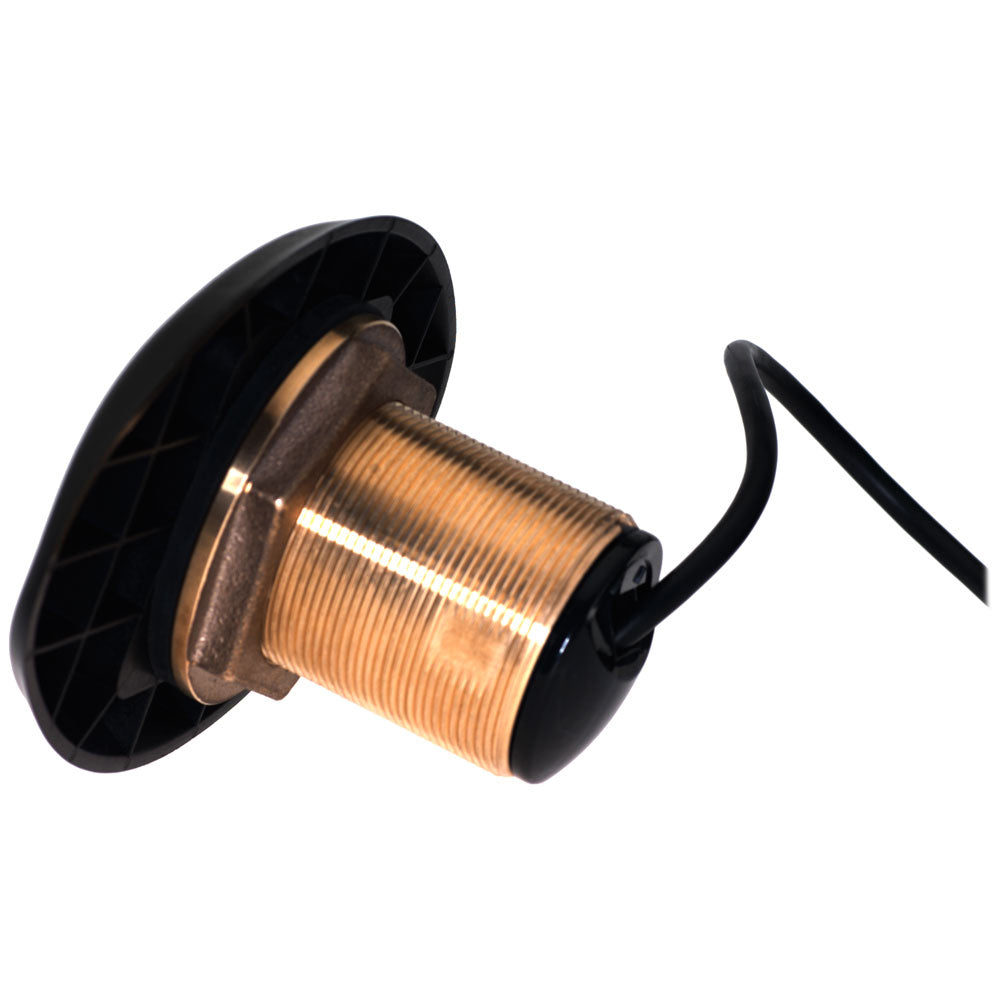

xSonic Bronze 20° HDI Transducer Thru Hull 50/200 455/800 with 9 pin connector and 10M Cable

Bronze Hybrid Dual Imaging™ (HDI) tilted element thru hull transducer

  • Provides 50/200kHz traditional frequencies PLUS 455/800kHz Down Scan Imaging plus temperature
  • 20 degree tilt
  • 10M Cable
  • Beam Width: 50kHz @ 45°, 200kHz @ 11° 455kHz- Fore to aft 2.8°, Port to starboard 56°, 800kHz Fore to aft 1.6° Port to starboard 32°

Specifications:

  • Speed Included: No
  • Pins: 9
  • Mounting Style: Thru-Hull
  • Temperature: Yes
  • Cable Length (Feet): 10m
  • Box Dimensions: 4"H x 8"W x 10"L WT: 4.7 lbs
  • UPC: 9420024162620
