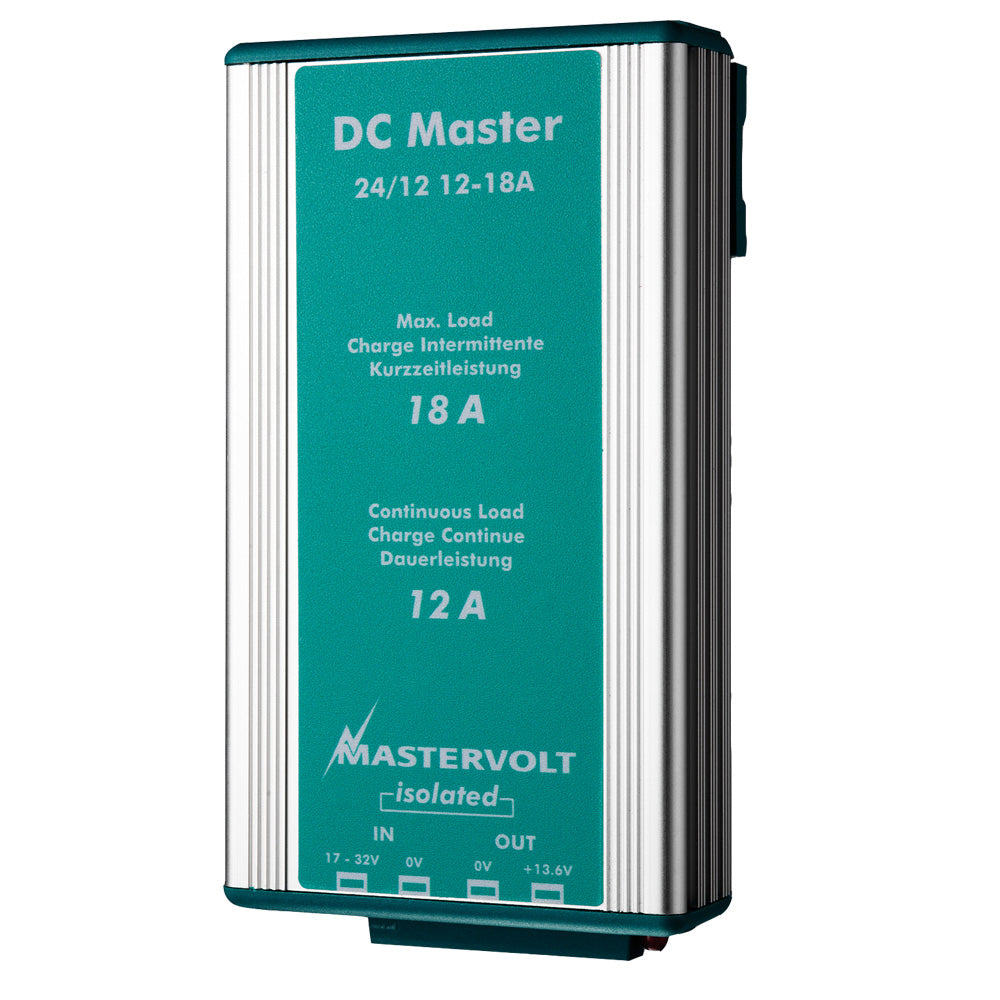

Mastervolt DC Master 24V to 12V Converter - 12 Amp [81400300]

DC Master 24V to 12V Converter - 12 AmpAlways on course with Mastervolt. Mastervolt ensures you an electrical system with no weak links and a dependable and silent power supply. Whether for recreational or professional purposes, with Mastervolt you always have power you can rely on... The power to be independent.DC Master DC-DC convertersThe required voltage for DC current can vary. Some equipment requires 24 V, while onboard equipment usually requires 12 V. For custom DC current, Mastervolt offers a series of compact and made to measure DC-DC converters for both 12 V and 24 V battery systems that offer stable power with the right current for any connected consumer.Features: Recreational and semi-professional use Easy to install using included mounting bracket, screws and fasteners Smart electronics mean no unnecessary heat generation Continuous output Two minutes of extra power for short power boosts Excellent price/performance ratio General Specifications Nominal output voltage: 13.6 V Max. output power: 245 W Nominal output power: 164 W Max. output current (for 2 min. intervals): 18 A Continuous output current: 12 A Nominal input voltage: 24 V Input voltage range (max.): 20-32 V DC (35 V) Galvanic isolation: no Stabilised: yes Dimensions, hxwxd: 127 x 87 x 50 mm 5.0 x 3.4 x 2.0 inch Weight: 0.405 kg 0.9 lb Compliance: CE Technical Specifications DC consumption: < 15 mA Connections: fast-on Temperature range (ambient temp.): -25 °C to 80 °C, derating > 30 Cooling: natural cooling Protection degree: IP53 WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications: Charger Input - Voltage: 24v Charger Output - Amps: 12a Charger Output Voltage: 12v Box Dimensions: 2"H x 4"W x 6"L WT: 0.95 lbs UPC: 852968002806 Owner's Manual (pdf)Brochure (pdf)
