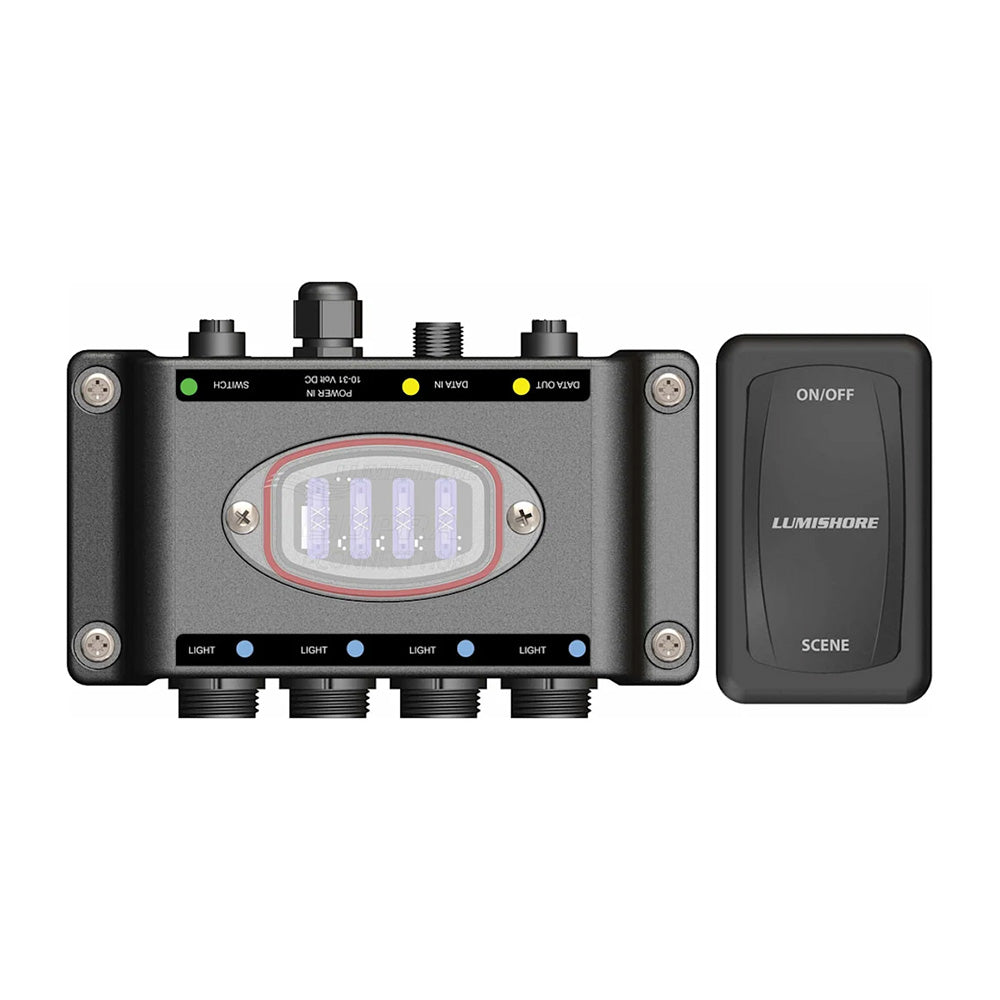

Lumishore SUPRA THS/TIX i-Connect Installation/Upgrade Kit [010-04358-00]

SUPRA THS/TIX i-Connect Installation/Upgrade KitThe SUPRA Installation/Upgrade Kit enhances the function of your Dual Color SUPRA lights!It’s plug-and-play junction box makes for easy installation and includes the fuses and easy-connect terminals for the lights and the switch.This kit is required for all underwater TIX/THX models and optional for the SMX53.Features: Full control via certified MFD or EOS-LUX-SUPRA Display Specially Designed for Ease of Installation Plug and Play Connections IP68 Field Installable Connectors (supplied) Built-in Switching Power Relay Replaceable Blade Fuse For Each Light Status Indication LED for Each Light Built-In Noise Filter Specifications: Number of Lights per Hub: 4 Max Number of Hubs per Installation (Surface Mount): 4 Hubs (16 Lights) Connections: SMX - Field Installable Connector (supplied with Hub) Fuses: Replaceable Blade Fuses. Each Light Individually Fused Status Indication LEDs: Yes – for Each Light Voltage Range: 10.5 – 31V DC Max Input Current: 40 A Max Output Current (i.e., Max Current Per Light): 10 A Cable Entry / Exit: IP68 Connections Switching Method: Built-in Relay Noise Suppression: Built-in Noise Filter Reverse Polarity Protection: Yes Lumi-Link Compatible: Yes Quick Guide (pdf)
