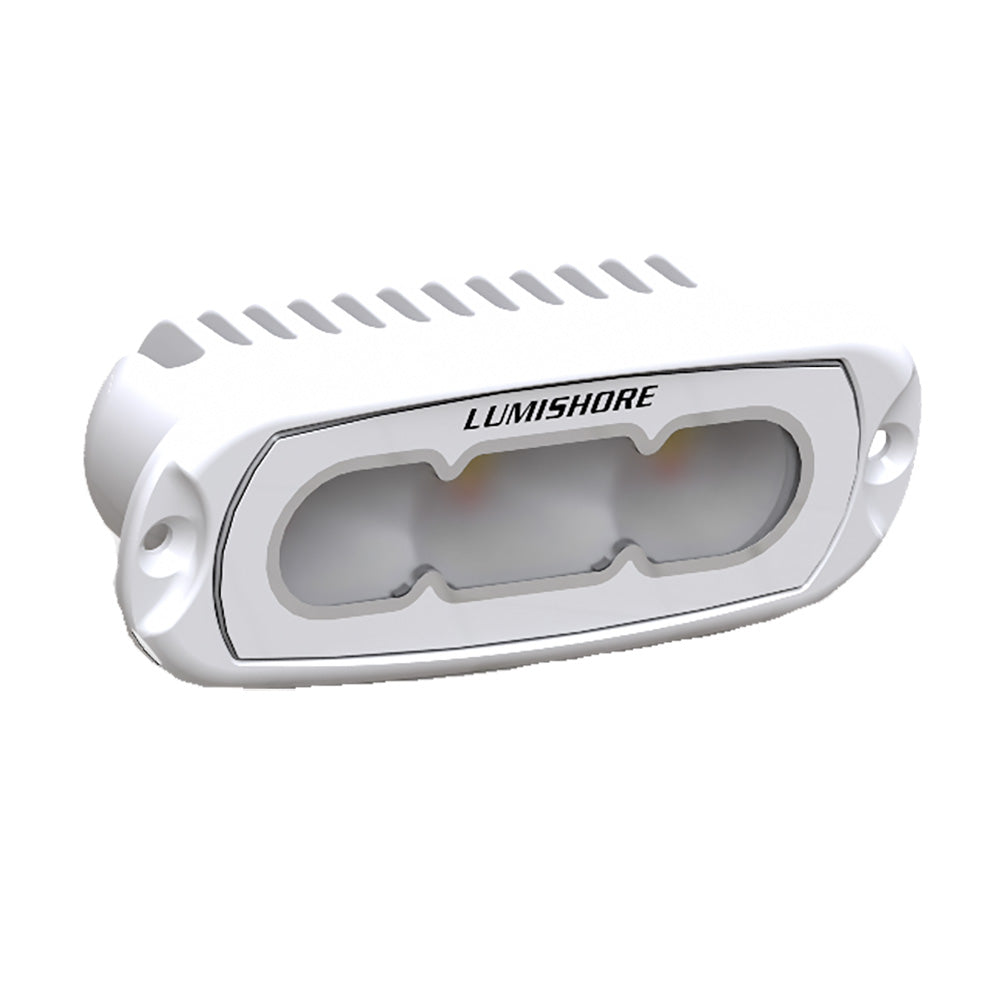

Lumishore LUX 4" Flood Light Flush Fit - CRGBW [010-04500-00]

LUX 4" Flood Light Flush Fit - CRGBWLumishore’s 4” Flush Fit Flood Lights deliver powerful CRGBW illumination in a sleek, low-profile unit. Designed for decks, cockpits, and exterior mounting points like T-tops, arches, and transoms, they offer a wide oval beam (70°–90°) and smooth, blended colors — including both warm and cold white, plus red, green, and blue.Built for harsh marine environments with an IP68 rating and marine-grade aluminum housing. Control via switch, MFD, or Lumishore Display — with dimming as standard.Specifications: Available colors: White Color Temperature Tunable (2700K to 6500K) and Full Spectrum RGB Lumens: 2,360 Fixture Lumens: 1,050 Number & Type Of LED: Warm White, Cold White, Red, Green, and Blue (5 Channel) LED Power HICOB Array: Yes Typical LED Life: 50,000+ Hours Warranty: 3 Years User Control Options: EOS-LUX Command Center or Customer Supplied Momentary Switch Electrical Installation: Simple 3 Wire Connection (see installation manual) Housing Type: Powder Coated Aluminium Body with Frosted Lens Driver: Multi-Channel Internal Supply Voltage Range: 10.5—31 V DC Max Current Draw 12/24V: 1.7 A/0.9 A Beam Angle: 70° - 90° Oval Beam Water Ingress Protection Rating: IP68 Specifications: LED: Yes Voltage - Input Range (Volts): 12/24v Box Dimensions: 4"H x 6"W x 7"L WT: 0.7 lbs UPC: 8477720037678 Quick Guide (pdf)
