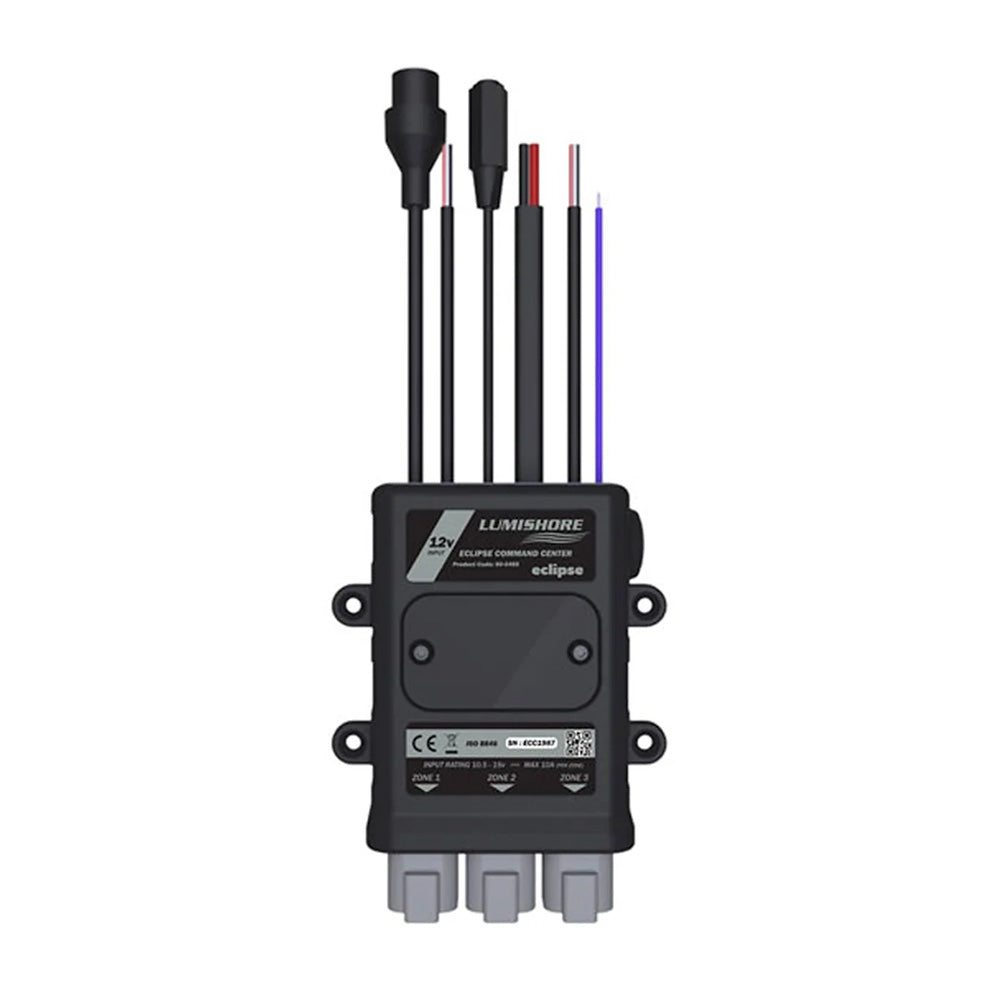

Lumishore ECLIPSE Command Center [010-04486-00]

ECLIPSE Command CenterThe ECLIPSE Command Center allows seamless integration and control of your ECLIPSE lights via your MFD.This is the World’s first ultra-compact box to include built-in drivers and zones for multiple types of lights. With 3 built-in configurable lighting zones that can each be set up to control your lights, and expansion modules available to increase that capability to up to 6 zones.Built-in Wi-Fi allows for direct smart device connectivity. Connect to compatible MFDs via an Ethernet port. Or control your lighting zones via a simple switch.Lumishore’s intuitive interface makes accessing and managing your lighting zones simple!Specifications: Supply Voltage Range: 12V DC Only (10 - 15V DC) Max Current Draw (12/24V DC): 30A (3 Zones of 10A) Surge Protection: Yes Number of Zones: 3 (add 3 more with expansion modules) Max Current Per Zone: 10A Max No. Lights Per Zone: 16 (total current draw must be 10A or less) Low Voltage Protection: Yes Reverse Polarity Protection: Yes Ingress Protection: IP67 Simple Installation: Yes Plug-and-Play Setup: Yes Dimming: Yes Color Selection: Yes Sound-to-light: Yes Strobe: Yes Quick Guide (pdf)
