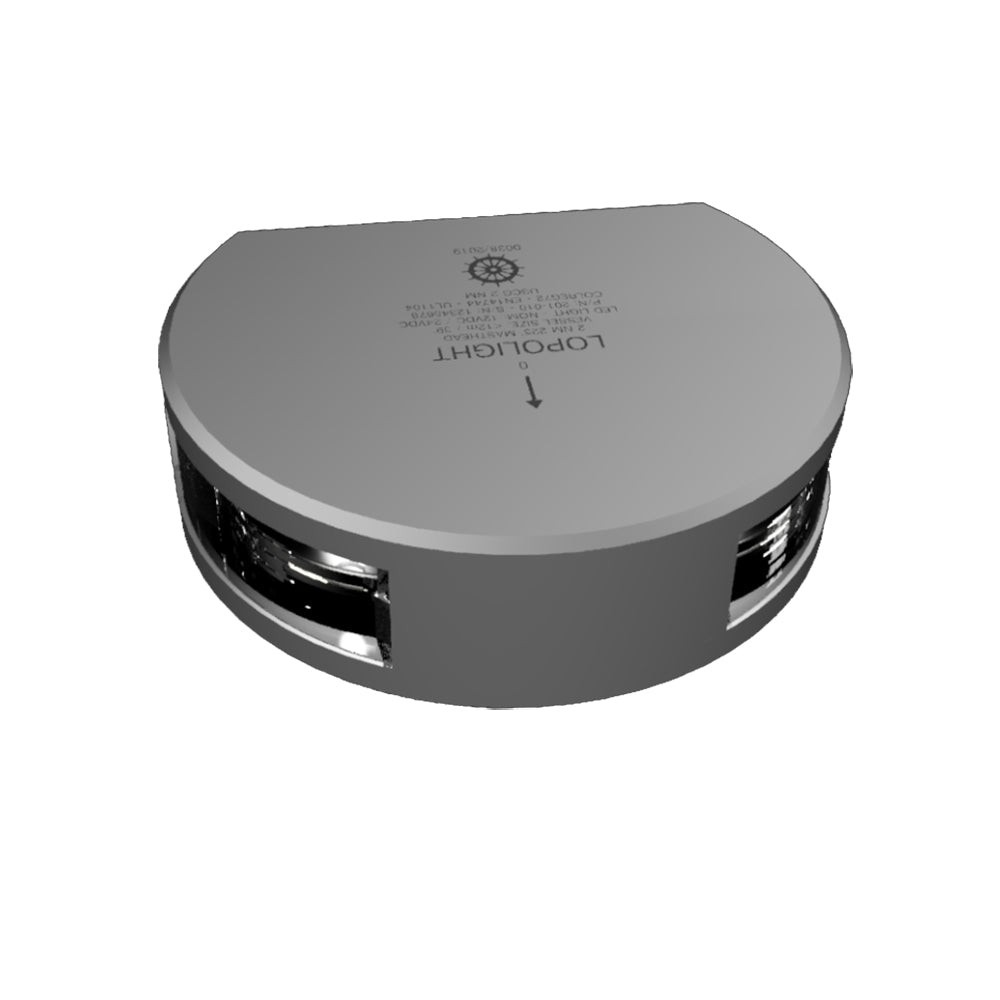

Lopolight 225 Masthead Light - Single - Silver Housing - Vertical Mount [201-010]

225° Masthead Light - Single - Silver Housing - Vertical MountThis LED navigation light consists of a single high-power LED that produces light in the specified angle utilizing a special designed PMMA light guide.The precision machined 6082 aluminium housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within.The interior is completely filled with a special potting resin making it water- and vibration proof.Produced in our in-house manufacturing facility to meet and exceed exacting standards such as EN14744 and UL1104, under a quality management system continuously surveyed by Lloyds Register Quality Assurance.Each light is subjected to final testing for a minimum of 16 hours of continuous operation bringing the total test time beyond 24 hours. This navigation light is in compliance with the following standards: COLREG72 EN14744 IEC 60945 USCG (UL1104) Specifications: Vessel size: <12m (<39.4’) Visibility: >2 nautical miles Intensity: >5,4cd Power consumption: 2,5 Watt; Current: 0,21A @12 VDC - 0,10A @24 VDC Operating voltage: 10 - 32 VDC Number of LEDs: 2 Light colour: White Operating temperature: -25°C to +55°C IP rating: IP68 Mounting: Vertical Specifications: Housing: Silver Lens Color: White Visible Range (Miles): 2nm Voltage - Input Range (Volts): 10-32v LED: Yes Box Dimensions: 4"H x 4"W x 5"L WT: 0.95 lbs UPC: 879343010201
