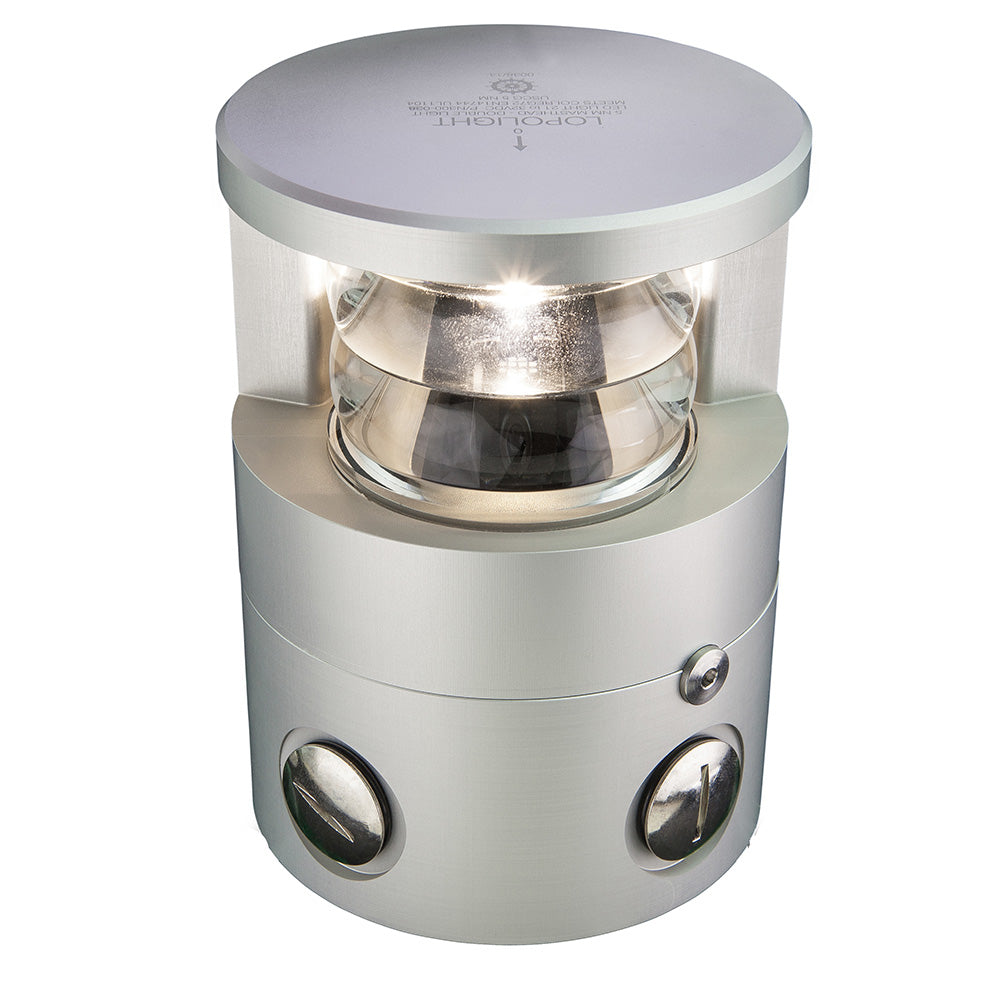

Lopolight 225 Double Masthead Light - 6NM - Silver Housing [300-138]

225° Double Masthead Light - 6NM - Silver Housing The double LED light consists of two (2) individual lights which can be activated separately. One is dedicated as the primary, the other the secondary. The precision machined 6082 aluminum housing with an anodized surface makes the light a rugged and durable housing for the LEDs and electronics contained within. The interior is completely filled with a special potting resin making it water and vibration-proof.Specifications: Light Color: White Dimensions Metric (mm): 92 diameter, 5mm x 128mm Dimensions Imperial (inch): 3.6" diameter x 5" Certification: This Navigation Light is certified by DNV Intensity: >94cd Approved to: COLREG72, EN14744, IEC, 60945, IACS, E10, USCG, ABS, M.E.D., DNV, LR Visibility: 6 Nautical miles Operating Temperature: -25°C to 55°C Mounting: Horizontal Materials: Silver anodized aluminum 25u PMMA lens, A4 stainless steel screws, epoxy, polyurethane Operating Voltage: 20-32VDC EAN: 5704438007086 IP Rating: IP68 Power Draw (W): 13 Connection: Plug connector Current Consumption (mA @ 12VDC): 0 Specifications: Housing: Silver Lens Color: White Visible Range (Miles): 6 Voltage - Input Range (Volts): 20-32 Box Dimensions: 4"H x 6"W x 8"L WT: 3.4 lbs Quick Guide (pdf)
