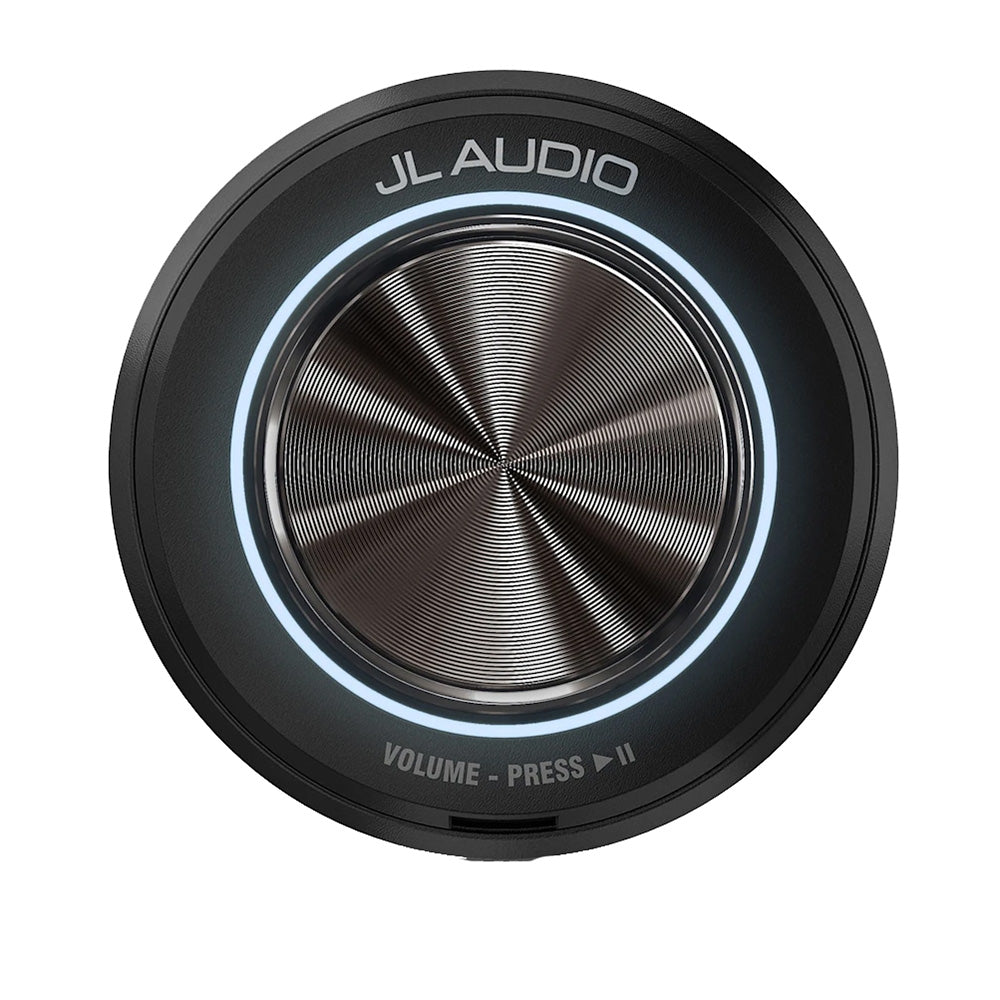

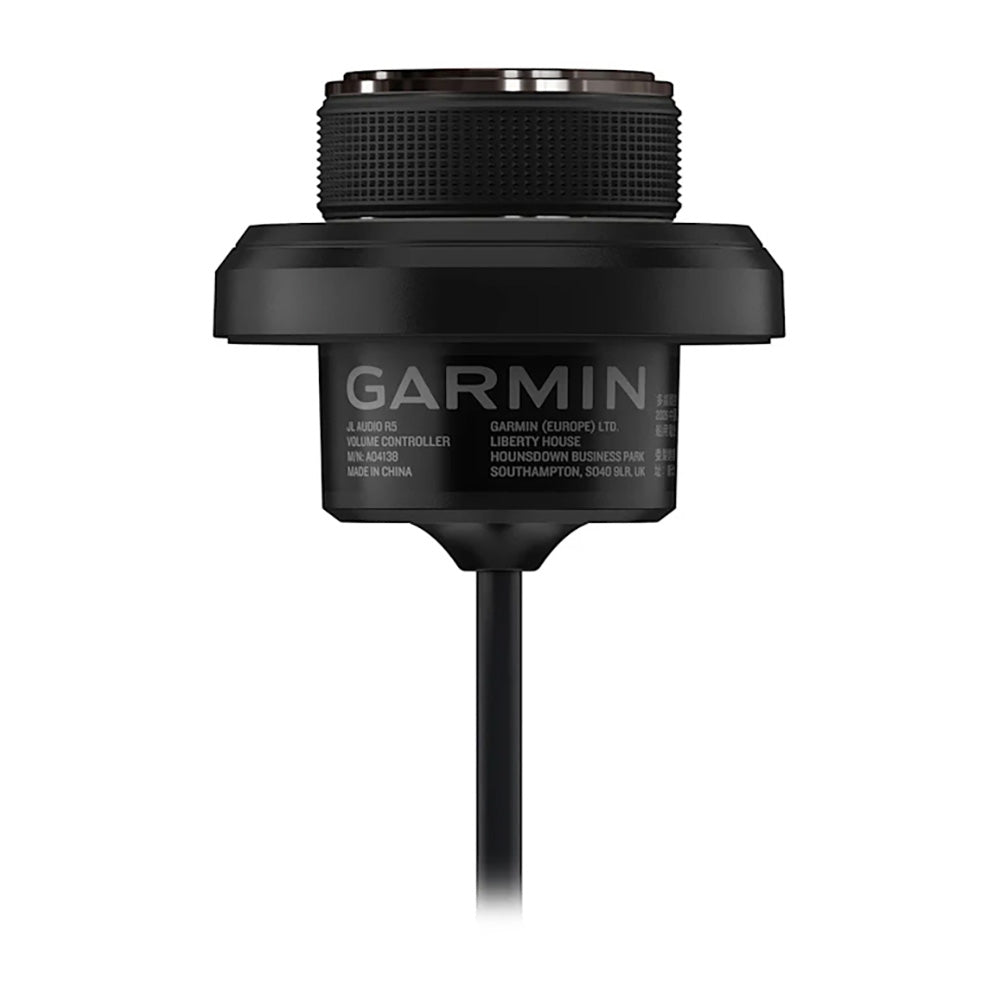

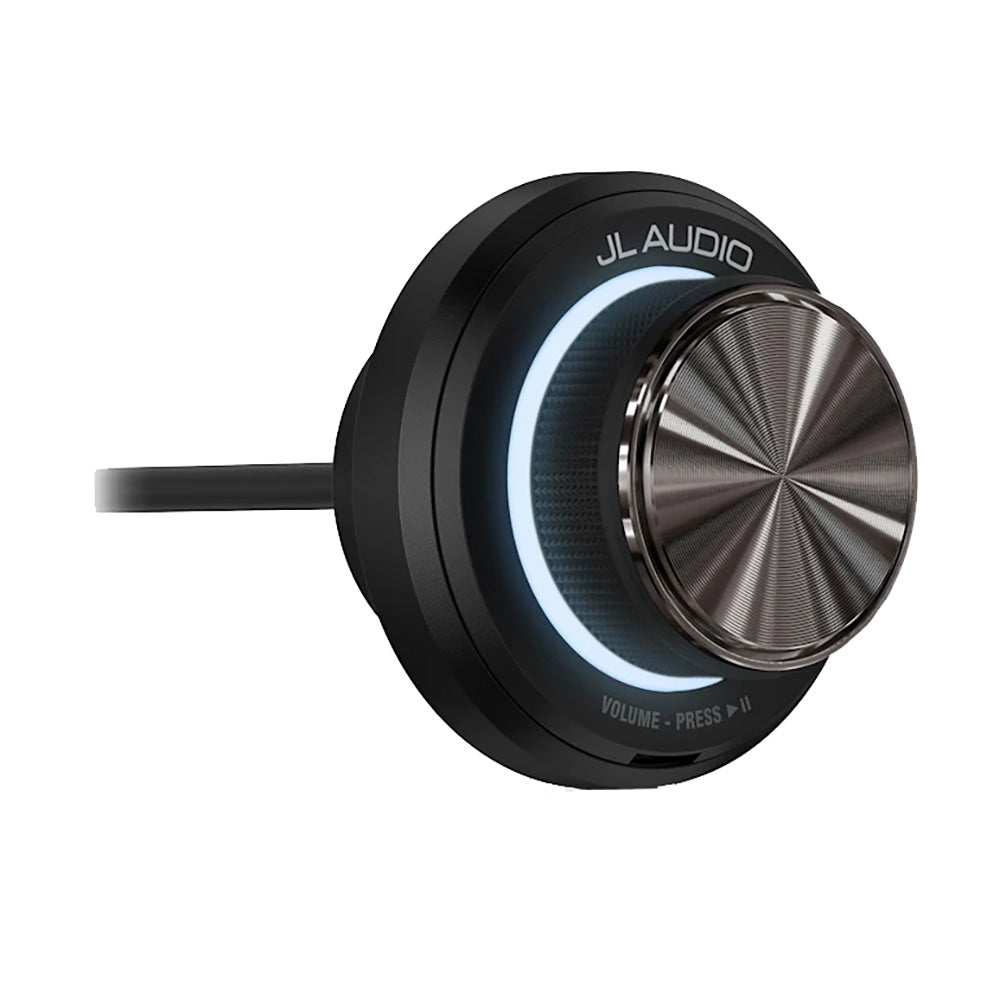

JL Audio R5 Single Stereo Volume Controller [010-04790-00]

R5 Single Stereo Volume ControllerThis easy-to-use volume controller can be front-mounted on your boat’s dash, and it controls all audio zones of a single head unit via a large single knob.Features: LARGE SINGLE-KNOB CONTROL CONNECTS TO YOUR BOAT’S NMEA 2000® NETWORK ADJUSTS ALL AUDIO ZONES OF A SINGLE HEAD UNIT PLAY OR PAUSE WITH THE PUSH OF A BUTTON REQUIRES A SINGLE 1.5-INCH HOLE FOR INSTALLATION IPX7-RATED FOR MARINE ENVIRONMENTS General: Warranty: 1 year Physical dimensions (Height): 2.35" (60 mm) Physical dimensions (Width): 2.35" (60 mm) Physical dimensions (Depth): 2.04" (52 mm) Control surface dust/water rating (when properly installed): IPX7 Operating temperature range: 32° F to 122° F (0° C to 50° C) Current draw (max): 110 mA Power Input: 10.8-16 VDC Compass-safe distance: 3.94" (100 mm) Networking & Connections: NMEA 2000® ports: 1 (Micro-C connector) NMEA 2000® LEN: 2 (100 mA) In The Box: JL Audio R5 single stereo volume controller T-connector for the NMEA 2000® network Two screws Documentation *Not compatible with JL Audio MediaMaster® Source Units
