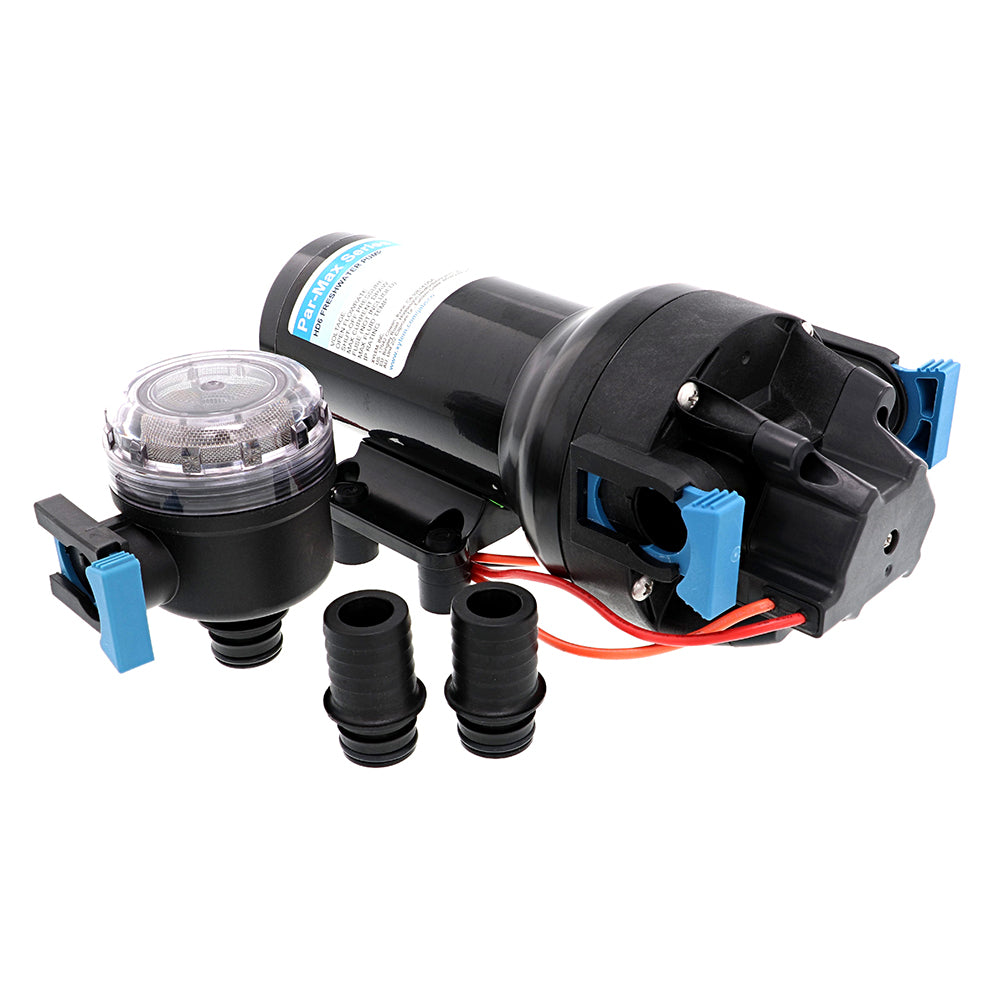

Jabsco Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 60 PSI [P601J-218S-3A]

Par-Max HD6 Heavy Duty Water Pressure Pump - 12V - 6 GPM - 60 PSIHD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Available in configurations up to 6 GPM (23 LPM) and 60 PSI (4.1 BAR), these pumps deliver exceptional performance. Standard models provide good performance in an economical footprint. These configurations are available in 1-3 GPM, perfect for vessels with 1-3 outlets. A plastic housing protects the motors on these units from corrosion. Features: Co-molded diaphragm technology for long life and durability HD models feature heavy duty, motors and cast aluminum lower housings which allow for longlife, even at high pressures Efficient and quiet operation Integrated, sealed pressure switch for on-demand operation Self-priming allows for installation versatility Can run dry without damage Quick connect ports for ease of installation, servicing, and maintenance Vibration dampening mounting feet Equipped with integrated bypass module to reduce cycling and provide smoother flow Specifications: Motor design: Brushed, permanent magnet TENV  Pumphead upper housing material: Glass fiber reinforced polypropylene  Diaphragm: Co-molded TPV  Check valves: EPDM  Max inlet pressure: 30 PSI (2.1 Bar)  Fluid temperature range: 32°F – 140°F (0°C – 60°C)  Dry self-priming capability: 7ft min (2.13m/min)  Certifications: CE, ISO8846, RCM Ingress Protection: IPX6 WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Volts: 12v Max PSI: 60 Gallons Per Minute: 6 GPM Box Dimensions: 6"H x 6"W x 15"L WT: 9 lbs UPC: 671880841986 Brochure (pdf)
