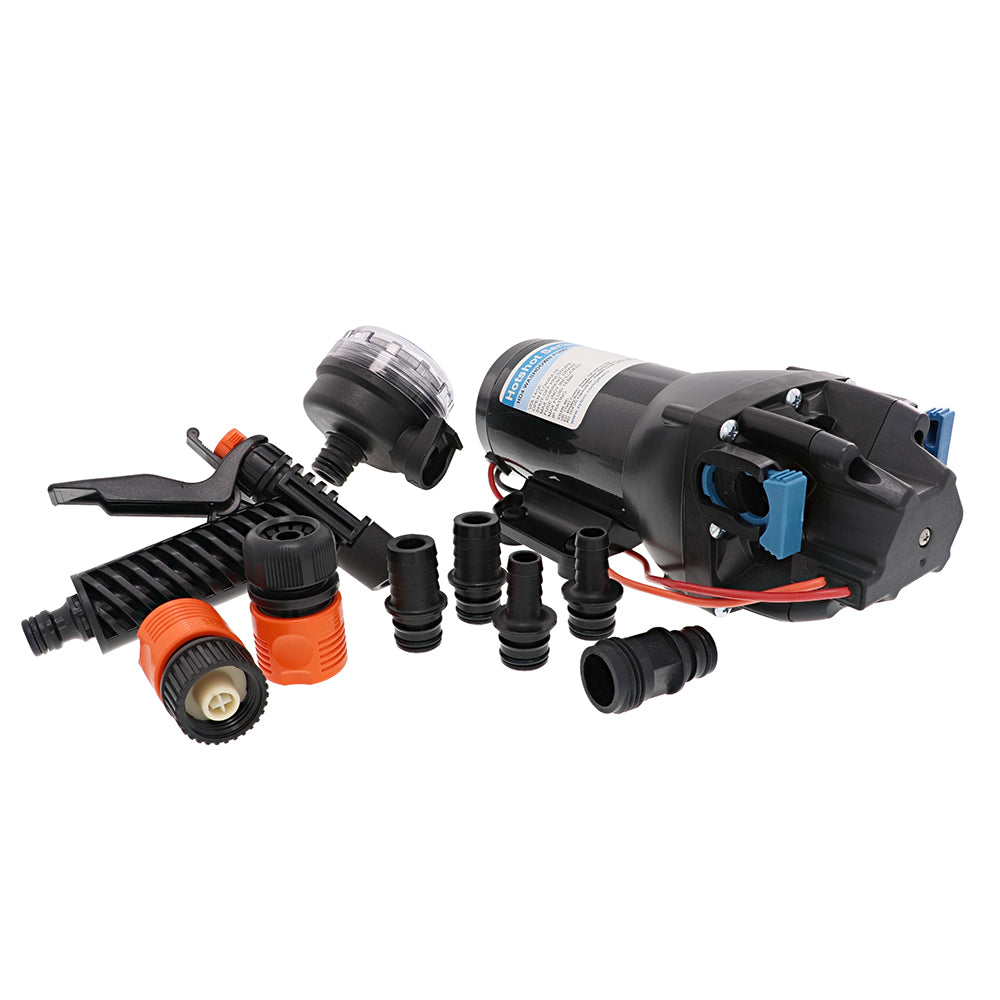

Jabsco HotShot HD4 Heavy Duty Washdown Pump - 12V - 4 GPM - 60 PSI [Q401J-118N-3A]

HotShot HD4 Heavy Duty Washdown Pump - 12V - 4 GPM - 60 PSIYears of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits. HD (Heavy Duty) models include a wider diameter motor with a powder coated shell, cast aluminum endbells and lower housing to improve pressure capability and life. Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion. Features: Co-molded diaphragm technology for long life and durability HD models feature heavy duty, motors and cast aluminum lower housings which allow for long-life, even at high pressures Efficient and quiet operation Integrated, sealed pressure switch for on-demand operation Self-priming allows for installation versatility Can run dry without damage Quick connect ports for ease of installation, servicing, and maintenance Vibration dampening mounting feet Full kit versions available which include 25' (7.6m) hose coil Specifications: Motor design: Brushed, permanent magnet TENV  Pumphead upper housing material: Glass fiber reinforced polypropylene  Diaphragm: Co-molded TPV  Check valves: EPDM  Max inlet pressure: 30 PSI (2.1 Bar)  Fluid temperature range: 32°F – 140°F (0°C – 60°C)  Dry self-priming capability: 7ft min (2.1m min)  Certifications: CE, ISO8846, RCM  Ingress protection: IPX6 Fittings & Accessories: Quick Connect straight hosebarb and GHT fittings. Size varies by model.  90° 20 mesh Quick Connect straine  Trigger nozzle & Quick Connect hose adapters  Kit version includes 25' HoseCoil WARNING: This product can expose you to chemicals including ANTIMONY OXIDE (ANTIMONY TRIOXIDE) which is known to the State of California to cause cancer. For more information go to P65Warnings.ca.gov. Specifications: Max PSI: 60 Volts: 12v Gallons Per Minute: 4 GPM Box Dimensions: 6"H x 8"W x 17"L WT: 8.8 lbs UPC: 671880841917 Brochure (pdf)
