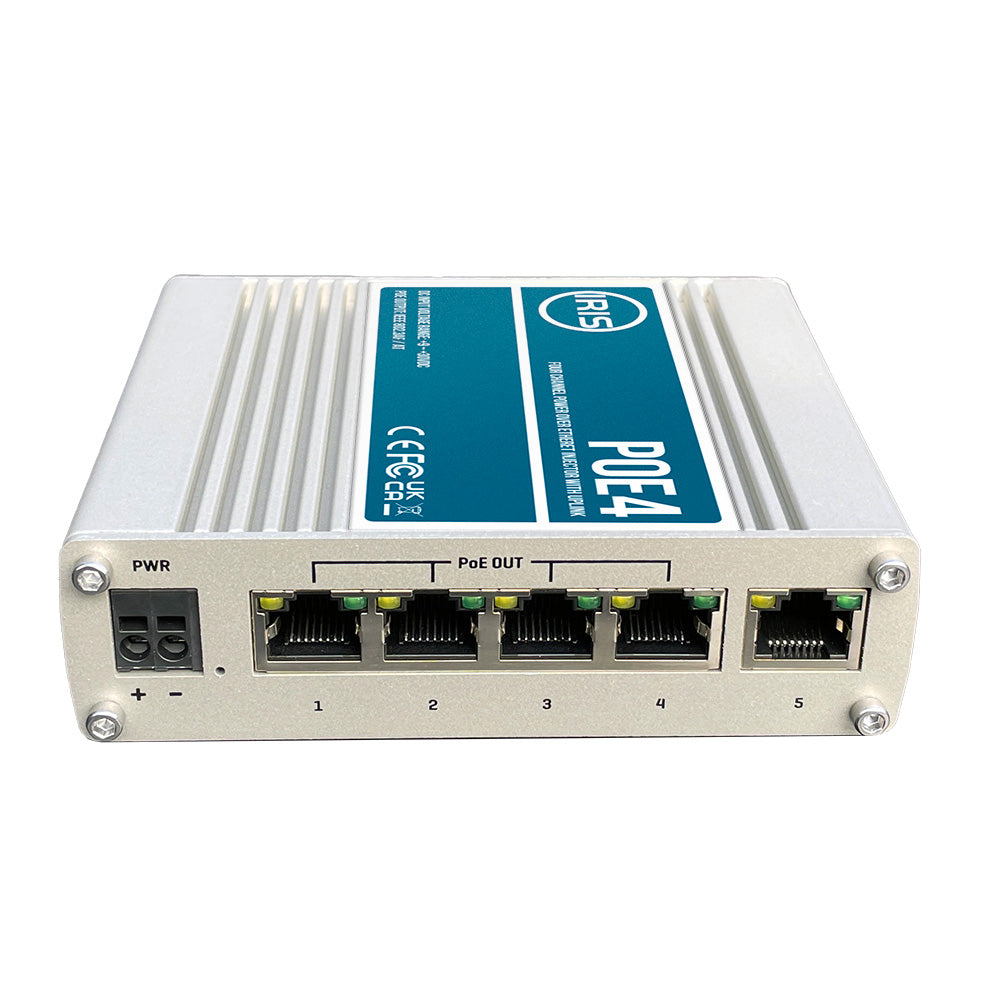

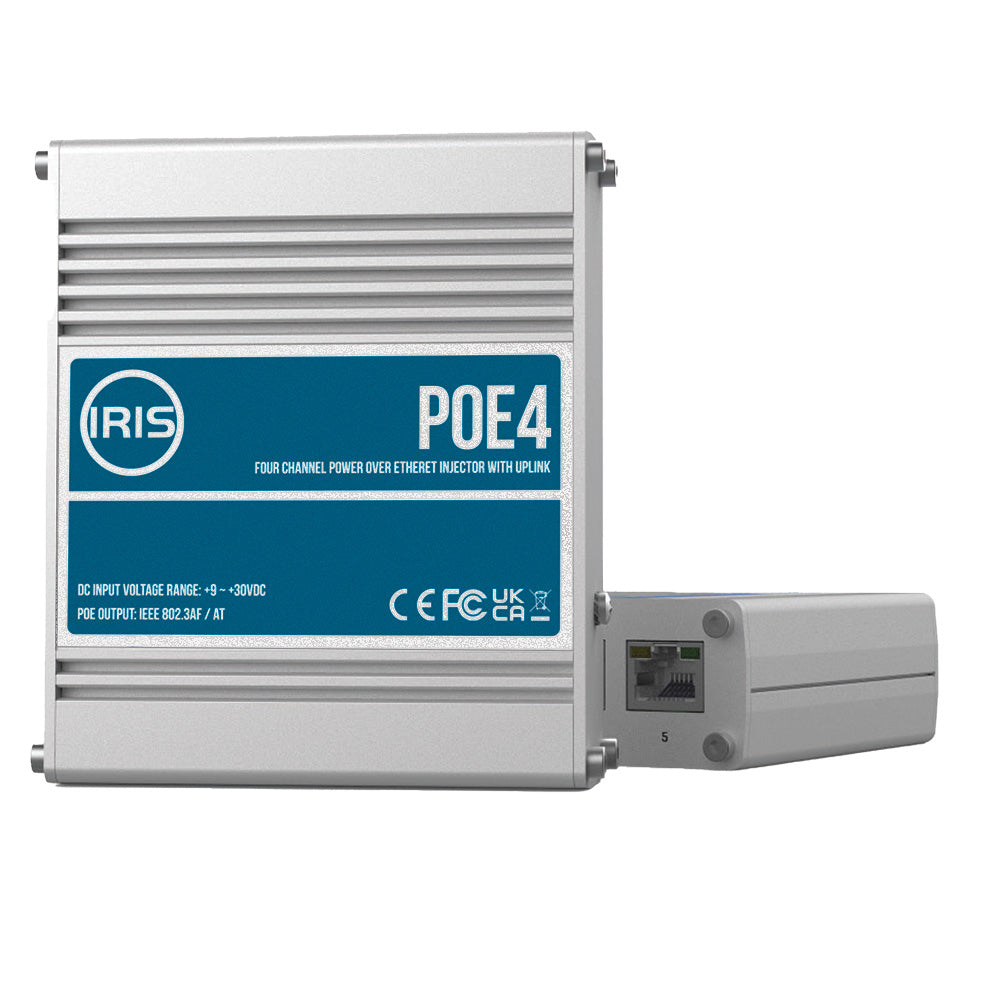

Iris Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af 3at Compliant - 9-30VDC Input - 48VDC Output [POE4V2]

Four Channel Uplink Power Over Ethernet Switch - IEEE802.3af & 3at Compliant - 9-30VDC Input - 48VDC OutputThe new PoE4v2 from Iris Innovations is a four-channel plus uplink power over Ethernet switch that operates over a wide DC input voltage range of 930VDC making it perfect for powering IEEE802.3af/3at devices from battery sources such as boats and vehicles.The PoE4v2 outputs 48 VDC to your PoE device with a power budget of 60W in total and up to 30W per port, providing power to up to 4 devices at 15W each, 2 devices at 30W each, or 1 device at 30W, and further 2 devices at 15W.The unit features a passive uplink port to enable connections to other network switch equipment, routers, or modems.The PoE4v2 simplifies your installation as only a single network cable is required to connect and power your devices, reducing cost and adding convenience.Features: Compact and robust housing Wide input voltage range of 930VDC Perfect for boats and vehicles 60W power budget IEEE802.3af / 3at compliant Up to 30W per channel Plug and play operation - no configuration required 48VDC PoE output voltage to your devices Provides power to devices up to a 100-meter cable length Simplifies installations Specifications: Weight & Dimensions: 0.350 Kg / 115 mm x 32 mm x 95 mm Material: Aluminium, soft anodized PoE Ports / Standard: Ports 14 IEEE802.3af / 802.3at + 1 Uplink Port (non PoE) Total PoE Budget: 60W across 4 PoE Ports Maximum Cable Length: 100 Meters Approvals / Standards CE, UKCA, FCC, IC, REACH, RoHS, WEEE / EN IEC 62368:12020+A11:2020 EN60945:2002 Section 9 & 10 Input Voltage Range: 9 30 VDC Output Voltage: 48 VDC Power Consumption Idle: 0.8W / Max: 2.2W / PoE Max: 106W Environmental: IP30 - Install in a dry dust free environment. Do not expose to moisture. Quick Guide (pdf)Owner's Manual (pdf)
