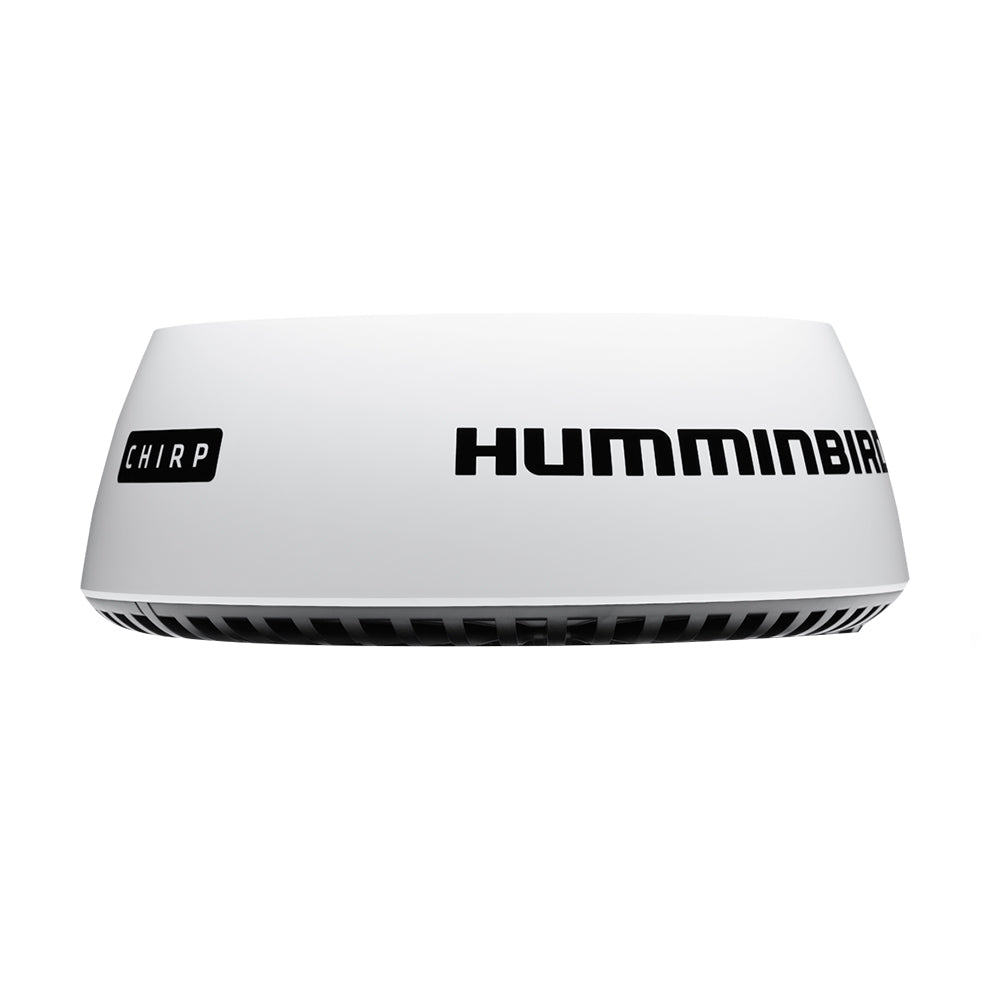

Humminbird HB2124 CHIRP Radar [750013-1]

HB2124 CHIRP RadarCompatible with select networking HELIX models and ONIX, Humminbird CHIRP Radar features CHIRP pulse compression, setting a new standard for compact solid state radar. It delivers superior RADAR imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify birds and floating obstacles for clues to where gamefish are located. You can also track weather and vessels with amazing definiton. Features: Antenna Dimension - 21" Enclosed Dome Antenna Type - Patch Array Peak Power Output - 20W Transmit Frequency - 9354 to 9446 MHz Beam width (nominal) - 4.9° Horizontal and 20° Vertical Input Voltage - 12 or 24 VDC (Miniumum - 10.8 Volts, Maximum - 31.2 Volts) Networking - Ethernet Maximum Range Scale - from 1/16 to 24 nautical miles Power Consumption - Transmit mode - 17W; Standby Mode - 7W; Sleep Mode - 2W Duplexer - Circulator Pulse Widths @ 3 dB - 40 ns to 14.7µs CHIRP Lengths - 400 ns to 20µs CHIRP Bandwidth - Up to 32 MHz IF Bandwidth - 26 MHz Noise - Less than 4 dB Polarization - Horizontal Waterproofing - IPX6 Weight - 12.3 lbs (5.6 kg) Compatibility Networking HELIX models and all ONIX models Specifications: Array Size (Inches): 21" Box Dimensions: 12"H x 24"W x 24"L WT: 21.2 lbs UPC: 082324050169 Owner's Manual (pdf)
