Harken 45mm Single Element Block w/Swivel [6230]

Harken 45mm Single Element Block w/Swivel [6230]

45mm Single Element Block with SwivelElement blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.Specifications: Sheave: 45mm / 1-3/4in Length: 102mm / 4in Weight: 103g / 3.6oz Shackle pin: 6mm / 1/4in Maximum line: 12mm / 1/2in Maximum working load: 700kg / 1543lb Breaking load: 1400kg / 3086lb
SKU: PM-78752
Availability: 2 In Stock
$42.80
$42.80
Subtotal: $42.80
10 customers are viewing this product
Harken 45mm Single Element Block w/Swivel [6230]

Harken 45mm Single Element Block w/Swivel [6230]

$42.80
Harken 45mm Single Element Block w/Swivel [6230]

Harken 45mm Single Element Block w/Swivel [6230]

$42.80
Description

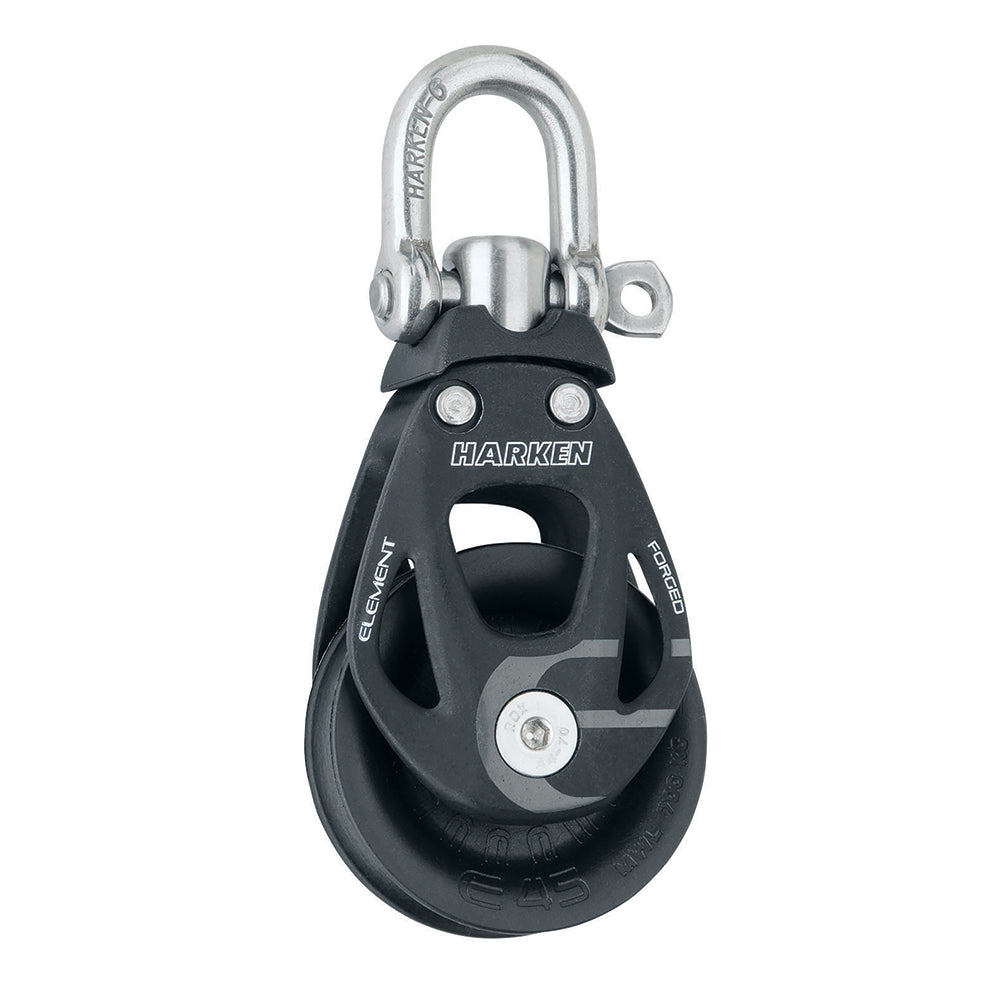

45mm Single Element Block with Swivel

Element blocks introduce sideplates that combine forged aluminum and compound curves for strength. They are simultaneously contemporary and very robust. Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing. So size for size, Element is priced significantly lower, than our previously least expensive blocks.

Sideplates are hardcoat-anodized to resist corrosion. A tough composite bearing sheave resists corrosion for a long service life.

Specifications:

  • Sheave: 45mm / 1-3/4in
  • Length: 102mm / 4in
  • Weight: 103g / 3.6oz
  • Shackle pin: 6mm / 1/4in
  • Maximum line: 12mm / 1/2in
  • Maximum working load: 700kg / 1543lb
  • Breaking load: 1400kg / 3086lb
