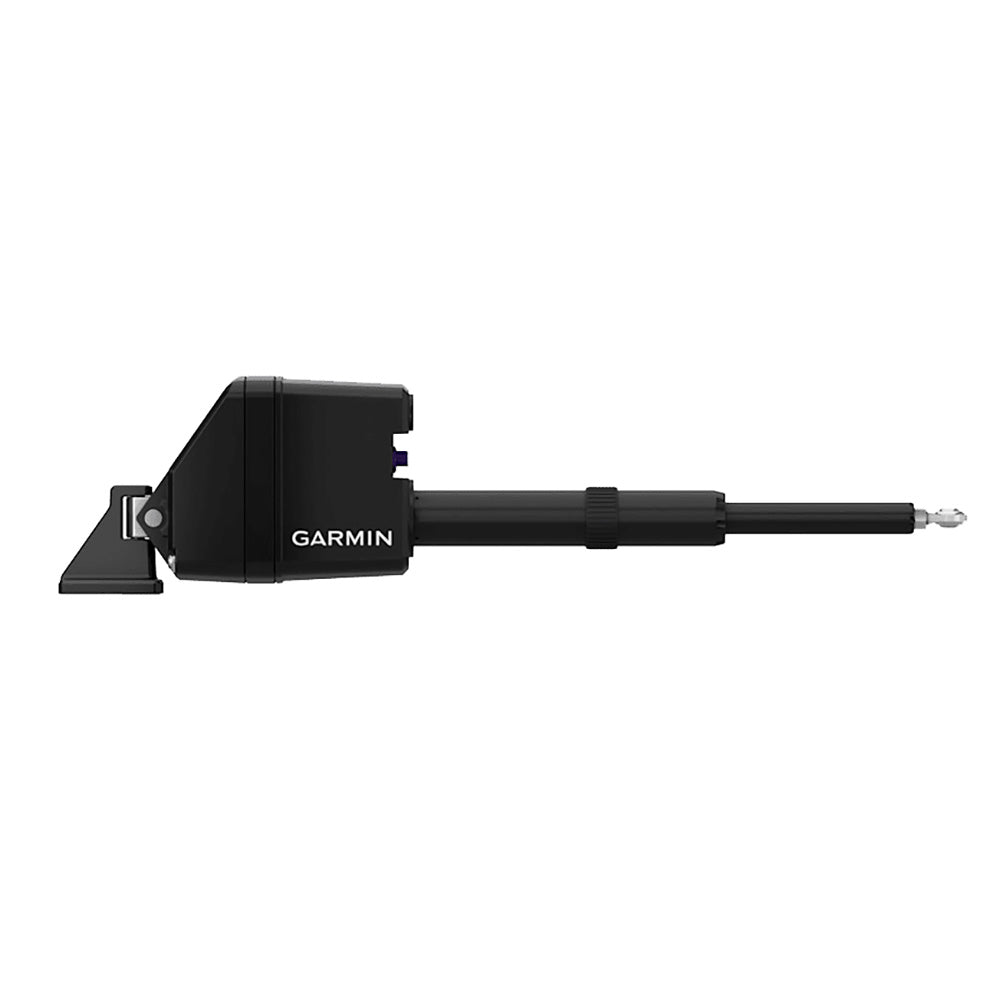

Garmin SmartDrive Autopilot Actuator f/Sailboats [010-02794-12]

SmartDrive™ Autopilot Actuator for SailboatsThe Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with a built-in ECU. Get precise rudder awareness with minimal mechanical wear.Features: BUILT-IN ECU FULLY ENGINEERED AND MADE BY GARMIN PREMIUM AUTOPILOT PERFORMANCE WITH MAXIMUM THRUST UP TO 1,050 LBS CONTACTLESS RUDDER POSITION SENSOR FOR SUPERIOR RELIABILITY AND FEWER MOVING PARTS SIMILAR FORM FACTOR TO OTHER ACTUATORS ALLOWS EASY REPLACEMENT FOR RETROFIT USER-ADJUSTABLE MAX FORCE OUTPUT SUITS A WIDE RANGE OF VESSELS MORE ACCURATE TACK AND GYBE WITH ADJUSTABLE SPEED, AUTO RESPONSE, AND IMPROVED UPWIND HOLD FITS YOUR VESSELThe brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).SMARTDRIVE ACTUATORThis product is the first sailboat autopilot to use a brushless DC motor with a built-in ECU to provide superior performance and simplified installation.Specifications: Drive unit type: Mechanical linear Maximum boat displacement: 33,000 lbs (15,000 kg) Stroke length: 12" (300 mm) Maximum thrust (adjustable software setting): High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg) Dimensions, including base, mid-stroke (WxHxD): 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm) Weight: 19.8 lbs (9 kg) Supply voltage: 10 to 32 Vdc Average typical current at 12 V: 0.8 to 5 A, depending on conditions Peak momentary current: 25 A Lock-to-lock time: 11 seconds Operating temperature: -20° to 55° C (-4° to 131° F) Water ingress: IPX7 In The Box: SmartDrive™ actuator Mounting hardware Documentation Brochure (pdf)
