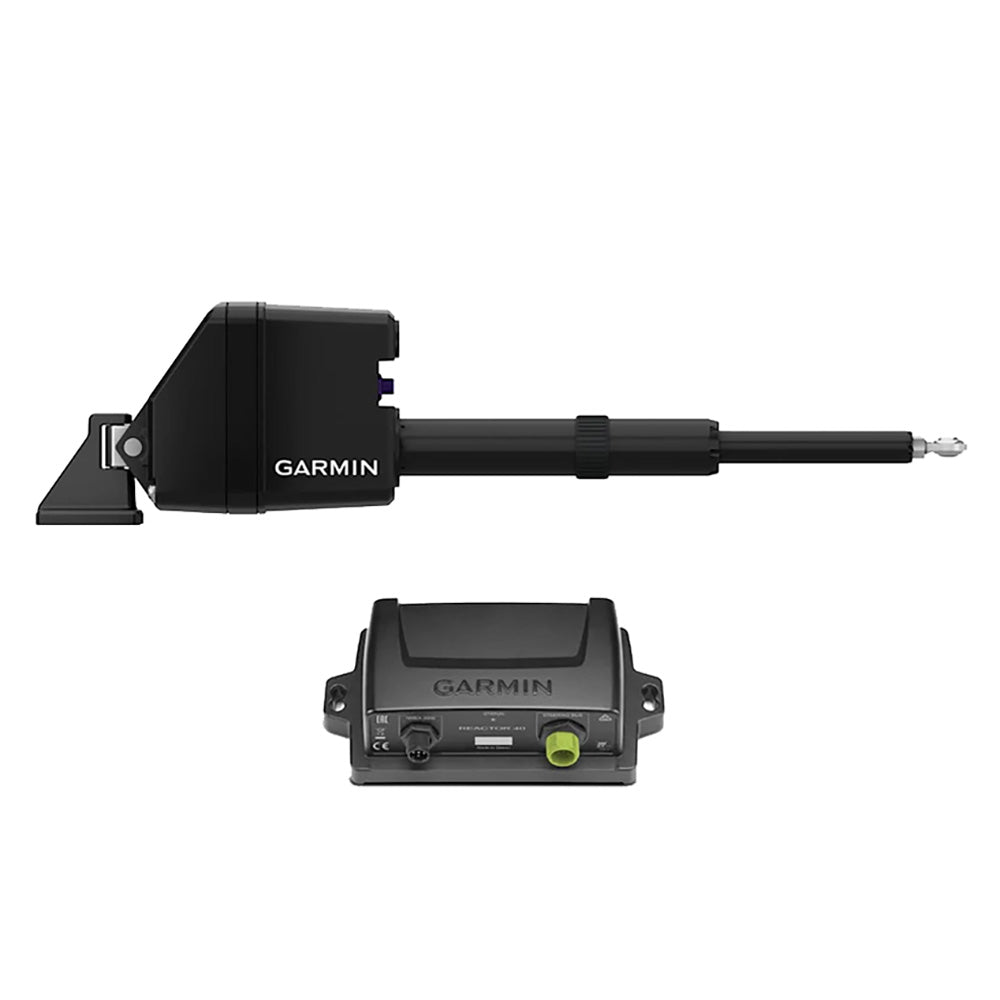

Garmin Reactor 40 Sail Corepack w/SmartDrive - No Display [010-00705-97]

Reactor™ 40 Sail Corepack with SmartDrive™ - No DisplayThe Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with built-in ECU. Get precise rudder awareness with minimal mechanical wear.Course Computer Unit (Reactor™ 40)Our CCU is the brain of the Reactor 40 autopilot system, containing sensory equipment used to determine heading and rate of turn. Connect the CCU to the NMEA 2000® network to communicate with your GHC™ 20 and optional NMEA 2000-compatible devices.Specifications: Dimensions: 3 19/32" diameter (91.4 mm) Weight: 5.6 oz (159 g) Temperature range: From -15 C to +55 C (5 F to 131 F) Case material: Fully gasketed, high-impact plastic, waterproof to IEC 529 IPX7 standards CCU cable length: 9.5 ft (3 m) NMEA 2000® power input: 9-16 V NMEA 2000 LEN: 3 (150 mA) SmartDrive™The Reactor 40 sail corepack with SmartDrive actuator is the first sailboat autopilot to use a brushless linear actuator with built-in ECU. Get precise rudder awareness with minimal mechanical wear.FITS YOUR VESSELThe brushless linear actuator is suitable for a wide range of sailboats and catamarans (up to 45 feet/maximum 33,000 lbs displacement).SMARTDRIVE ACTUATORThis product is the first sailboat autopilot to use a brushless DC motor with a built-in ECU to provide superior performance and simplified installation.SOLID-STATE 9-AXIS AHRSYou can mount the Reactor 40 CCU nearly anywhere, in any orientation.WATER CONDITION REACTIONSThis autopilot reacts to sea conditions so you can sail with confidence — when pitching or rolling.CALIBRATE WITH EASEReactor 40 makes commissioning and calibrating quick and easy.Specifications: Drive unit type: Mechanical linear Maximum boat displacement: 33,000 lbs (15,000 kg) Stroke length: 12" (300 mm) Maximum thrust (adjustable software setting): High: 1050 lbs (476 kg), Medium: 600 lbs (272 kg), Low: 400 lbs (181 kg) Dimensions, including base, mid-stroke (WxHxD): 4.5" x 7.75" x 27.6" (114 x 197 x 700 mm) Weight: 19.8 lbs (9 kg) Supply voltage: 10 to 32 Vdc Average typical current at 12 V: 0.8 to 5 A, depending on conditions Peak momentary current: 25 A Lock-to-lock time: 11 seconds Operating temperature: -20° to 55° C (-4° to 131° F) Water ingress: IPX7 In The Box: Reactor™ CCU (course computer unit) SmartDrive™ actuator Buzzer Power cables 2 m backbone/drop cable, T-connectors, power cable, and terminators for the NMEA 2000® network Mounting hardware Documentation Brochure (pdf)
